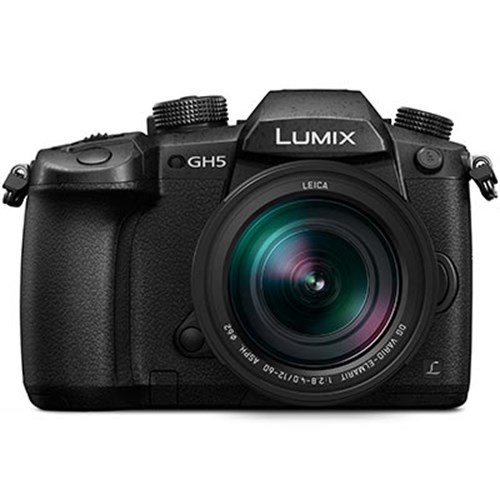

Capable of 6K Photo and 4K recording, the Panasonic Lumix DMC-GH5 with 12-60mm f/2.8-4.0 Leica DG Vario-Elmarit Lens is a new upgrade to the popular GH4, offering exceptional performance for professional photographers and videographers alike. Built around a new 20.3-megapixel sensor and Venus Engine image processor, the flagship GH5 is capable of recording 4K 60p/50p footage and 4:2:2 10-bit 4K video to UHS-II compatible dual SD card slots. Like its predecessor, the GH5 is fully weather-sealed and offers 12fps continuous shooting
Firmware Update V2 - September 2017
Please note: To record in 400Mbps you need to use either RP-SDZA128AK or RP-SDZA64GAK SD cards.
For more information and to download, visit the Panasonic website here.
- Compatibility with LUMIX Tether software
- Improved autofocus performance
- Improved performance for 6K photo and 4K photo
- Additional ALL-Intra video recording mode
- 4K HDR video recording
- Enchaned Anamorphic video recording mode
- Improved body Image Stabiliser
- Stuart Dennis takes a closer look at the Panasonic Lumix GH5 and reveals why filmmakers should be excited about it.
View the full article here... »
- Matt Golowczynski takes a closer look at the new Panasonic Lumix GH5, the latest in the GH series of video-centric mirrorless cameras.
View the full article here... »
Key Features: Panasonic Lumix DMC-GH5 with 12-60mm f/2.8-4.0 Leica Lens
- Designed for emerging photo/video-hybrid creators
- Equipped with LEICA DG VARIO-ELMARIT 12-60mm f/2.8-4.0 Lens
- 20.3 megapixel Digital LIVE MOS sensor (no low-pass filter)
- Dual IS Mark II system, up to 5EV stops compensation
- New Venus processing engine
- Records 4K in 60p/50p and 4:2:2 10-bit 4K video
- 6K (30fps) and 4K (60fps) Photo Mode
- 12fps continuous shooting (9fps AF-C)
- 3.2-inch touchscreen LCD
- Dual SD card slots (UHS-II compatible)
- Live View Finder with 0.76x magnification (35mm equiv.)
- Magnesium-alloy, weather-reistant body
- Bluetooth and Wi-Fi connectivity
Panasonic Lumix GH5 | Hands-on preview
Leica DG Vario-Elmarit 12-60mm f/2.8-4.0 lens - perfect for video and stills
The new LEICA DG VARIO-ELMARIT 12-60mm / F/2.8-4.0 ASPH. / POWER O.I.S. (35 mm camera equivalent: 24-120 mm; 5x zoom range), a new standard length zoom digital interchangeable lens, is the first lens to be introduced from Panasonic’s LEICA DG VARIO-ELMARIT F/2.8-4.0 series. It fully covers a variety of daily shooting situations, from dynamic landscapes to portraits even in low-lit situations or providing a beautiful defocus effect by taking advantage of the F/2.8-4.0 high-speed performance. In addition to the wide aperture, the POWER O.I.S. (Optical Image Stabilizer) effectively compensates for blurring, making it easy to shoot - even in dim lighting. The lens works with the Dual I.S. (Image Stabilizer), 5-axis Dual I.S., and 5-axis Dual I.S. system when mounted on an applicable Panasonic LUMIX G camera.
Unprecedented picture quality in the history of LUMIX cameras
20.3-megapixel Digital LIVE MOS sensor
The LUMIX GH5 is able to realise high-quality images with real-to-life detail through excellent resolution, image rendering and colour reproduction. Its new Digital LIVE MOS Sensor increases the pixel count by 25% compared to the GH4, from 16.05 to 20.3 megapixels, while also removing the low-pass filter.
New image processor Venus Engine
The camera also comes with a new image processor Venus Engine, which achieves improvement especially in Natural Texture Expression. The engine’s Multi-pixel Luminance Generation renders clear, sharp images by referring to a 9x larger area of pixel information during the de-mosaic process for precise detail reproduction. With Intelligent Detail Processing, the characteristic of every single pixel is analysed to detect whether the pixel is located at a flat, detail or edge part of the picture. Optimum processing according to the characteristic of each pixel is then applied. This results in high-precision yet natural images with stunning detail suppressing false colours at its edges.
3 Dimensional Colour Control
Also, 3 Dimensional Colour Control detects not only hue and saturation, but also brightness, and applies optimum control according to the value of each factor. This achieves rich colour reproduction from dark to bright parts of the image. The conventional Multi Process NR (Noise Reduction) is upgraded to High Precision Multi Process NR. It boasts 4x the noise identification accuracy compared to the previous engine and preserves details even after the noise reduction process. As a result, photos can be clearly shot even at high sensitivity ISO values of up to 25600.
5-axis Dual Image Stabilisation
The LUMIX GH5 also incorporates the 5-axis Dual I.S. (Image Stabilizer) 2 , which suppresses blurring in more powerful and advanced ways for both photo and video recording, including 4K video. Combining an O.I.S. (Optical Image Stabilizer, 2-axis) and B.I.S. (Body Image Stabilizer, 5-axis), it compensates for larger movements which were conventionally uncontrollable. The LUMIX GH5’s high-precision gyro sensor controls both the O.I.S. and B.I.S. compensation by studying the focal length and shooting conditions, making it possible to use a max. 5-stop slower shutter speed . This is highly beneficial not only for wide-angle and telephoto shots, but also in adverse situations, such as at night-time or when shooting with one hand.
The world’s first CSC camera that meets professional quality standards.
Records 4K 60p/50p ultra high-definition, smooth video recording
The LUMIX GH Series created an epoch-making industry sensation by achieving outstanding video recording performance with advanced features that meet the needs of professional quality levels and standards. With the LUMIX GH5, the signal readout speed has been accelerated by max 1.7x in the new Digital LIVE MOS Sensor, and the new Venus Engine processes signals at max 1.3x higher speed. This synergy realises 4K 60p/50p ultra high-definition, smooth, video recording for the first time in a compact system camera. It is also capable of internal 4:2:2 / 10-bit video recording, which is the colour subsampling commonly used for film production, for even more faithful colour reproduction.
High-sensitivity MOS Sensor
The high-sensitivity MOS Sensor and Venus Engine effectively suppress rolling shutter distortion and realise high-speed readout of full digital signals. This ensures an outstandingly high image quality for every single frame. In addition, the focal length in video recording is kept the same as that in photo shooting (no cropping).
Choose from multiple formats and frame rates
Users can freely choose between MOV, MP4, AVCHD Progressive and AVCHD formats at a variety of frame rates, and there is no recording time limit for both FHD and 4K video. Professional users working globally can set the system frequency to 59.94Hz (23.98Hz), 50.00Hz or 24.00Hz.
Cinelike D and Cinelike V
While ‘Cinelike D’ and ‘Cinelike V’, which have similar gamma setting characteristics for film production, are available in Photo Style for video recording, the LUMIX GH5 also provides ‘Like 709’ for compatibility with HDTV. A paid software upgrade to support V-LogL video recording is also available.
Waveform monitor and vector scope
In response to requests from professional users, the LUMIX GH5 comes with a Waveform Monitor and Vector Scope. It also embeds SMPTE-compliant Time Code either in Rec Run or Free Run count-up methods, which makes it easy to synchronise multiple video footage or sound sources in the post production workflow. Luminance levels can be selected between 64-1023 / 64-940 / 0-1023 (10-bit). Synchro Scan mode suppresses flicker and Colour Bars (SMPTE / EBU / ARIB Standard) are also available.
Panasonic LUMIX GH5 Product Overview
New AF system with advanced DFD technology never misses a once-in-a-lifetime moment
Newly improved Depth from Defocus and Contrast AF technology
The LUMIX GH5 comes with a newly improved Depth from Defocus and Contrast AF technology, which not only calculates the distance to the subject by evaluating 2 images with different sharpness levels, but also analyses the form, size and even motion of the subject comprehensively. Thanks to the new Venus Engine, the time for measuring the distance to the subject is 6x faster, while factorising the distance into in-plane or in-depth is 2x faster.
High-speed AF of approx. 0/05 seconds and 12 (AFS) / 9 (AFC) fps burst shooting
The speed of sensor drive during auto focusing in photo shooting mode has been increased to 480 fps, which is 2x faster than that of the GH4. Consequently, the LUMIX GH5 realises ultra-high-speed AF of approximately 0.05 sec and 12 (AFS) / 9 (AFC) fps high-speed burst shooting using a mechanical shutter in full resolution. By analysing every single frame precisely, it achieves a maximum 200% higher precision frame detection with minimum motion detection error for higher tracking tolerance against moving subjects.
225 focus points
For even more precise focusing, the number of focus areas has been increased from 49 to 225. Users can create a group of focus areas depending on the composition and can control it easily with a new joystick located on the thumb position, without taking your eyes off the subject. This is possible even when using the LVF or releasing the finger off the shutter button.
Post Focus and Focus Stacking function
If focus is not exactly as the user intended when the shutter is pressed, the LUMIX GH5’s Post Focus function enables users to select the specific focus point even after shooting – particularly helpful in situations like macro shooting where severe focusing is required. In addition, the camera also features a Focus Stacking function. As taking a single macro photo with specific areas in focus can sometimes be difficult, Focus Stacking enables users to take multiple images of the same frame with different focus points. You can then combine them into one image with the defocus as you like.
6K/4K Photo Mode
The LUMIX GH5’s new 6K PHOTO function makes it possible to capture unmissable moments at 30 fps by extracting the frame with the best timing out of the 6K burst file (in 3:2 or 4:3 aspect) to save as an approximately 18-megapixel equivalent high resolution photo. 4K PHOTO has also been upgraded enabling 60 fps high speed capture in approximately 8-megapixel equivalent resolution. In 6K/4K PHOTO, 3 exclusive modes are available to choose from depending on the situation; 6K/4K Burst, 6K/4K Burst (Start/Stop) and 6K/4K Pre-burst. By compensating the signal information between the frames, the Venus Engine makes it possible to apply Post Recording Refinement over the pictures to correct distortion and reduce noise when playing back or cutting images out of the 6K/4K burst file. As a result, the picture quality of 6K/4K PHOTO shot at high shutter speed in high sensitivity or those shot in panning are dramatically improved.
6K sample images by Ross Greive
High mobility in rugged design for heavy field use
Strong magnesium-alloy construction
To be tough enough to withstand even heavy field use, the LUMIX GH5’s main structure is composed of a magnesium alloy, full die cast front/rear frame. Secure construction and the sealing of every joint, dial, and button makes the camera not only splash/dust-proof, but also freeze-proof down to -10 degrees Celsius.
Dual SD memory card slots
The LUMIX GH5 is equipped with a double SD Memory Card slot compatible with high-speed, high capacity UHS-II for the first time in the LUMIX digital cameras. Users can flexibly choose the recording method either in Relay Rec, Backup Rec or Allocation Rec.
Large Live View Finder and 3.2" free-angle rear screen
The LUMIX GH5 has a large LVF (Live View Finder) with a stunningly high magnification ratio of approximately 1.52x / 0.76x (35mm camera equivalent). The high-precision, high-speed OLED display features 3,680K-dot high resolution and 100% field of view. Adopting a static-type touch control system, the 3.2-inch free-angle rear screen in 3:2 aspect with 1,620K-dot high resolution achieves approximately 100% field of view.
Finally, the shutter unit is durable for approximately 200,000 releases.
Expandability, optional accessories, other features
- The LUMIX GH5 integrates Bluetooth 4.2 and Wi-Fi® 5GHz (IEEE 802.11ac) connectivity to offer a more flexible shooting experience and instant image sharing with easy operation.
- The LUMIX GH5 is compatible with the new Battery Grip DMW-BGGH5. By using 2 batteries, one in the camera and the other in the grip, the DMW-BGGH5 extends the battery life for longer time shooting.
- The optionally available microphone adaptor DMW-XLR1 is a plug-in type adaptor for XLR microphone to record high quality stereo sound.
- To save power, the camera automatically enters sleep mode after detecting the eye is off the LVF sensor. Various shutter systems are available with the LUMIX GH5: A mechanical shutter with maximum 1/8000 sec, an electronic-first curtain shutter with maximum 1/2000 sec which can be used with flash while suppressing the shutter shock, and an electronic shutter without shutter shock with maximum 1/6000 sec. Firmware updates will add: Full HD 4:2:2 10bit video recording capability (scheduled for April 2017); 400Mbps 4:2:2 10bit All-Intra video recording in 4K 30p/25p/24p; Full HD, high resolution video recording in Anamorphic mode; Hybrid Log Gamma in Photo Style mode which enables popular 4K HDR video recording and USB tethering (all scheduled for second half of 2017).
