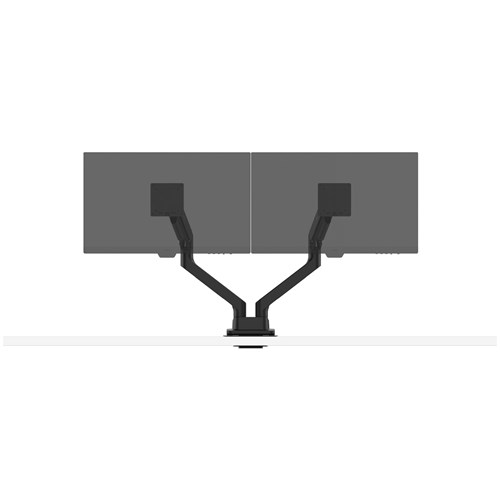

The BenQ BDH01 Dual Ergo Arm is a dual-monitor arm for two 43 to 89 cm displays, supporting loads of 2 to 20 kg per arm. It features a gas-spring structure that lets each screen rise, extend, tilt, and rotate, all while the reinforced desk plate spreads pressure across thinner or delicate surfaces, preventing marks on the desktop.
BenQ BDH01 Ergo Arm Key Features:
- Dual-monitor arm supports two 43 to 89 cm displays
- 2 to 20 kg capacity per arm can handle even heavier screen setups
- Gas spring structure keeps monitors secure and steady during height adjustments
- A 70 cm maximum height allows comfortable screen positioning
- 57 cm arm extension pulls the displays closer when needed
- Tilt range from 50° to -20° allows for precise viewing angle adjustments
- 180° screen rotation supports landscape and portrait positioning
- 75 x 75 and 100 x 100 VESA patterns fit common displays
- Reinforcement plate spreads pressure across delicate or thin work surfaces
- Top-mounted clamp and grommet fittings suit different desk types
- Integrated cable management routes display cables along the arm
- Quick-release VESA plate for rapid screen attachment
FAQs:
What monitor sizes does the BenQ BDH01 support?
It supports two monitors from 43 to 89 cm, with each arm handling displays weighing between 2 and 20 kg. Larger monitors will reduce the adjustment range, so the screens need enough spacing to avoid touching during movement.
Can the BenQ BDH01 be used with glass or delicate desks?
Yes. The included steel reinforcement plate spreads the pressure from the mount across a wider area of the tabletop. The plate reduces the risk of scratches, cracks, or deformation on thinner, glass, MDF, honeycomb or other delicate desk surfaces.
What mounting options are included?
The arm can be fitted using either a top-mounted C-clamp or a grommet mount. Without the reinforcement plate, it suits tabletops from 1.7 to 5 cm thick; with the reinforcement plate, it suits tabletops from 1.2 to 4.5 cm thick.
How much movement does each arm provide?
Each arm gives up to 70 cm of height adjustment and 57 cm of extension. The screen can tilt from 50° to -20°, rotate from 180° to -180°, and move between landscape and portrait orientations.
Product Specification
| Colour | Black |
| For Use With | Screens between 17"~35", Weighing 2~20kg, VESA Compatible 100x100, 75x75 |
| Size | 1075 x 176 x 551mm |
| Type | Arm |
| Weight [g] | 7480.00 |
