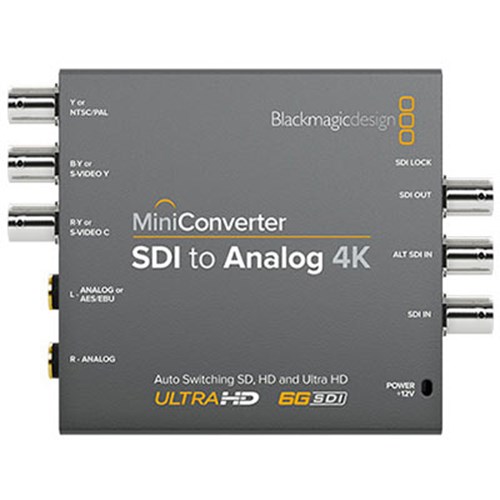

Convert SDI to Analogue 4K with the Blackmagic Mini Converter - SDI to Analogue 4K. Compatible with SD, HD, 3G, and 6G-SDI, the converter can output to analogue in HD/SD component, NTSC, and PAL video. You can also connect the Mini Converter to Ultra HD video sources, while also connecting analogue equipment such as a Betacam SP, VHS, and video monitors.

Key Features: Blackmagic Mini Converter - SDI to Analogue 4K

  • Connections:
    • SDI Video Inputs: 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails
    • SDI Video Outputs: 1 x SDI Video Loop Output
    • Analogue Video Outputs: NTSC, PAL, S-Video and component SD/HD from 6G-SDI input
    • Analogue Audio Outputs: 2 channels of professional balanced analogue audio with standard 1/4 inch jack connections
    • Digital Audio Outputs: 2 channels of professional balanced digital with standard 1/4 inch jack connections
    • SDI Redundant Input: Automatically switches over if main SDI input is lost
    • Multi Rate Support: Auto detection of SD, HD or 6G-SDI
    • Updates and Configuration: USB
    • Reclocking: Yes
  • Standards:
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
    • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
    • 4K Video Standards: 4K DCI 24p
    • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601
    • SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K
    • SDI Video Sampling: 4:2:2
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    • SDI Colour Precision: 4:2:2
    • SDI Colour Space: YUV
    • SDI Auto Switching: Automatically detects SD, HD or 6G-SDI
    • Analogue Format Support: 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080i50, 1080i59.94, 1080i60
    • Analogue Colour Space: YUV
    • Analogue Colour Precision: 4:2:2
  • Format conversion: HD down conversion
  • Software:
    • Software control: Mac OS X and Windows software upgrade via USB
    • Internal software upgrade:Via included updater application
  • Operating systems: MacOS 10.12 Sierra or later, Windows 8.1, and Windows 10
  • Power requirements:
    • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point
    • Power Consumption: 8.04 Watts
    • Operational Voltage Range: 12-31V DC
  • Dimensions: 123.1 x 92.27 x 23mm
  • Weight: 303g

What's included:

  • Mini Converter SDI to Analogue 4K
  • Software CD
  • 12V universal power supply with international socket adapters
