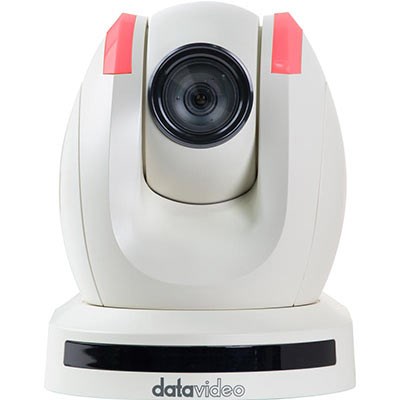

Datavideo 3 x PTC-150TLW HDBaseT PTZ Camera and custom foam hardcase with HS-1600T 4-Channel HD/SD H

The Datavideo 3 x PTC-150TLW HDBaseT PTZ Camera and custom foam hardcase with HS-1600T 4-Channel HD/SD H has been designed for use with both HS-1500T and HS1600T. The camera offers a 1/2.8" High Definition 2.14-megapixels progressive CMOS sensor and a plethora of studio multi-cam friendly features. This includes built-in tally light, digital noise reduction, and a fantastic 30x optical zoom. Ideal for television productions and can be used in conjunction with professional cameras when working in a studio setting, on sporting events or Reality TV. The included HS-1600T supports full HD 1080p recording and is capable of controlling the camera's pan, tilt, and zoom with a convenient joystick. It is perfect for streaming to Facebook Live, YouTube, Twitch and much more thanks to the built-in H.264 streaming recorder.

Datavideo 3 x PTC-150TLW HDBaseT PTZ Camera with HS-1600T 4-Channel HD/SD HD Key Features:

• The kit consists of 3x PTC-150TLW HDBaseT PTZ Camera (White)
• Comes with a custom foam heavy-duty hardcase with rubber seals to guard against dust and water
• HS-1600T HDBaseT 4 input Portable Video Studio is also included
• Features a 1/2.8" High Definition 2.14-megapixels progressive CMOS sensor
• Users benefit from 50 programmable position pre-sets for pan, tilt and zoom positions
• Offers a 30x Optical Zoom (f=4.3 mm to 94.6 mm)
• The operator has full control over video, audio, and tally in addition to power over a single cat-6 cable
• Perfect for use with the HS-1500T HDBaseT Portable Video Studio with PTZ Control
• Ideal for multi-cam studio work as the built-in tally light indicates when the camera is active
• For improved operability there is a Tally LED Design (IR / RF Controller/ RS-422/ DVIP Operation)
• Digital Noise Reduction Function reduces noise and produces clearer image in low light
• Position coordinates are reported in real time per frame
• Capable of HD-SDI + CVBS + HDMI video outputs synchronously
• Supports VIP Control Protocol and VISCA Protocol Keyboard
• RMC-180 / RMC-300 Camera Control Unit
• Supports High-Definition formats such as 1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50
• Standard definition 480i, 576i formats are also supported
• Firmware updates are available

Expanded Datavideo 3 x PTC-150TLW HDBaseT PTZ Camera with HS-1600T 4-Channel HD/SD HD Expanded Key Features:

HS-1600T Portable Video Studio

The included HS-1600T is an HDBaseT Portable Video Studio with PTZ Control and built-in encoding thanks to which it is ideal for live streaming to Twitch, Facebook, YouTube and much more. It fully supports Full HD 1080P recording and features built-in HDBaseT technology that allows for the connection of up to three PTZ cameras via one CAT6 cable or higher (maximum distance 100 meters). Other features include PoE, flexible effects such as fades, a tally output, and a built-in SD card slot. Users can easily control the pan, zoom, and tilt of the PTZ camera via a joystick. Additionally, functions such as focus, gain, and iris can be controlled on either PTC-150T or PTC-140T. Video inputs include 3x RJ-45, and 1x HDMI; whereas, the video output is 3x HDMI. Available audio inputs are XLR Analogue x 2 + RCA Analogue (L/R) x 2. Finally, the HS-1600T is capable of supporting different bitrate for recording and streaming and offers broadcast-quality HD / SD H.264 network streaming.

HDBaseT Technology

The included HDBaseT Technology has been designed for transmitting remote control, video, tally signals, and power. Thanks to this a single Cat5 or Cat6 cable can replace four individual cables. Additionally, the PTC-150TLW PTZ can be positioned in any location regardless of the position of the power sockets. This includes walls, celling, flooring, and table-tops. The mounting is quick and easy and the camera also works well with the HS-1500T that allows for the control of the camera from a remote location via one Ethernet cable.

Outstanding Image Quality

The camera offers a wide dynamic range with backlight compensation and is capable of HD video at 1920 x 1080 resolution capture. Operators can benefit from a motorized 30x optical zoom, in addition to image mirror and image rotation function. These allow for electronic adjustment of the image thanks to which the resulting image is correctly orientated.

Easy Operability and Control

Users benefit from 50 programmable pre-sets for pan, tilt, and zoom positions. These allow the camera to move quickly between predetermined camera positions via a dedicated PTZ controller or a remote. When working on multi-camera shoots, the built-in light clearly identifies active cameras. The built-in IR cut filter in the image path is great for low-light recording and has the ability to return for daytime shooting. The camera also supports Sony VISCA protocol for PTZ control via RS-422 interface over the unit's RJ-45 port.

What's in the box?

• 3 x PTC-150TLW Unit
• 3 x IR Remote Controller
• 3 x Ceiling Mount Bracket A
• 3 x Ceiling Mount Bracket B
• 18 x Ceiling Mount Bracket Screw M3x4mm
• 3 x DC 12V Power Adaptor
• 3 x Power Cord
• 3 x Tightrope
• 1 x Heavy duty case with custom foam
• 1 x HS-1600T
• 1 x AD Switch DC 48V with AC Cord
• 3 x Ethernet Cable
• 1 x HS-1600T
• 1 x AD Switch DC 48V with AC Cord
• 3 x Ethernet Cable

Datavideo 3 x PTC-150TLW HDBaseT PTZ Camera with HS-1600T 4-Channel HD/SD HD Product Videos:
