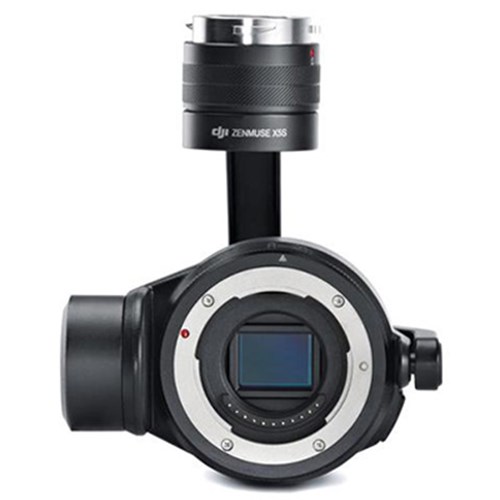

DJI Zenmuse X5S Drone Gimbal and Camera (Lens excluded)

By utilising the CineCore 2.0 image processing system of the DJI Inspire 2 Drone, the DJI Zenmuse X5S is capable of shooting 5.2K 30fps CinemaDNG video as well as 4K 60fps using H.264 or 4K 30fps using H.265. Designed for high-end professional filmmaking, it's equipped with an uprated Micro 4/3 sensor that delivers impressive 20.8-megapixel stills. Please note no lens is included with this item.

Key Features: DJI Zenmuse X5S

• Micro Four Thirds sensor
• Able to shoot 5.2K at 30fps or 4K at 60fps
• Captures 20.8-megapixel stills
• 12.8 stops of dynamic range
• 20fps continuous burst shooting capability

Improved Micro 4/3 Sensor

The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4µm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and color sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.

Array of Compatible Lenses

Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.

• Olympus M.Zuiko 12mm/2.0
• DJI MFT 15mm/1.7 ASPH
• Olympus M.Zuiko 17mm/1.8
• Panasonic Lumix 15mm/1.7
• Olympus M.Zuiko 25mm/1.8
• Panasonic Lumix 14-42mm/3.5-5.6 HD
• Olympus M.Zuiko 45mm/1.8
• Olympus M.Zuiko 9-18mm/4.0-5.6

Hollywood-Grade Video

Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ (no alpha). Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bitrate of 100Mbps.

Fast, Efficient Workflows

The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allows Zenmuse X5S footage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without any additional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.

Lossless In-Video Single And Burst Photo Capture

Using only the Micro SD card, 20.8MP stills can be captured at 14fps in Burst Mode in JPEG+DNG. Using the DJI CINESSD opens up 20fps continuous DNG Burst Mode with a maximum image resolution of 20.8 megapixels. Stills can also be taken during video recording without interruption.

Enhanced Camera Stabilization

Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video. 360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage can be captured even when using a 90mm lens.

Long-Range Camera And Focus Control

Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO app. Precision control also extends to focus, with DJI GO and the optional DJI Focus, offering focus control across the entire transmission range. Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away.
