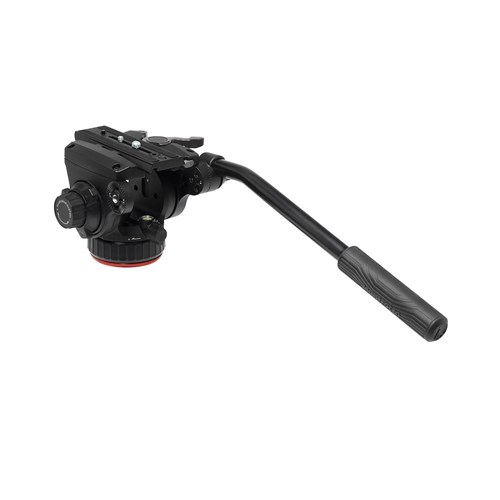

The Manfrotto 502X Fluid Video Head is a compact professional video head for mirrorless cameras and compact camcorders, supporting payloads up to 8kg. Variable Continuous Fluid Drag adjusts the resistance through pan and tilt movements, giving operators precise control during slow pans, subject tracking and careful reframing. For heavier setups, the built-in counterbalance system is optimised for 4.4kg at a 55mm centre of gravity, keeping camera movement easier to manage.
Manfrotto 502X Fluid Video Head Key Features:
- Supports mirrorless cameras and compact camcorders with 8kg payload
- Variable Continuous Fluid Drag System sets pan and tilt resistance precisely
- Counterbalance system supports 4.4kg loads at 55mm centre of gravity
- 504PLONG-type sliding plate provides quick top-loading and balance adjustment
- Side-lock attachment secures camera plate directly onto video head
- Independent pan and tilt locks hold framing during camera adjustments
- 75mm flat base fits tripods, sliders, dollies and support systems
- XCHANGE-ready base for faster movement between compatible support equipment
- 3/8-inch Easy Link connectors attach monitors, arms and other accessories
- Anti-rotation fittings prevent compatible accessories twisting after mounting
- Supports commercial, documentary, interview, multi-camera shoots, and more
FAQs:
How does the Variable Continuous Fluid Drag System affect camera movement?
The Variable Continuous Fluid Drag System operates across both pan and tilt movements. It provides adjustable fluid drag, giving the operator control over how the head moves when following a subject, performing a slow pan or making framing adjustments. The system supports smooth, consistent movement throughout a shot. Pan and tilt can also be locked independently when the camera needs to remain in a fixed position.
What does the counterbalance system do?
The built-in Counterbalance System provides additional support when balancing and controlling a camera setup on the head. It is optimised for 4.4kg at a 55mm centre of gravity and can be engaged when greater camera control is required. This reduces the operator effort needed to manage the camera during movement. Combined with the fluid drag system, it provides more precise control over the camera setup.
How does the 504PLONG-type sliding plate make balancing easier?
The 502X uses a 504PLONG-type sliding plate for adjusting the camera’s balance directly on the head. Its side-lock top attachment allows top-loading, so you can attach the camera and plate without sliding them into the head from the end. You can then adjust the plate position to balance the camera setup, making mounting and balance adjustments quicker during setup.
Can the Manfrotto 502X be used on supports other than a tripod?
Yes. The 502X has a 75 mm flat base with a 3/8-inch mounting connection, so it can move between compatible tripods, sliders, dollies and other support systems. Its base is also ready for the Manfrotto XCHANGE quick release system, which reduces mounting work when switching between compatible supports. The 502X’s mounting flexibility is particularly useful when a production moves the same camera setup between different support types.
Can monitors or other accessories be mounted directly to the 502X?
Integrated 3/8-inch Easy Link connectors provide mounting points for accessories such as monitors and articulated arms. Attaching these items to the head keeps them connected to the support rather than adding their weight directly to the camera body. Anti-rotation fittings resist twisting at the connection when compatible accessories are adjusted. This gives operators a more secure mounting point when repositioning a monitor or accessory arm during setup.
Product Specification
| Head Type | Fluid Video Head |
| Height [cm] | 13.2 |
| Max Load [g] | 8000 |
| Mount Thread | 3/8'' |
| Weight [g] | 1720.00 |
