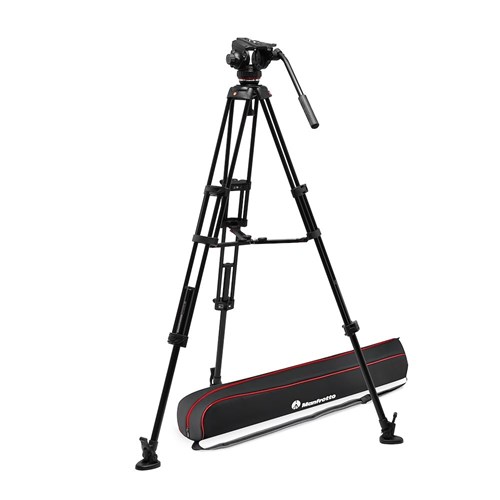

Manfrotto Pro Twin Leg Aluminium Video System Tripod with 502X Fluid Head
The Manfrotto Pro Twin Leg Aluminium Video System combines the 502X Fluid Video Head with a two-stage aluminium twin leg tripod for professional video production. Rigid twin legs and an adjustable mid-level spreader keep the tripod stable across studio floors and uneven location ground. Adjustable fluid drag on the 502X head changes the resistance through pans and tilts, while the 4.4kg counterbalance setting supports more balanced camera movement with reduced operator effort.
Manfrotto Pro Twin Leg Aluminium Video System Tripod with 502X Fluid Head Key Features:
- Video system combines 502X fluid head with aluminium twin leg tripod
- Two-stage aluminium twin legs provide rigid support for professional camera setups
- 100mm tripod bowl includes 75mm adapter for different head configurations
- Telescopic mid-level spreader adjusts leg positioning across uneven shooting surfaces
- Twin spiked feet and rubber overshoes provide grip across varied surfaces
- 8kg head payload supports mirrorless cameras and compact camcorder setups
- Variable fluid drag provides adjustable resistance through pan and tilt movements
- Counterbalance system supports 4.4kg loads at 55mm centre of gravity
- 504PLONG sliding plate provides quick top loading and balance adjustment
- Independent pan and tilt locks secure camera position between movements
- 3/8-inch Easy Link attachments provide secure mounting points for video accessories
- 75mm flat head base supports tripods, sliders, dollies and support systems
- Padded carrying bag stores and protects the system during transport
- Supports documentary filmmaking, studio operation, multi-camera shoots, and more
FAQs:
How does the fluid drag system affect pan and tilt movement?
The 502X uses a Variable Continuous Fluid Drag System on both the pan and tilt axes. Adjusting the system changes the resistance during camera movement, giving the operator control over how the head moves through pans and tilts. This supports smooth movement when following subjects, making slow pans or adjusting framing. You can adjust pan and tilt drag independently.
What does the counterbalance system do?
The 502X has a built-in Counterbalance System that can be engaged when greater camera control is required. It is optimised for 4.4kg at a 55mm centre of gravity. When engaged, the system supports a balanced camera setup and reduces the effort required from the operator. The 502X supports a maximum payload of 8kg.
Can I attach monitors or other accessories directly to the head?
Yes. The 502X has integrated 3/8-inch Easy Link attachments for mounting accessories such as monitors and arms. These provide dedicated attachment points directly on the head. The Easy Link system also secures compatible accessories without rotating the head. This keeps additional equipment attached to the video support system rather than the camera plate.
Can the 502X head be used on support equipment other than this tripod?
Yes. The 502X has a 75mm flat base with a 3/8-inch mounting connection. This mounting arrangement lets the head move between compatible tripods, sliders, dollies and other support systems. The head is also compatible with the Manfrotto XCHANGE quick release system. This provides another way to change equipment during a production.
How does the twin leg tripod handle uneven ground?
The MVTTWINMA tripod uses a mid-level spreader with telescopic arms for adjusting leg positioning across uneven terrain and changing shooting conditions. Its twin-leg construction provides rigid support, while twin spiked feet with removable rubber overshoes suit both studio and location setups. You can also remove the mid-level spreader, making the tripod compatible with the optional Manfrotto 165MV ground spreader.
What bowl sizes does the tripod support?
The MVTTWINMA tripod has a 100mm aluminium bowl for supporting compatible video heads. It also includes a 75mm adapter, providing compatibility with different video head configurations. This gives the tripod support for both 100mm and 75mm head arrangements beyond the supplied 502X Fluid Head.
Product Specification
| Closed Length [cm] | 84.3 |
| Included Accessories | Carrying Bag |
| Max Height [cm] | 167.3 |
| Max Load [g] | 8000 |
| Min Height [cm] | 73.3 |
| Primary Material | Aluminium |
| Weight [g] | 5300.00 |
| With Head | Yes |
