Product Code: 1641734

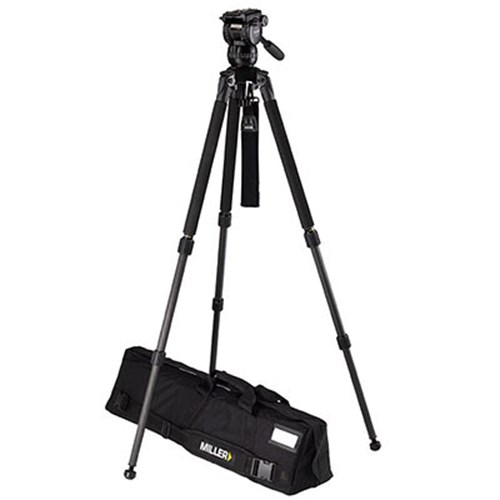

Miller CompassX CX2 3712 Solo 75 2-St Carbon Fibre Tripod

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »

1x Miller CompassX CX2 3712 Solo 75 2-St Carbon Fibre Tripod Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The Miller CompassX CX2 3712 Solo 75 2-Stage Carbon Fibre Tripod is the most versatile, compact and easy-to-use tripod in the Miller range. Designed for single operators using a mirrorless camera, DSLR, mid-sized cine-rig or ENG camera, the CX2 fluid head is capable of holding up to 8kg. The head features CB Plus technology, providing 16 positions of counterbalance for precise, quick adjustments.

Key Features: Miller CompassX CX2 3712 Solo 75 2-St Carbon Fibre Tripod

  • Ideal for professional and broadcast use: This tripod offers reliable stability for users with high-capacity tripod needs. Capable of holding up to 12kg the CompassX CX2 Solo 75 tripod is ideally suited to professional and broadcast use, where camera rigs are often far heavier due to the accessories attached to the camera
  • Lightweight frame: The tripod’s carbon fibre frame keeps its weight to just 5.3kg with the head attached, making it almost half the weight of other tripods with similar maximum payloads, and offering an incredible stiffness to weight ratio
  • Premium fluid pan and tilt drag controls: Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, the CX2 Fluid Head is capable of balancing payloads up to 8kg. It features 3+0 selectable positions of fluid pan and tilt drag control, which is adjustable via a radial ring on the ball to the bottom of the head
  • CB Plus counterbalance technology: The CX2 head features Miller’s innovative CB Plus counterbalance technology, allowing users to precisely configure the balance of their rigs. With 16 positions of counterbalance to choose from, there’s a setting for every camera rig configuration
  • Innovative leg angle control: Miller have eliminated the need for a leg spreader thanks to their innovative leg angle control, which uses a safety lock for stability while also ensuring quick and easy setup
  • IBC Show 2017 - Miller CompassX Fluid Head Series

    Key Features: Solo 75 2 Stage Carbon Fibre Tripod (1501)

    • Integrated 75mm bowl
    • Lightweight carbon fibre legs
    • 3-position leg angle locking - no spreader
    • 2-stage rapid leg lock extension
    • Air Cell carry strap
    • Leg spike with wind-down rubber feel
    • Neoprene leg protection
    • Comes with 2-stage tripod bag

    Key Features: Miller CompassX 2 Fluid Head (1090)

    • Compact, light and versatile
    • 75mm ball levelling
    • Perfect for payloads to 0-8kg (17.6lbs)
    • 15+0 CB Plus selectable counterbalance positions
    • Ergonomically located CB Plus switch
    • 3+0 selectable positions of fluid pan and tilt drag
    • Positive selection radial ring controls
    • Illuminated bubble level
    • Precise floating pan-tilt calliper locks ensure bounce free on-off performance
    • Side loading, 60mm balance travel camera plate with 1/4" + pin, 1/4" and 3/8" screws
    • Robust construction for rugged outdoor shooting conditions
    • Side mounting point for viewfinders and accessories
    • Optional second pan handle mount
    • 3 year warranty


    • Payload Range: 0-8.0kg (0-17.6lbs)
    • Weight: 5.3kg (11.7lbs)
    • Height Range: 404-1784mm (15.9-70.2”)
    • Transport Length: 864mm (34”)
    • Counterbalance Positions: 16 selectable positions (15+0)
    • Pan Tilt Drag: 3 selectable fluid drag positions + 0
    • Pan Tilt Locks: Positive lock calliper brake system
    • Tilt Range: + 90°/ -75°
    • Pan Range: 360°
    • Camera Platform: Quick release, side load camera plate
    • Sliding Range: 60mm (2.4")
    • Mounting Base: Ø75mm (2.9”) ball levelling
    • Height Above Bowl: 167mm (6.6")
    • Illuminated Controls: Bubble level
    • Pan Handle: Fixed length 390mm (15.4")
    • Temperature Range: -40° to +65°C (-40° to +149°F)
    • Leg Extension: 2-stage telescopic
    • Lock Type: Concentric Rapid Lock
    • Leg Material: Carbon fibre

    Kit contents:

    • 1090 - CX2 fluid head
    • 1501 - Solo 75 2-stage tripod (carbon fibre)
    • 679 - Pan handle - fixed with clamp
    • 1520 - Solo shoulder strap (Aircell)
    • 3514 - Softcase 2-stage
    Back to top

    Product Specification

    Closed Length 86.4
    Colour Black
    Included Accessories CX2 fluid head (1090), Solo 75 2-Stage carbon fibre tripod (1501), Pan handle - fixed with clamp (679), Solo shoulder strap (1520), Softcase 2-stage (3514)
    Leg sections 2
    Max height 178.4
    Max Load 8000
    Min height 40.4
    Primary material Carbon Fibre
    Range CompassX 2
    Weight (g) 5300
    Manufacturer Link Miller
    Back to top
    Back to top
    Back to top
    Product Code: 1641734-wex Manufacturers Part Number: 3712
