Neumann Monitor Alignment Kit 1

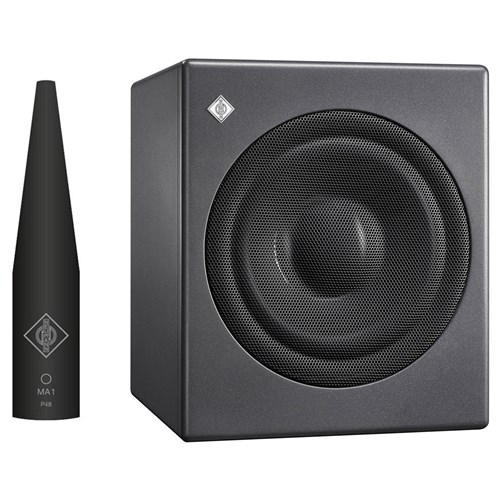

The Neumann Monitor Alignment Kit 1 is a complete room correction and acoustic calibration system, consisting of an MA 1 measurement microphone and a KH 750 DSP-powered subwoofer. It can be used with a pair of KH 80 DSP or non-DSP KH-series monitors to ensure the best sound quality. The included calibration software creates a room-specific profile to handle amplitude and frequency issues.

Neumann Monitor Alignment Kit 1 Key Features:

• Includes a KH 750 DSP subwoofer and MA 1 measurement microphone
• The included calibration software is jointly developed with Fraunhofer IIS
• Analyses the acoustic environment in a guided process
• Guarantees an optimally adapted amplitude and phase correction
• Stores and processes the alignment data within the DSP monitors
• Delivers the highest accuracy in terms of tonality and impulse reproduction
• Using the subwoofer ensures an optimal summation in low frequencies
• Using the subwoofer ensures an optimal summation in low frequencies
• Requires no plug-ins, drivers, or additional cables
• Stereo sets of analogue KH-line monitors can be used with the software
• Results in increased clarity, dry bass and an accurate depiction of acoustic spaces
• The MA 1 microphone has an omnidirectional pickup pattern
• Designed specifically for optimization of Neumann monitors
• The software is compatible with both Mac and Windows
• Helps in adjusting the speaker settings to a room-specific target curve

Expanded Neumann Monitor Alignment Kit 1 Key Features:

MA 1 Measurement Microphone

The included MA 1 measurement microphone ensures the best possible sound quality for in-home studios or professional control rooms. It is an individually calibrated measuring microphone that analyses an acoustic environment in a guided process. The advanced calibration algorithms, jointly developed with the Fraunhofer IIS, provide amplitude and phase correction. The MA 1 kit is tailor-made for Neumann studio monitors and can be used with stereo sets of KH 80 DSP monitors and non-DSP KH-series monitors. It comes with calibration software that handles the amplitude, frequency, and time-alignment issues according to a room-specific target curve.

KH 750 DSP-powered Subwoofer

The KH 750 DSP-controlled subwoofer is specifically designed to complement small room/small studio monitoring systems. Featuring a flexible 2.0/1.0 Bass Manager, this subwoofer ensures an optimal summation of the alignment process in low frequencies. It enables the use of stereo sets of analogue KH-line monitors with the Automatic Monitor Alignment Software. It provides enough processing power to align an entire system including two analogue loudspeakers. The phase linearization of the built-in crossover filters of the KH 120, KH 420, and KH 310 results in a dry bass, increased clarity and a time-accurate depiction of acoustic spaces.

Easy Installation

The guided process of this room correction system measures and analyses the respective listening environment and stores the resulting data within the DSP-powered monitors. This eliminates any use of plug-ins, drivers or additional cables. No special acoustic knowledge is required for the setup and the DSP-based KH monitors can be connected to the computer’s ethernet port. The ethernet connections too are not required once the alignment process is completed. The software ascertains the room’s acoustic properties from the measured data and the target curve can be modified as per specific needs.

What's in the box?

• 1 x MA 1 Measurement Microphone
• 1 x SG 105 Stand Clamp
• 1 x MA 1 Monitor Alignment Software (Free Download)
• 1 x KH 750 DSP – Subwoofer
• 1 x Mains Cable
• 1 x Quick Start Guide
• 1 x Safety Guide
• Limited 2-Year Warranty

FAQs:

What are the software requirements?

The software requirements for the MA 1 kit are ASIO driver (for Windows), Windows 10 64-bit and macOS 10.13/10.14/10.15 operating system, and the Neumann Automatic Monitor Alignment Software.

Which all loudspeakers are compatible with MA 1?

The KH 80 DSP loudspeaker and the KH 750 DSP subwoofer are network-enabled compatible DSP loudspeakers that can be controlled directly by the software. The following analogue loudspeakers are not network-enabled: KH 120 A, KH 120 D, KH 310 A, KH 310 D, KH 420/KH 420 + DIM 1. These need to be connected via a network-enabled subwoofer to be included in the setup.

What is the pickup pattern of the microphone?

The MA 1 microphone has an omnidirectional pickup pattern and captures sound from all sides.

What is the maximum SPL of the microphone?

It has a maximum SPL of 132 dB for a THD of less than 0.5%.

How can it be connected to other devices?

The microphone consists of an analogue output connector and consists of one XLR 3-pin connector.
