USED Rode RodeLink Filmmaker Kit - Digital Wireless System
This Mic will show signs of use and will exhibit more noticeable signs of use such as paint loss and heavy marks to the outer casing.
Shutter Count (approximately): Not available

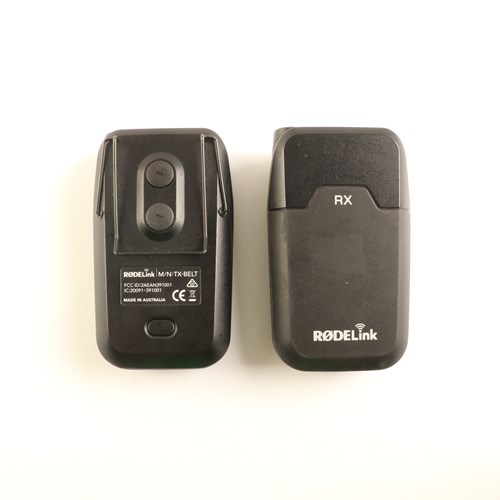

Supplied with: RodeLink TX-Belt, RodeLink RX-CAM, White Box
Not included: : Original Box, RodeLink Lav, RodeLink WS-LAV, LAV-CLIP, Manual
RodeLink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres*. The Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status, mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible.
Key Features/Specs: Rode RodeLink Filmmaker Kit
- Series II, 2.4GHz digital transmission
- 128-bit encryption
- Up to 100 metres range*
- OLED display (on receiver)
- One button pairing
- Three level gain control
- AA battery or USB powered
- Includes Rode's broadcast Lavalier microphone
Wex SnapShots | Rode RodeLink Filmmaker Kit
RodeLink Filmmaker Kit Specifications
- Transmission type 2.4GHz Fixed Frequency Agile System
- System dynamic range 112dB
- Range (distance) Up To 100m
- Frequency range 35Hz - 22kHz
- Maximum output level 1v Rms (2.8v P-p)
- Max input signal level 1v Rms (2.8v P-p)
- Max latency 4ms
Receiver (RX-CAM)
- Power source 2 X AA Battery Or MicroUSB
- Antenna Internal
- Input connection 3.5mm TRS Locking Jack Socket - Dual Mono
- Input impedance 300O
- Dimensions 111mm X 65mm X 52mm
- Weight 190gm
Transmitter (TX-BELT)
- Power source 2 X AA Battery Or MicroUSB
- Antenna Internal
- Input connection 3.5mm TRS Locking Jack Socket
- Input impedance 10kO
- Dimensions 111mm X 65mm X 40mm
- Weight 190gm
Lavalier
- 10 year warranty
- Acoustic Principle Pressure Gradient
- Active Electronics JFET impedance converter
- Capsule 0.10"
- Address Type End
- Frequency Range 60Hz - 18kHz
- Output Impedance 3000O
- Maximum SPL 110dB SPL (@ 1kHz, 1% THD into 1KO load)
- Maximum Output Level 189.0dBu (@ 1kHz, 1% THD into 1KO load
- Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
- Equivalent Noise Level (A-weighted) 25dB-A
- Weight 1.00gm
- Dimensions 12.00mmH x 4.50mmW x 4.50mmD
* range estimations based on optimal environment.
Make sure you're using radio frequencies responsibly: Read our blog post here about how to make sure you don't fall foul of the law when using radio frequencies with microphones.
Back to top
Product Specification
| Lavalier Mic Included | Yes |
| Receiver Antenna | Internal |
| Receiver Input Connection | 3.5mm TRS Locking Jack Socket - Dual Mono |
| Receiver Power Source | 2 x AA / Micro USB |
| Transmission Type | 2.4GHz Fixed Frequency Agile System |
| Transmitter Antenna | Internal |
| Transmitter Input Connection | 3.5mm TRS Locking Jack Socket |
| Transmitter Power Source | 2 x AA / Micro USB |
| Manufacturers Link | Rode |
