USED Rode RodeLink Filmmaker Kit - Digital Wireless System
This Mic will show little use and will exhibit a few marks and often small spots of paint loss some of which will be heavier in areas such as the outer casing.
Shutter Count (approximately): Not available
Supplied with: White Box, RodeLink TX-Belt, RodeLink Lav, RodeLink WS-LAV, LAV-CLIP
Not included: : Original Box, Manual, RodeLink RX-CAM
RodeLink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres*. The Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status, mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible.
Key Features/Specs: Rode RodeLink Filmmaker Kit
- Series II, 2.4GHz digital transmission
- 128-bit encryption
- Up to 100 metres range*
- OLED display (on receiver)
- One button pairing
- Three level gain control
- AA battery or USB powered
- Includes Rode's broadcast Lavalier microphone
Wex SnapShots | Rode RodeLink Filmmaker Kit
RodeLink Filmmaker Kit Specifications
- Transmission type 2.4GHz Fixed Frequency Agile System
- System dynamic range 112dB
- Range (distance) Up To 100m
- Frequency range 35Hz - 22kHz
- Maximum output level 1v Rms (2.8v P-p)
- Max input signal level 1v Rms (2.8v P-p)
- Max latency 4ms
Receiver (RX-CAM)
- Power source 2 X AA Battery Or MicroUSB
- Antenna Internal
- Input connection 3.5mm TRS Locking Jack Socket - Dual Mono
- Input impedance 300O
- Dimensions 111mm X 65mm X 52mm
- Weight 190gm

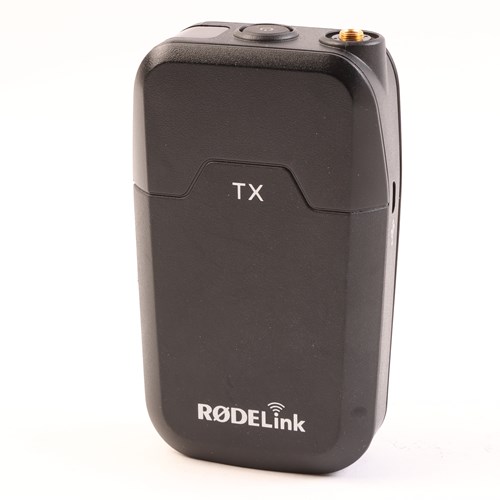

Transmitter (TX-BELT)
- Power source 2 X AA Battery Or MicroUSB
- Antenna Internal
- Input connection 3.5mm TRS Locking Jack Socket
- Input impedance 10kO
- Dimensions 111mm X 65mm X 40mm
- Weight 190gm
Lavalier
- 10 year warranty
- Acoustic Principle Pressure Gradient
- Active Electronics JFET impedance converter
- Capsule 0.10"
- Address Type End
- Frequency Range 60Hz - 18kHz
- Output Impedance 3000O
- Maximum SPL 110dB SPL (@ 1kHz, 1% THD into 1KO load)
- Maximum Output Level 189.0dBu (@ 1kHz, 1% THD into 1KO load
- Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
- Equivalent Noise Level (A-weighted) 25dB-A
- Weight 1.00gm
- Dimensions 12.00mmH x 4.50mmW x 4.50mmD
* range estimations based on optimal environment.
Make sure you're using radio frequencies responsibly: Read our blog post here about how to make sure you don't fall foul of the law when using radio frequencies with microphones.
Back to top
Product Specification
| Lavalier Mic Included | Yes |
| Receiver Antenna | Internal |
| Receiver Input Connection | 3.5mm TRS Locking Jack Socket - Dual Mono |
| Receiver Power Source | 2 x AA / Micro USB |
| Transmission Type | 2.4GHz Fixed Frequency Agile System |
| Transmitter Antenna | Internal |
| Transmitter Input Connection | 3.5mm TRS Locking Jack Socket |
| Transmitter Power Source | 2 x AA / Micro USB |
| Manufacturers Link | Rode |
