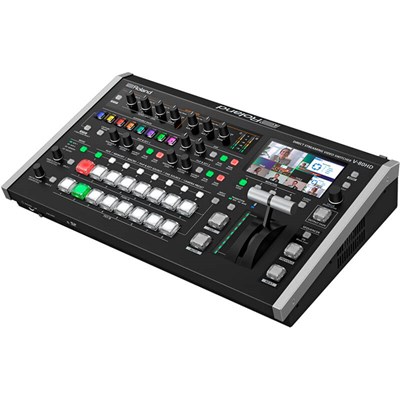

Roland V-80HD Direct Streaming Video Switcher
Product Code: 3188210

Roland V-80HD Direct Streaming Video Switcher

£3,737.00 Special Order
Check stock near me
Back to top

Compact and powerful, the V-80HD covers professional video production needs for in-person events, livestreaming, studio productions, and other applications. The all-in-one design is easy to carry and set up, while flexible I/O features support 3G SDI, HDMI, USB 3.0, and LAN (RTMP/SRT) connections. The V-80HD also includes multi-channel audio mixing and effects, integrated control for PTZ cameras, and remote operation with video monitoring via dedicated control apps. And with the companion Graphics Presenter software, you can easily enhance productions with impressive titles, motion graphics, and more.

Roland V-80HD Direct Streaming Video Switcher Key Features:

  • Professional eight-channel switcher with a compact footprint and comprehensive features
  • Supports a variety of applications, including in-person events, conferences, web streaming, houses of worship, and studio production setups
  • Four 3G SDI inputs with frame rate converters
  • Four 1080p HDMI inputs, including two 4K inputs with HD downscalers and through outputs
  • Seven total outputs include SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
  • Two 3G SDI and three HDMI outputs plus 10 assignable buses
  • 28-channel digital audio mixer and three output buses with effects and processing
  • Five-layer video effects engine, including two PinP windows with key composition and DSK
  • Easily create stunning titles and motion graphics with the companion Graphics Presenter software for Windows
  • 32-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
  • Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
  • Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
  • Eight assignable pads for controlling up to 64 discreet functions
  • Extensive device control with Bluetooth, USB, RS-232, and LAN
  • Wireless and wired camera tally support

Expanded Roland V-80HD Direct Streaming Video Switcher Key Features:

Multiple Video Inputs

The V-80HD features versatile input connectivity with HDMI for common A/V devices and SDI for long cable runs and high-end cameras. Eight total channels are available, enabling seamless switching for up to four HDMI and four SDI input sources. Two 4K HDMI inputs are equipped with downscalers and the ability to send parallel connections to gaming consoles at eSports events. Additionally, an SRT input can be assigned to a cross-point button together with an SDI and HDMI input.

Versatile Video Outputs and Flexible Routing

With its multiple assignable outputs—including two SDI and three HDMI video outputs, a USB-C streaming output, and LAN (RTMP/SRT)—the V-80HD puts a high-end video matrix at your command. Each output can be assigned to 10 buses, allowing you to feed program displays, auxiliary monitors, multi-view producer displays, and online audiences all at once.

Powerful Video Effects Engine

The V-80HD is filled with tools to elevate presentations with impressive video effects and graphics. The onboard effects engine features five composition layers that include a split-screen effect, two PinP windows with key composition, and one DSK with fill/key composite support. It’s simple to create common layouts, such as a business presentation with an individual speaker, image slides, and a title on a background. PinP and DSK layers can be managed individually on the Program, Sub-Program, and two Aux outputs, providing flexibility for any production need.

Professional Graphics Made Easy

The Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the V-80HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher. Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.

Professional Audio Mixing and Effects

The V-80HD features 28 channels of audio mixing plus a wide selection of processing tools, I/O routing options, and automation features. Enhance sounds with ready-to-use effects, including high-quality vocal processing and a useful Loudness Gain function to manage levels while streaming. With the onboard Audio Player, it’s simple to integrate dedicated music and sound effects into every production. Three output buses are available, ready to support complex routing needs for streaming events and studio recording configurations.

What's in the box?

  • Roland V-80HD Direct Streaming Video Switcher
  • Power cord
  • AC adaptor
  • Startup Guide
  • Leaflet "USING THE UNIT SAFELY"
Back to top

Product Specification

Channels 8
Dimensions 396 (W) x 254 (D) x 103 (H) mm
Inputs Video: HDMI IN 1--4: HDMI type A x 4 * HDCP Supported * Multi-format Supported SDI IN 1--4: BNC type x 4 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M Audio: Analog: AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 10 mA (maximum load) AUDIO IN 3/L, 4/R: RCA phono type Digital: USB STREAM: USB Type-C (R) Bluetooth HDMI IN 1--4: HDMI type A x 4 SDI IN 1--4: BNC type x 4
Outputs Video: HDMI OUT 1--3: HDMI type A x 3 * HDCP Supported HDMI IN 3--4 THRU: HDMI type A x 2 * HDCP Supported SDI OUT 1--3: BNC type x 2 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M •USB STREAM: USB Type-C (R) Audio: Analog: AUDIO OUT 1--2: XLR type PHONES: Stereo 1/4-inch phone type Digital: USB STREAM: USB Type-C (R) Bluetooth HDMI OUT 1--3: HDMI type A x 3 HDMI IN 3--4 THRU: HDMI type A x 2 SDI OUT 1--2: BNC type x 2
Phantom Power Yes
Recording Formats MP4, WAV
Recording Media SDHC/SDXC card (commercially available) USB flash drive (commercially available) * SDXC card is required for video recording.
Type Video Switcher
Weight 3.5kg
