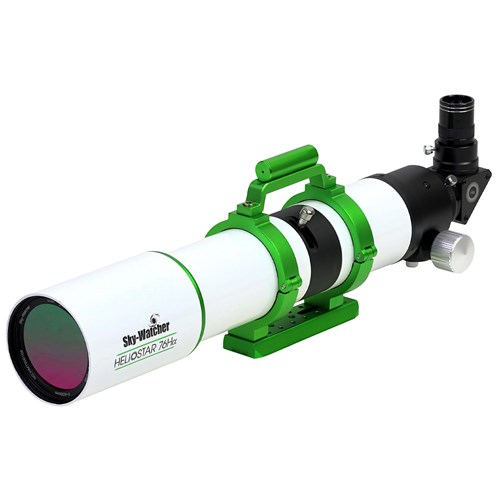

Sky-Watcher Heliostar-76Ha H-alpha Solar Telescope
Free delivery
This product is not in stock, but is usually available from our supplier within 5-7 days of your order being placed. No payment will be taken until the item is in stock and ready to be despatched.
Designed for direct observation of the Sun, the Sky-Watcher Heliostar-76Ha is a 76mm dedicated H-alpha solar telescope with a bandpass below 0.5 Angstrom. Using Solis single-etalon technology with pressure tuning, it reveals prominences and surface detail with strong contrast straight out of the case. Integrated front and rear filtering controls heat, UV and stray light, keeping views clean, stable and safe during extended solar sessions.
Sky-Watcher Heliostar-76Ha H-alpha Solar Telescope Key Features:
- 76mm dedicated H-alpha solar telescope for high-contrast solar observation
- Solis single-etalon system achieves <0.5 Angstrom bandpass performance
- Pressure tuning allows precise adjustment across the solar disk
- Front and rear filtering blocks heat, UV and unwanted wavelengths
- Reveals prominences, filaments, flares and surface granulation clearly
- 630mm focal length balances disk detail with comfortable magnification
- 2-inch dual-speed Crayford focuser supports fine visual and imaging focus
- Supplied 20mm wide-angle eyepiece gives x31.5 magnification
- Includes safe solar finder for accurate, controlled alignment
- ISO 12312-2:2015 compliant for direct solar observation
FAQs:
What does the <0.5 Angstrom bandpass mean in practical viewing terms?
A narrower bandpass isolates the H-alpha wavelength more tightly, which increases contrast in solar surface detail and prominences. With <0.5 Angstrom performance, the Heliostar-76Ha shows filaments, spicules, and active regions more clearly than wider-band systems. This level of contrast is usually associated with double-stacked setups, but here it is achieved with a single etalon. The result is strong disk detail without extra complexity or cost.
How does pressure tuning affect use?
Pressure tuning allows you to shift the etalon evenly across the field, helping maintain consistent contrast from edge to edge. This tuning makes it easier to bring the entire solar disk into optimal focus without uneven brightness. Adjustments are smooth and repeatable, which is helpful during longer observing sessions. It also avoids the image tilt sometimes seen with mechanical tuning systems.
Is the telescope suitable for solar imaging as well as visual use?
Yes. The Heliostar-76Ha supports CCD and camera imaging using a 1.25-inch adaptor, provided the camera back focus is 58mm or less. The 6mm solar image size works well with many small-format sensors used for solar work. The stable bandpass and fine focuser control make it suitable for both stills and video capture.
What safety systems are built into the telescope?
The telescope uses multiple layers of protection, including infrared-reflecting film, a heat-blocking filter, and UV filtration. Front and rear filters ensure only the 656.28nm H-alpha wavelength reaches the eyepiece or camera. It also meets ISO 12312-2:2015 standards for direct solar observation. As with all solar equipment, it should always be used exactly as instructed.
What mounting is recommended for comfortable observing?
A tracking mount is strongly recommended to keep the Sun centred during viewing and imaging. Sky-Watcher’s SolarQuest solar Go-To mount is a common pairing, as it automatically locates and tracks the Sun once aligned, reducing constant manual adjustment, making longer sessions more relaxed and controlled.
Product Specification
| Diagonal | 90° (1.25") Solar Diagonal |
| Eyepiece 1 | 20mm, 70° Wide Angle (1.25") |
| Focal Length [mm] | 630 |
| Included Accessories | Tube Rings, Integrated Carrying Handle, 45mm Dovetail Bar with 1/4-20 Tripod Threads, Supplied with Universal Smartphone Adaptor |
| Magnification With Eyepieces Supplied [x] | 31.5 |
