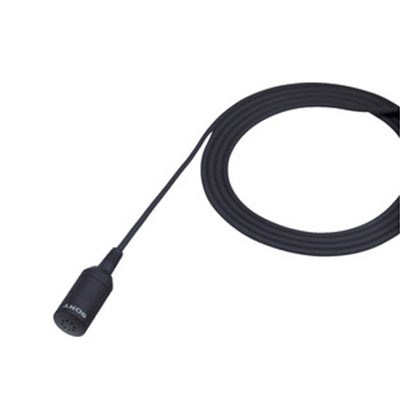

Sony ECM-55B Electret Condenser Lavalier Microphone

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »
£496.00

1x Sony ECM-55B Electret Condenser Lavalier Microphone Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The ECM-55B is an affordable general condenser lavalier microphone. It has a frequency response tailored for enhanced presence and improved voice quality and is well-suited to a wide range of applications.

Key Features: Sony ECM-44B Electret Condenser Lavalier Microphone

  • Frequency response tailored for enhanced presence and improved voice quality
  • Black anodised body finish and black cable
  • 2-way power system – either 1 x AA battery or external power supply

Specifications

  • Capsule Type: Electret Condenser
  • Frequency Response: 30 Hz to 18 kHz
  • Directivity: Omni-directional
  • Sensitivity *(1): -52.0 dB ±2 dB
  • Output Impedance *(2): 100O±20%, Balanced
  • Dynamic Range: 98 dB or more
  • Signal-to-Noise Ratio *(3): 66 dB or more
  • Inherent Noise *(4): 28 dB SPL or less
  • Induction Noise From External Magnetic Field *(5): 5 dB SPL or less
  • Wind Noise *(6): 40 dB SPL or less (with windscreen)
  • Maximum Input Sound Pressure Level *(7): 126 dB SPL
  • Connector: B type. Supplied with XLR-3-12C (male) connector in power supply unit (single AA size battery)
  • Mic Cable: 3 m (9.8 feet)
  • Power Requirements:
    • +48V Phantom Power
    • DC 1.5 V (AA size battery)
  • Battery Operating Time: Approx. 6000 h (LR6)
  • Power Consumption:
    • Internal battery 0.3 mA or less
    • External battery 2 mA or less
  • Dimensions *(8)
    • f10.6 x 21 mm (Mic head)

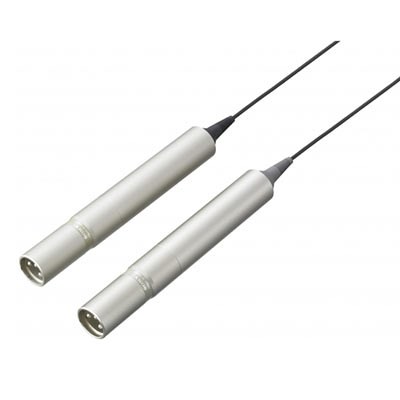

    • f20.0 x 133 mm (Power unit XLR type)
    • f13/16 x 5 1/4 inches (Power unit XLR type)
    • f7/16 x 27/32 inches (Mic head)
  • Weight: Approx. 126.5 g (4.5 oz) (with power supply unit)
  • Supplied Accessories

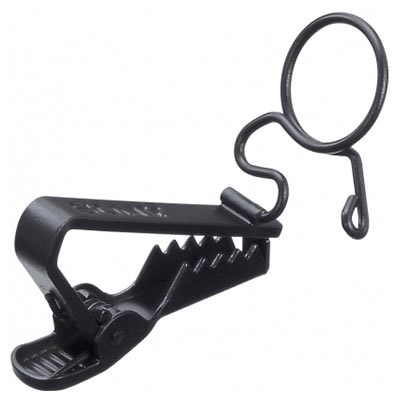

    • Single/vertical type tie clip (1)
    • Single/horizontal type tie clip (1)
    • Operating instructions (1)
    • Mic case (1)
    • Metak-mesh type windscreen (1)
    • Double/horizontal type tie clip (1)
  • Optional Accessories
    • Wind screen pack
    • Horizontal single-clip pack

    Notes
    *(1) 0 dB = 1 V/Pa, at 1 kHz
    *(2) Output impedance at 1 kHz
    *(3) A-weighted, 1 kHz, 1 Pa.
    *(4) 0dB SPL = 20? Pa.
    *(5) dB SPL/1E-7 T, 0 dB SPL = 20? Pa.
    *(6) Wind noise at 2m/s (0 dB SPL = 20?Pa.)
    *(7) 0 dB SPL = 20? Pa.
    *(8) The values for dimensions are approximate.
