Product Code: 1632592

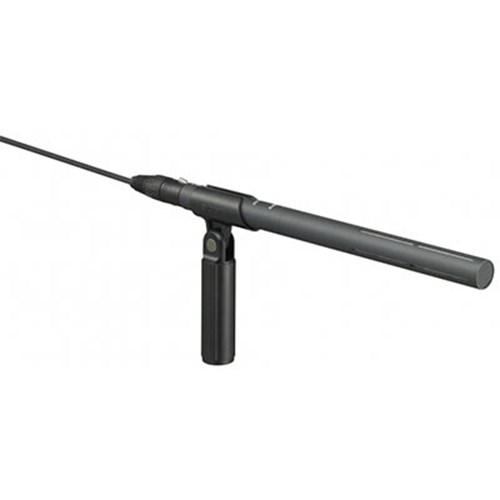

Sony ECM-674 Electret Condenser Short Shotgun Microphone

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »
£432.00

1x Sony ECM-674 Electret Condenser Short Shotgun Microphone Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The Sony ECM-674 is a shotgun-type electret condenser microphone which delivers excellent sound performance in both field and studio productions. It features superb sound quality, 2-way powering options, and automatic battery leak prevention.

Key Features: Sony ECM-674 Electret Condenser Short Shotgun Microphone

  • Superb sound quality
    The ECM-674 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa.) and low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pick-up, even in noisy environments
  • 2-way powering
    Its 2-way powering capability allows the ECM-674 to be driven by microphone power or batteries, making it suitable for both camcorder mounting and many other sound-gathering applications. Internal: AA-size battery operation. External: DC (40 to 52 V) operation
  • Built-in battery liquid leakage protection circuit
    In general, old batteries can leak and damage the equipment they are used in. The ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold
  • Flat-and-wide Frequency Response
    The ECM-674 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and provides sound reproduction that is extremely smooth and natural
  • Compact and Lightweight Design
    The ECM-674 has been designed as a highly directional compact and lightweight shotgun microphone. It measures only 268 mm (10.6”) in length and weighs just 185 g (6.5 oz), maintaining good balance even when mounted on compact camcorders
  • Built-in Low Cut Filter
    The built-in two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise

Specifications

  • Capsule Type: Mono electret condenser
  • Frequency Response: 40 Hz to 20 kHz
  • Directivity: Uni-directional (super-cardioid)
  • Sensitivity *(1): -36 dB ±3 dB
  • Output Impedance *(2): 220O±20%, Balanced
  • Dynamic Range:
    • Phantom power: 107 dB or more
    • Battery: 98 dB or more
  • Signal-to-Noise Ratio *(3): 77 dB or more
  • Inherent Noise *(4): 17 dB SPL or less
  • Induction Noise From External Magnetic Field *(5): 0 dB SPL or less
  • Wind Noise *(6):
    • 50 dB SPL (without windscreen)
    • 45 dB SPL or less (with windscreen)
  • Maximum Input Sound Pressure Level *(7):
    • Phantom power: 124 dB SPL
    • Battery: 115 dB SPL
  • Connector: XLR-3-12C (male)
  • Mic Cable:
    • XLR-3 to XLR-3
    • 500 mm (19.7”)
  • Power Requirements:
    • External, DC 40 V to 52 V
    • Battery: 1.5 V
  • Dimensions *(8): f20 x 268 mm (f0.8 x 10.6”)
  • Weight:
    • Approx. 208 g (7.3 oz) with battery
    • Approx. 185 g (6.5 oz) without battery
  • Supplied Accessories:
    • Windscreen (1)
    • Stand adaptor (2)
    • Short LR cable (for camcorder use) (1)
    • Operating instructions (1)
    • Mic spacer (2)
    • Mic holder (1)

Notes
*(1) 0 dB = 1 V/Pa, at 1 kHz
*(2) Output impedance at 1 kHz
*(3) A-weighted, 1 kHz, 1 Pa.
*(4) 0dB SPL = 20? Pa.
*(5) dB SPL/1E-7 T, 0 dB SPL = 20? Pa.
*(6) Wind noise at 2m/s (0 dB SPL = 20?Pa.)
*(8) The values for dimensions are approximate

Back to top

Product Specification

Back to top
Back to top
Back to top
Product Code: 1632592-wex Manufacturers Part Number: ECM-674
