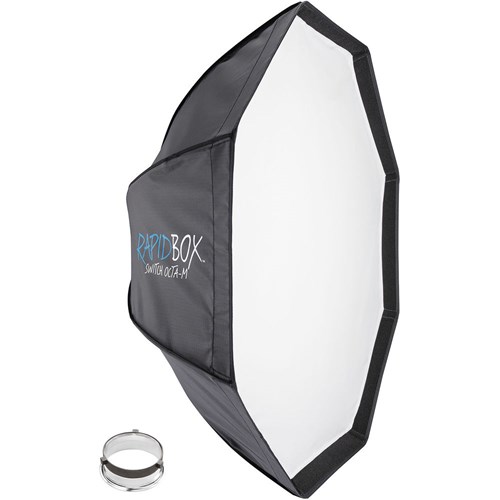

Westcott Rapid Box Switch Octa - Medium with Bowens Insert

FAQs:

What is the Westcott Rapid Box Switch Octa used for?

The 36” octagonal shape makes this softbox useful for portraits, headshots, fashion, advertising and corporate work. Placed close to the subject, its broad face spreads light across the face and shoulders, so shadow edges become less abrupt. The octagonal shape also creates a rounder catchlight than a square or rectangular modifier. This makes it a practical softbox when you want controlled, flattering light without using a very large modifier.

How does the Switch insert system work?

The Rapid Box Switch uses interchangeable inserts instead of a fixed-speed ring. The softbox frame stays the same, while the insert changes to match the flash or strobe you want to mount. This version includes the FJ400/Bowens insert, so it fits Westcott FJ400 and Bowens flash heads. When you change lighting systems, the insert can be swapped instead of replacing the whole softbox.

How does the diffusion system shape the light?

The removable inner baffle sits between the flash head and the front diffuser. When the strobe fires, the baffle catches the direct burst first and spreads it before the light reaches the front face. The front diffuser then scatters that light again across the full 36” surface. This two-stage diffusion reduces hot spots and gives smoother shadow transitions on faces, clothing and products.

How does the silver interior affect output?

The silver interior reflects more of the flash output forward instead of absorbing it inside the softbox. This sends more light through the baffle and front diffuser, which helps maintain brightness when the modifier is used close to the subject or with lower-powered heads. The diffusion fabric softens the light after that reflected output reaches the front. The result is soft light that still has enough strength for portrait and studio work.

Is the Rapid Box Switch Octa quick to set up?

Yes. The softbox uses an umbrella-style opening system, so the frame expands into shape without having to build it from separate rods each time. Once opened, the thumb-lock secures the mounted light in place through the insert. After shooting, the frame folds down for packing into the carry case. This is useful when moving between locations or setting up several modifiers in a studio.

Can I use a grid with this softbox?

Yes, the Rapid Box Switch Octa accepts an optional 40° grid. When fitted to the front, the grid blocks wider side rays from the diffuser and narrows the light's spread. This gives the softbox more direction and reduces spill onto the background or nearby surfaces. It is useful when you want soft wraparound light on the subject but need the beam to stay more contained.
