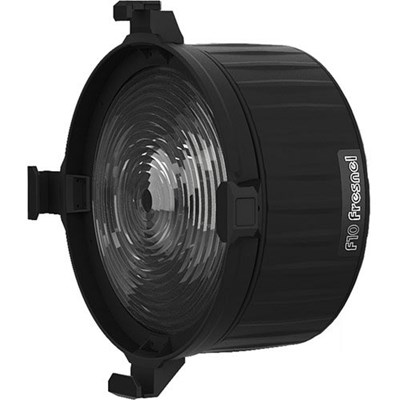

The Aputure F10 Fresnel is a 250mm diameter Fresnel lens made of real glass, tailor-made to fit traditional 10 inch Fresnel lights (tungsten 5K or 2500W HMI etc). This Fresnel is ideal for filmmakers who require a hard-light that maintains a subtle soft quality for enhanced dramatic expression. It uses Aputure's dual-lens optical design to further enhance output, allowing a smooth focusing of light (tight 15° to a 45° medium flood). When used with the compatible Aputure LS 600d, this Fresnel lens modifier can output over 200,000lux at 1 meter. Further to this, the Aputure F10 has the same adjustable focus design from the Fresnel 2X, focusing on precise and ergonomic adjustments on set. Another key feature is its built-in ventilation system to prevent overheating - also helping to minimise light leak. The F10 is compatible with the Aputure F10 Barndoors, a winning combination for professional gaffers and cinematographers.
Aputure F10 Fresnel - Bowens Mount Key Features:
- 200,000+ lux at 1 meter with the compatible Aputure LS 600d
- 15°-45° Variable Beam Angle
- 10" (25.4cm) Glass Fresnel Lens
- Impressive dual-lens optical design
- Compatible with the F10 Barn Doors
- Allows smooth focus adjustment
- Minimises light leaks
- Built-in ventilation system to avoid over-heating
- The largest professional Bowens Mount Fresnel lens available
What's in the box?
- 1 x Aputure F10 Fresnel - Bowens Mount
Aputure F10 Fresnel - Bowens Mount Product Video:
F10 Fresnel | User Guide
Which Aputure products is this Fresnel compatible with?
The Aputure F10 Fresnel is compatible with both the Aputure LS 600d Light and F10 Barn Doors.
What does a Fresnel lens do?
A Fresnel lens is a succession of concentric rings that form a short focal length on a flat surface. This is done by each ring having an element of a simple lens and assembling them in accordance with one another. Most common examples of Fresnel lenses can be found in lighthouses and searchlights, where the light is concentrated into a relatively narrow beam. In this case, the Aputure F10 is at home on a film set - used to create a hard-light that maintains a subtle soft quality for enhanced dramatic expression.
