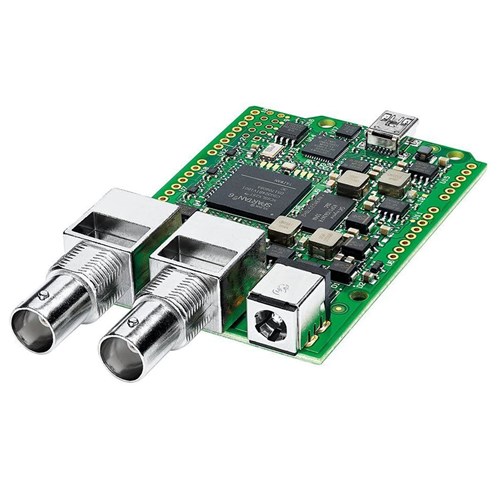

Blackmagic Design 3G-SDI Arduino Shield

The Blackmagic Design 3G-SDI Shield is designed for the Arduino controller to create a customised camera control solution. The shield fits the SDI control signal within the Program return feed to easily operate compatible cameras. Using the SDI shield and its open communication protocol, you can benefit from various controls, such as zoom, focus, gain, tally, detail, shutter, and contrast.

Blackmagic Design 3G-SDI Arduino Shield Key Features:

• Embeds the SDI control signal into the Program return feed for efficient working
• Send commands to the SDI devices and cameras using the shield’s sample code
• Designed for customised camera controls via an SDI camera control protocol
• Open communication protocol supports various camera controls
• Use zoom, focus, detail, tally, gain, shutter, iris, pedestal, colour balance, hue, & contrast
• Create customised solutions compatible with cameras, switchers, & other hardware
• Uses I2C bus interface for compatibility with micro controllers, such as Raspberry Pi
• Uses I2C bus interface for compatibility with micro controllers, such as Raspberry Pi
• Enables the creation of broadcast control solutions & complex automation
• Compact built with easy configurability

What's in the box?

• 1 x Blackmagic Design 3G-SDI Arduino Shield

FAQs:

What is the purpose of using this Arduino shield?

When the Arduino controller is connected to the Blackmagic 3G-SDI shield, you can build broadcast control solutions and complex automation for better camera functioning.

Which devices are compatible with the Blackmagic Design shield?

This Arduino shield is compatible with a range of cameras, such as URSA Mini, Blackmagic Studio camera, switchers, and microcontrollers like Raspberry Pi.

Which control functions are possible with this 3G-SDI shield?

Using the Blackmagic Arduino shield, you can control a range of camera functions, such as saturation, detail, shutter, tally, focus, zoom, gain, iris, colour balance, pedestal, hue, and contrast.

What is the I2C bus interface?

The I2C bus interface is a connection protocol that is embedded in the device for open communication. It makes the shield compatible with micro controllers.
