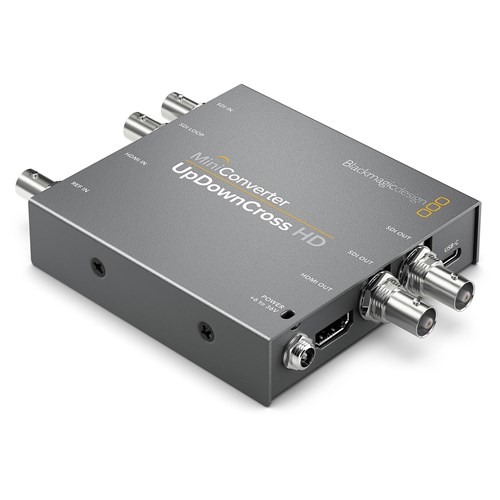

The Blackmagic Design Mini Converter UpDownCross HD is a powerful standards-converter that can be used to automatically cross-convert between any SD and HD video format. It uses high-quality Teranex algorithms and supports signals up to 1080p60. It is ideal for connecting HDMI computers to SDI projectors and supports scaling for computer DVI resolutions via the HDMI input.
Blackmagic Design Mini Converter UpDownCross HD Key Features:
- Incorporates a single 3G/HD/SD-SDI input and two 3G/HD/SD-SDI outputs
- Automatically detects the incoming signal format
- Automatically switches between the SD and HD signal formats
- Scales computer DVI resolutions enabling a connection between HDMI computer and SDI projector
- Requires a 12 VDC universal power supply
- Built-in mini switches for controlling and adjusting and settings
- Uses high-quality Teranex algorithms and supports signals up to 1080p60
- Uses high-quality Teranex algorithms and supports signals up to 1080p60
- Includes a reference input for built-in re-sync
- HDMI and SDI output become loop outputs when conversion processing is set to OFF
- Protects equipment from receiving an incorrect signal
- Multi-rate 3G-SDI connections for working in Level A and B devices
- Audio delay for perfect AV sync and timecode conversion
- Comes with an international socket adapter for all countries
- Weighs up to 247 grams
FAQs:
What is the supported power supply?
It requires a power supply of 12 VDC and comes with international socket adapters for all countries. The operational power range of the converter is 6 V to 36 V.
Does it support audio or video delay adjustments?
It ensures a perfect AV sync with the automatic audio delay feature of the converter. It does not allow for any adjustments to be made, meaning that if it comes out in sync, it will go out of sync. The delay can be up to 2 frames based on the conversion type.
What are the built-in switches for?
The built-in DIP switches are located on the top side of the converter and can be used to quickly change the settings. It provides the following settings: Processing OFF/ON, Level A and B 3G-SDI. The rest are used to determine the format and standard of the output signal.
How much does it weigh?
It weighs up to 247 grams and can be used anywhere. It is most suitable for outdoor use.
What are the environmental specifications?
It is recommended to use the converter at an operating temperature of 0-degree to 40-degree Celsius and a 0-90% non-condensing relative humidity. It can be stored within a temperature range of -20 degrees to 45 degrees Celsius.
Product Specification
| Type | Micro Converter |
