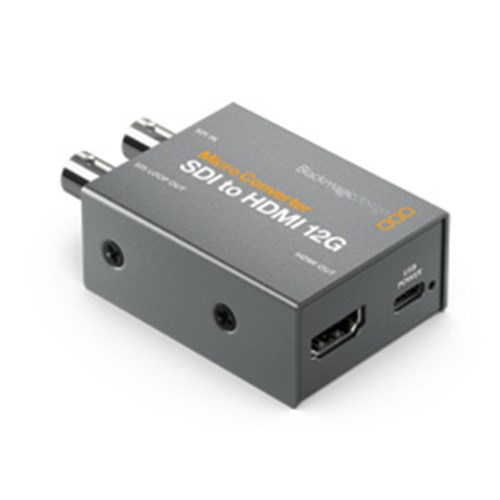

Blackmagic Micro Converter SDI to HDMI 12G
Product Code: 3023609

Blackmagic Micro Converter SDI to HDMI 12G

Variants
Loading...
£119.00 In Stock
Check stock near me

Back to top

Expanding their range of converters, Blackmagic introduces three Micro Converters. Each is impressively compact and highly portable making them the ideal choice for location shooting and broadcasting. Available in SDI to HDMI 12G, HDMI to SDI 12G and BiDirectional SDI/HDMI, each offers its own benefits to help to enhance your workflow. They include a USB connection for power and settings changes.

Blackmagic Micro Converter 12G Key Features:

  • Super-compact and highly portable design
  • Supports upgrading software via USB connection
  • 3D LUT for monitoring on SDI to HDMI model
  • Includes support for HDR via SDI and HDMI
  • Supports 12G-SDI and HDMI timecode standards
  • Features 12G-SDI technology with built-in SDI re-clocking
  • Camera control feature for Blackmagic ATEM switchers
  • Supports all video standards in NTSC, PAL, 720 HD, 1080 HD & 2160 Ultra HD
  • Three available models to best suit your workflow

Expanded Blackmagic Micro Converter 12G Key Features:

Blackmagic Micro Converter SDI to HDMI 12G

This model is designed for monitoring in all SD, HD, 4K and Ultra HD standards up to 2160p60. With a 17 point 3D LUT for colour calibrating monitors and the ability to output the 3D LUT on the 12G-SDI loop output, the Micro Converter SDI to HDMI 12G offers complete flexibility. In addition, the unit supports DCI film rates including 4Kp24, 4Kp47.95 and 4Kp48.

Blackmagic Micro Converter HDMI to SDI 12G

The second of three releases in this series, the Micro Converter HDMI to SDI 12G is the ideal unit for connecting HDMI cameras and computers to professional SDI equipment. Supporting film standards including 4Kp24, 4Kp47.95 and 4Kp48, this unit offers two 12G-SDI outputs for connecting to SD, HD or Ultra HD equipment, and supports 3G-SDI level A and B when working in HD.

Blackmagic Micro Converter BiDirectional SDI/HDMI 12G

Up last is the Micro Converter BiDirectional SDI/HDMI 12G. This unit, that’s perhaps the most versatile of the three, can convert in both directions, in different standards at the same time. You can convert SDI to HDMI and HDMI to SDI simultaneously and it has the added bonus of camera control protocol conversion support. This means that you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers.

What’s in the box?

  • 1 x Blackmagic Micro Converter 12G
  • 1 x Set International Socket Adapters

FAQs:

Does this kit include three converters?

This kit includes one converter. The three separately sold models in this series are as follows:

  • Blackmagic Micro Converter SDI to HDMI 12G
  • Blackmagic Micro Converter HDMI to SDI 12G
  • Blackmagic Micro Converter BiDirectional SDI/HDMI

What formats are supported?

All Blackmagic Micro Converter models support SDI formats including 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI and 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI and 2KPsF30 DCI. HDMI video standards include 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60. Plus 3G level A and B are supported.

Back to top

Product Specification

Type Micro Converter
