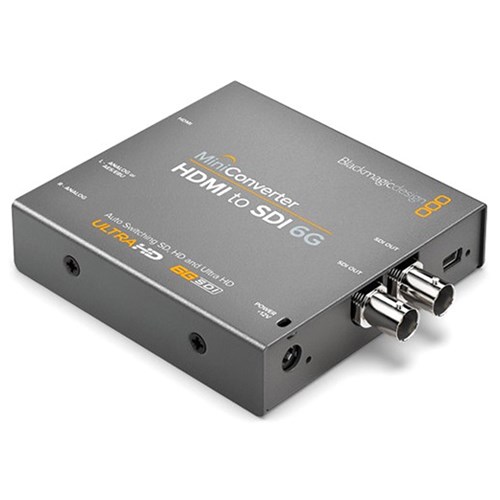

Blackmagic Mini Converter - HDMI to SDI 6G
The Blackmagic Design Mini Converter HDMI to SDI 6G converts the HDMI output from any video equipment, in SD, HD and Ultra HD video formats, to SDI. It provides you with the choice to embed audio from AES/EBU, HDMI or balanced analogue audio inputs. It also allows you to send video signals from HDMI over long SDI cables, making it ideal for post-production and professional AV applications.
Blackmagic Mini Converter - HDMI to SDI 6G Key Features:
- Can embed audio from HDMI, AES/EBU or balanced analogue audio inputs
- Features independent connections to embed the SDI audio
- Ideal solution for HDMI equipment such as a HDV camera or games console
- Used for post-production, broadcast and professional AV applications
- Automatically detects and switches the input video format
- Includes 2 6G-SDI outputs supporting HD and SD-SDI signals
- Both the 6G-SDI outputs send duplicate signals
- Both the 6G-SDI outputs send duplicate signals
- Features 2 1/4” input jack connectors for embedding audio
- Supports 4 channels of AES/EBU digital audio and 2 channels of analogue audio
- Enables you to control and adjust the settings using mini switches
- The USB port enables the firmware to be updated
- Powered by a 12 VDC supply and comes with international socket adapters
- Provides 4:2:2 colour precision and sampling
FAQs:
How is the converter powered up?
The converter needs an external power of 12 V and comes with international socket adapters for all countries.
What is the processing delay?
The converter needs an external power of 12 V and comes with international socket adapters for all countries.
What is the processing delay?
The processing delay of this converter is approximately 4 lines and approximately a frame when down-converting.
Which embedded audio channels are supported by the converter?
It allows the embedding of 2 channels of analogue audio and 4 channels of AES/EBU digital audio using the 2 1/4" input jack connectors or the HDMI input.
What are the environmental specifications and how much does it weigh?
The metal housing of the converter makes it sturdy but only weighs 244g. It is recommended to use the converter at a temperature range of 0-degree to 40-degree Celsius, and 0%-90% non-condensing relative humidity. The converter can be stored at a temperature of -25 degrees to 45 degrees Celsius.
Product Specification
| Type | Micro Converter |
