Product Code: 1642290

Blackmagic Mini Converter - SDI to HDMI 4K 6G

Usually available in 5-7 days

Free delivery also available - more info

£174.00

1x Blackmagic Mini Converter - SDI to HDMI 4K 6G Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top

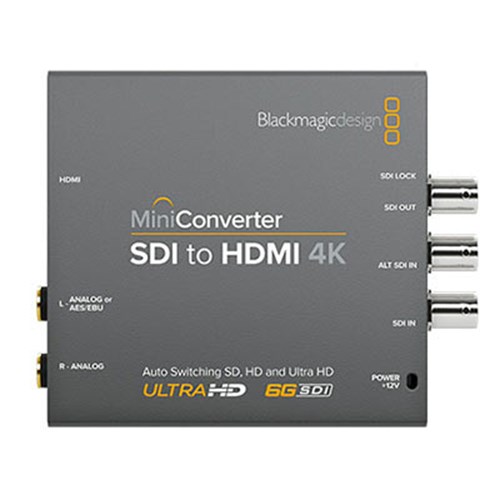

Convert an SD, HD, 3G, or 6G-SDI video source to SD, HD, and UHD HDMI with the Blackmagic Mini Converter – SDI to HDMI 4K. The converter also allows the user to de-embed SDI audio to HDMI, AES/EBU, or balanced analogue out. Using this converter you can send a signal from an SDI source to a 4K television or monitor, allowing you to use large screens and projectors for video monitoring.

Key Features: Blackmagic Mini Converter – SDI to HDMI 4K

  • Connections:
    • SDI Video Inputs: 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails
    • SDI Video Outputs: 1 x SDI Video Loop Output
    • HDMI Video Outputs: HDMI type A out
    • Analogue Audio Outputs: 2 channels of balanced analogue audio
    • Digital Audio Outputs: 2 channels of AES/EBU digital audio
    • SDI Redundant Input: Automatically switches over if main SDI input is lost
    • Multi Rate Support: Auto detection of SD, HD or 6G-SDI
    • Updates and Configuration: USB
    • Reclocking: Yes
  • Standards:
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
    • 4K Video Standards: 4K DCI 24p
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
    • SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI and 6G-SDI
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    • SDI Colour Precision: 4:2:2 and 4:4:4
    • SDI Colour Space: YUV and RGB
    • SDI Auto Switching: Automatically detects SD, HD or 6G-SDI
    • HDMI Video Standards: 625i50 PAL , 525i59.94 NTSC,720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
    • HDMI Colour Space: YUV and RGB
    • HDMI Colour Precision: 4:2:2 and 4:4:4
  • Software:
    • Software Control: Mac OS X™ and Windows™ software upgrade via USB
    • Internal Software Upgrade: Via included updater application
  • Operating systems: MacOS 10.12 Sierra or later, Windows 8.1, Windows 10
  • Power requirements:
    • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point
    • Power Consumption: 5.2 Watts
    • Operational Voltage Range: 12-31V DC
  • Dimensions: 114.25 x 92.27 x 23mm
  • Weight: 257g
