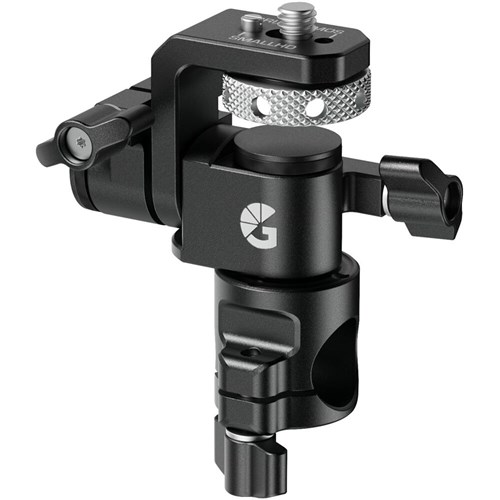

Bright Tangerine Universal Monitor Mount (1/4in-20 Top, 15mm Rod Base)

​​Bright Tangerine Universal Monitor Mount (1/4in-20 Top, 15mm Rod Base) Key Features:

• Supports onboard monitors up to 2.5kg
• 1/4"-20 top screw with locating pin support
• 15mm single rod port base for flexible mounting
• Independent 360° pan and 180° tilt adjustment
• 90° tactile click stops for quick levelling
• Locating pins fit major monitor standards
• Low-profile aluminium alloy construction
• Expandable with Bright Tangerine top bars and handles

Expanded ​​Bright Tangerine Universal Monitor Mount (1/4in-20 Top, 15mm Rod Base) Key Features:

Flexible 15mm rod mounting

The integrated 15mm rod port allows you to position your monitor anywhere along a compatible rod. This gives freedom to mount directly off a top handle, offset it from a top plate or build out a more ergonomic viewing position using compatible brackets and support components. Once the winged clamp is tightened, the mount remains secure, keeping the monitor stable during handheld or shoulder-mounted work.

Controlled pan and tilt

The bracket offers independent 360° pan and 180° tilt, allowing you to adjust viewing angles quickly without affecting the rest of your setup. Tactile feedback clicks every 90° rotation help you return to level with confidence, useful when switching between orientations or resetting between takes. The no-slack design ensures the monitor moves only when adjusted, reducing the risk of unwanted droop.

Anti-twist security

The 1/4"-20 top screw supports locating pins for popular monitor standards, helping prevent the display from twisting under load. This keeps the screen aligned and reduces the need for frequent re-tightening during longer shoots.

Compact and modular

Weighing just 90.7g and measuring 6.1 to 7.9cm tall, the mount keeps a tidy profile on your rig while supporting monitors up to 2.5 kg. As part of Bright Tangerine’s modular ecosystem, it can be paired with compatible top bars and handles to create a clean, ergonomic monitor setup across different camera builds.

What's in the box?

• 1 x Bright Tangerine Universal Monitor Mount (1/4"-20 Top, 15mm Rod Base)
• 1 x Limited 2-Year Manufacturer Warranty

FAQs:

How secure is the 15mm rod base during active shooting?

The single 15mm rod port clamps firmly once the winged lever is tightened, holding position without creeping along the rod. On shoulder rigs or handheld builds, it stays put provided the rod itself is properly secured. Because you can slide it along the rod before locking it down, it also makes fine positioning straightforward without compromising stability.

Does the 1/4"-20 top screw prevent monitor rotation?

The top screw supports locating pins for major monitor standards, which help prevent the display from twisting once mounted. When aligned correctly with compatible monitors, this significantly reduces rotation under load. For longer takes or frequent repositioning, it helps keep the screen square without constant re-tightening.

How does the pan-and-tilt mechanism support heavier monitors?

The mount is rated for monitors up to 5.5 lb, which covers most 12.7 to 17.8cm onboard displays. Pan offers full 360° rotation, and tilt covers 180°, with each axis locking independently. Once tightened, the no-slack design holds the angle without droop, even when adjusting operator position or moving between setups.

Are the 90° click stops genuinely useful in practice?

Yes. The tactile 90° clicks provide a reliable reference when returning to level, especially after rotating the monitor for portrait framing or an unusual viewing angle. It saves time compared to visually re-levelling the display and is particularly helpful when working quickly between takes.

When would I choose a 15mm rod base over a direct 3/8"-16 mount?

A 15mm rod base gives more flexibility in monitor placement, as you can slide the mount along the rod to fine-tune viewing position. This is useful on modular builds where handles, EVFs and wireless units compete for space. It suits operators who prefer to adjust the monitor height or offset rather than fix it to a single threaded point.
