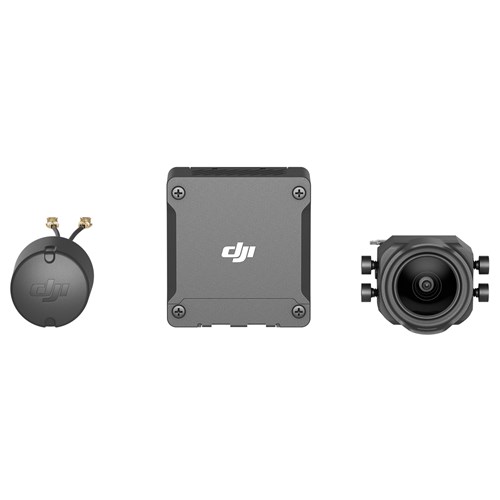

DJI O3 Air Unit

Designed for drone racers and FPV pilots, the DJI O3 Air Unit has everything you need to develop your own FPV system. This unit consists of a camera module, transmission module and antenna that together provide 1080p/100fps video feeds with 30ms low latency, and anti-interference signals that allow a 10km maximum flight range. Also included is a 3-in-1 cable that transmits power and signal.

DJI O3 Air Unit Key Features:

• Compact and lightweight module and camera for drones
• Large 1/1.7-inch CMOS sensor takes 48MP images
• Capture crystal-clear 4K/60fps or 2K/100fps video
• 1080p/100fps video transmission with 30ms low latency
• 10km maximum transmission range extends flight distance
• Wide 155° field of view offers more expansive shots and footage
• F2.8 aperture and ISO 100-25600 ensure great low-light results
• D-Cinelike Colour Mode offers better colour grading options
• Transmission module provides long-distance, low-latency signal
• Dual-band antenna with anti-interference and long-transmission capability
• 3-in-1 cable quickly attaches to the air unit and provides power and signal
• 20GB of built-in storage and support for 256GB microSD cards

Expanded DJI O3 Air Unit Key Features:

Flagship Video Transmission

Thanks to DJI O3 Video Transmission, the DJI O3 Air Unit boasts powerful video transmission capabilities to make flights more immersive but also safer. An ultra-low latency video transmission of 30ms ensures you always get a crisp video feed as well as responsive movements from your drone. A maximum video transmission range of 10km allows you to explore with your drone and cover more expansive areas. A clean 50Mbps maximum bitrate can be achieved in live feeds, and a 1080p/100fps, H.265 video transmission can be achieved when using DJI Goggles 2.

Next Level Visuals

The DJI 03 Air Unit features upgraded imaging specifications for drone pilots to capture truly spectacular footage. Its large 1/1.7-inch CMOS sensor is capable of taking 48MP images, as well as ultra-HD 4K/60fps footage for truly immersive FPV video. A super-wide 155° field of view allows you to capture more of the landscape around you, and a D-Cinelike Colour Mode makes colours more vibrant and opens up creative options when colour grading. The camera can also be used with DJI Avata ND Filters to allow different contrast, aperture and exposure options.

What’s in the box?

• 1 x DJI O3 Air Unit Camera Module
• 1 x DJI O3 Air Unit Transmission Module
• 1 x DJI O3 Air Unit Antenna
• 1 x DJI O3 Air Unit 3-in-1 Cable

FAQs:

Which goggles can I use with the Air Unit?

The DJI O3 Air Unit can be piloted using the DJI Goggles 2 and DJI FPV Goggles V2.

How much do the camera and unit weigh?

Together the camera and Air Unit weigh 36.4g, and the antenna weighs approximately 3g.
