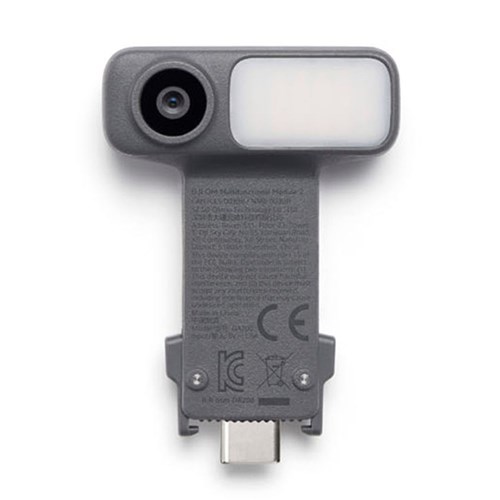

The DJI OM Multifunctional Module 2 is a compact tracking and fill light accessory for the DJI Osmo Mobile 8P. Attach it to the gimbal, and it gives the setup its own smart-tracking view, so it can follow people, pets, vehicles, and selected objects across supported camera and streaming apps. The built-in fill light adds close-range illumination with adjustable brightness and colour temperature for self-recording, calls and livestreaming.
DJI OM Multifunctional Module 2 Key Features:
- Compact tracking and fill light module for DJI Osmo Mobile 8P
- Tracks people, cats, dogs, vehicles and selected objects
- Sends module live view to Osmo FrameTap for remote framing
- Tap-to-track control starts subject tracking from the Osmo FrameTap
- Gesture control starts tracking when filming in front of the camera
- Built-in fill light provides eight brightness levels for close recording
- 2500 to 6500 K colour range shifts from warm to cool
- 40 lux maximum output suits close-up faces and video calls
- Flippable mounting supports front-camera and rear-camera tracking
- USB-C port supports phone charging through the gimbal setup
- Weighs just 13g, keeping the Osmo Mobile setup compact
- Works with native camera, livestreaming and video conferencing apps
FAQs:
What does the DJI OM Multifunctional Module 2 do?
The DJI OM Multifunctional Module 2 provides a separate smart tracking system and a built-in fill light for the DJI Osmo Mobile 8P gimbal. Once attached, it can follow people, cats, dogs, vehicles and selected objects by feeding subject information to the gimbal, which then turns to keep the subject in frame. It can also send its live view to the Osmo FrameTap device, so you can see what the module is tracking and tap a detection box directly from the remote screen. This feature is especially useful when the phone is on the gimbal tripod and you are filming yourself from in front of the camera.
How is the module different from tracking in the DJI Mimo app?
The DJI Mimo app uses ActiveTrack 8.0, while the DJI OM Multifunctional Module 2 provides smart tracking for the gimbal through the module itself. That means the module can support tracking when you are using native camera apps, livestreaming apps, video calls and supported third-party camera apps.
How does the fill light work?
The built-in fill light gives eight brightness levels and eight colour-temperature settings. Its 2500-6500 K range lets you move from a warmer look to a cooler, daylight-style setting, depending on the room lighting or the look you want on skin. Maximum output is rated at 40 lux at 0.6 m, so it is mainly for close-up recording, livestreaming, and video calls rather than for lighting a wider scene. When used with the Osmo FrameTap, you can adjust the fill light from the remote instead of reaching for the phone or module.
Can it track with both front and rear cameras?
Yes. The module can be removed, flipped and reattached so it faces the direction you need. When it faces you, it can support self-recording using either the front or rear camera, depending on your setup. When flipped the other way, it can follow subjects in front of the phone, such as a person, pet, vehicle or selected object. This physical flip is what changes the module’s tracking direction.
Product Specification
| Accessory Power Connections | USB-C port supports phone charging via Osmo Mobile 8P setup |
| Connections | Connects to DJI Osmo Mobile 8P; sends live view to Osmo FrameTap |
| Mobile Software Requirements | Works with DJI Osmo Mobile 8P setup, DJI Mimo, and supported apps |
| Operational Modes | Smart tracking; fill light adjustment; front/rear tracking by flipping module |
| Weight | 13g |
