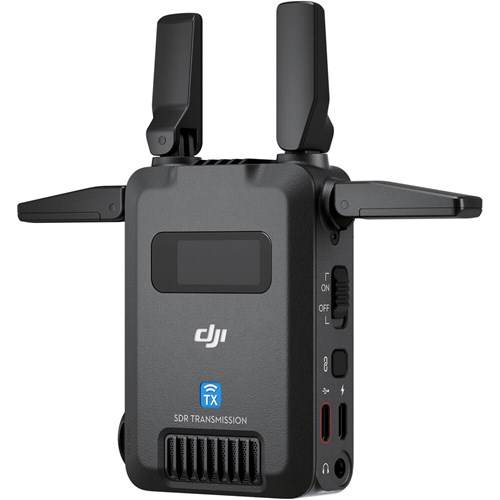

DJI SDR Transmission Transmitter
Product Code: 3184144

DJI SDR Transmission Transmitter

was: £285.00 £240.00 Special Order
Check stock near me
Back to top

DJI's SDR Transmission Transmitter delivers footage up to 1080p60 using proprietary SDR technology. It employs a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, ensuring high penetration and up to 1.9 miles range. Ideal for crowded sets or dense architecture, pair this transmitter with an SDR receiver (not included) for optimal performance.

DJI SDR Transmission Combo Key Features:

  • Utilises advanced SDR technology for robust and flexible signal transmission
  • Operates on multiple frequencies with automatic hopping to avoid interference
  • Supports high-definition video transmission up to 1080p at 60 frames per second
  • Capable of transmitting signals over long distances up to 1.9 miles
  • Offers versatile modes for both video broadcast and camera control
  • Fully compatible with DJI Ronin gimbals for integrated operation
  • Provides multiple connection options, including HDMI, SDI, and USB-C
  • Transmits video at 20 Mb/s for superior image quality
  • Ensures minimal delay with a latency as low as 35 milliseconds
  • *Requires the DJI SDR Transmission Receiver

How to Use the DJI SDR Transmission Transmitter

Broadcast Mode

In this mode, you can add an unlimited number of additional SDR receivers to your system. It also supports rapid switching between multiple camera indexes and offers Wi-Fi support for one or two flexible monitoring alternatives as needed.

Control Mode

This mode supports stabiliser control (virtual joystick, gimbal recentering, etc.) and camera control (PTP control and Sony camera virtual menu).

Additional Extras

Additional features include a built-in status display, transmission of footage and metadata, DJI Ronin compatibility, 35ms low latency, a high bit rate of up to 20 Mb/s, and outputs for HDMI, SDI, and USB-C.

What’s in the box?

  • 1 x DJI SDR Transmission Transmitter
  • 1 x Transmitter Gimbal Mounting Adapter Plate
Back to top

Product Specification

Audio Formats Audio: 1x 1/8" / 3.5 mm Output
Dimensions 86.5×64×32 mm (L×W×H, excluding antennas)
Input | Output 1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input 1x USB-C (Unspecified Signal) Input
Mounting Gimbal mount
Power Input NP-F Battery Power Supply Voltage: 6.8-8.4 V
Supported Video HDMI/SDI/USB 1080p: 60
Transmission DFS, 2.4 & 5.8 GHz with Auto Hopping
Weight 145g
