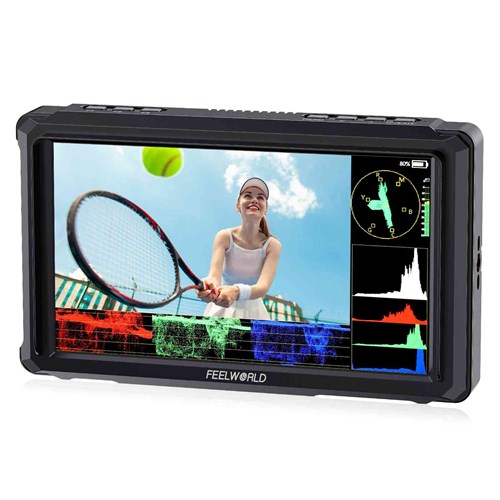

Feelworld FW568 Pro 6 inch Field Monitor
Product Code: 3314579

Feelworld FW568 Pro 6 inch Field Monitor

£139.00 Limited stock - selling fast
Check stock near me

Back to top

The Feelworld FW568 Pro is a 6-inch Full HD on-camera field monitor with a 1200-nit high-brightness IPS screen designed for DSLR and mirrorless video work. The compact, lightweight body keeps rigs balanced on gimbals while the bright display remains visible outdoors. Built-in LUT support, waveform tools, and 4K HDMI input make it easier to judge exposure, colour, and focus accurately during handheld or run-and-gun shooting.

Feelworld FW568 Pro 6 inch Field Monitor Key Features:

  • 6-inch Full HD field monitor with 1200-nit daylight-viewable IPS screen
  • Lightweight 204g design suited to gimbals, cages and compact rigs
  • 4K HDMI input and output support signals up to 4K 60p
  • Built-in waveform, vectorscope and histogram for exposure monitoring
  • Loads custom 3D LUTs for on-set colour preview
  • HDR monitoring with HLG profiles for wider dynamic range display
  • Custom shortcut buttons give fast access to monitoring tools
  • 9:16 frame markers support vertical video recording
  • DC output powers compatible DSLR or mirrorless cameras
  • NP-F battery plate and DC input for flexible power options
  • Multiple 1/4-inch mounting points for camera or rig use
  • Mini hot shoe adapter allows quick mounting with tilt and rotation
  • Supplied sunhood improves screen visibility in bright light

Bright 6-inch screen for on-camera monitoring

The FW568 Pro uses a 6-inch Full HD IPS panel that gives a clear, detailed view when working with DSLR or mirrorless cameras. 4K HDMI input and output support signals up to 4K 60p, allowing the monitor to sit in line between the camera and another display or recorder without slowing the signal. The resolution is high enough to check focus properly, and the wide viewing angle helps when the monitor is mounted on a cage, gimbal or magic arm where you are not always directly in front of the screen.

With a brightness rating of 1200 nits, the screen remains visible in strong daylight without relying entirely on the included sunhood. The brightness makes a noticeable difference when shooting outdoors or in strong lighting, where standard camera screens can be difficult to read, and exposure judgment becomes unreliable.

LUT support, scopes and HDR preview

The monitor includes the kind of assist tools normally found on larger production monitors. You can load custom 3D LUT files for colour preview, use waveform, vectorscope and histogram for exposure checks, and enable HDR monitoring with HLG profiles to see a wider tonal range. These tools make it easier to keep footage consistent without needing a separate external scope.

Compact body for gimbals and small rigs

At around 204g, the FW568 Pro keeps the overall weight down when mounted on smaller cameras. The lightweight build is useful on gimbals or handheld rigs where heavier monitors quickly affect balance. Physical buttons on top of the monitor give direct control over menus, and the three custom keys can be set to the functions you use most often, saving time when working quickly.

Flexible power and mounting options

The monitor can run on NP-F batteries, DC input or USB-C power, so it fits easily into different setups, from simple handheld shooting to longer studio sessions. A DC output can also supply power to some cameras, reducing the number of batteries you need on the rig. Standard 1/4-inch threads on the bottom and side make it easy to mount in different positions depending on the camera you are shooting with.

What’s in the box?

  • 1 x Feelworld FW568 Pro 6 inch Field Monitor
  • 1 x HDMI Cable
  • 1 x Micro HDMI Cable
  • 1 x Sunshade
  • 1 x Mini Hot Shoe Mount+Hex Wrench
  • 1 x USB-A to USB-C Adapter
  • 1 x Cable Management Tie
  • 1 x Manual

FAQs:

Does the FW568 Pro support 4K input from modern cameras?

Yes. The monitor accepts HDMI signals up to 4K 60p (4096x2160 or 3840x2160), which means it works with current DSLR and mirrorless cameras. The signal is downscaled for the Full HD screen, but you still get accurate framing, focus and exposure tools.

Can I load my own LUTs onto the monitor?

Yes. The FW568 Pro allows up to 32 custom 3D LUT files to be loaded using the USB adapter and the Type-C connection. You can store multiple LUTs and switch between them when monitoring, which is useful when shooting Log or matching a specific colour grade.

How is the monitor powered during shooting?

You can use NP-F batteries on the rear plate, connect a DC power supply, or power the monitor via USB-C. This makes it easy to run the monitor on small handheld rigs or power it continuously when working on longer shoots.

Is the FW568 Pro suitable for gimbal setups?

Yes. The monitor weighs just over 200g, which keeps the load low when mounted on smaller cameras or stabilisers. Because of the lightweight build, it is easier to balance the gimbal and keep the setup comfortable during longer takes.

Does the monitor include exposure and focus assist tools?

Yes. It includes waveform, vectorscope, histogram, peaking, framing guides and audio level display. These tools help you check focus, exposure and signal levels directly on the monitor without needing a separate external scope.

Back to top

Product Specification

Aspect Ratio 16:9
Audio Monitoring Stereo Headphone
Brightness 1200cd/m²
Contrast Ratio 1000:1
Dimensions 161 x 96 x 33.3 mm
Included Accessories HDMI Cable, Micro HDMI Cable, Sunshade, Mini Hot Shoe Mount+Hex Wrench, USB-A to USB-C Adapter, Cable Management Tie
Input | Output 1 x HDMI 2.0, 1 x Type-C | 1 x HDMI 2.0, 1 x DC Output
LUT Support Yes
Panel Type IPS
Power Consumption ≤11W
Power Options DC, NP-F Battery, Type-C
Resolution 1920x1080 pixels
Screen Size 6"
Weight 204g
