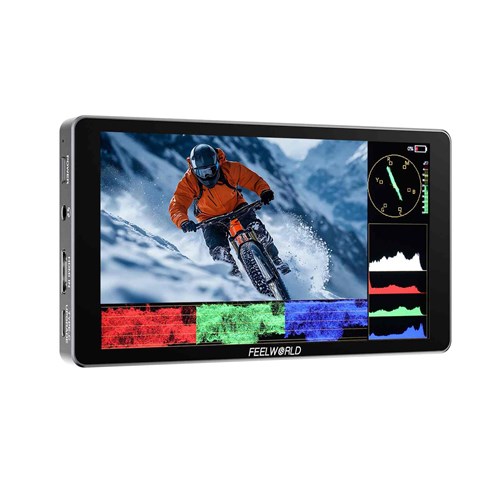

Feelworld P6XL 6 inch Field Monitor

Feelworld P6XL 6 inch Field Monitor Key Features:

• 6-inch Full HD field monitor with built-in rechargeable battery design
• 1200-nit brightness keeps image visible in daylight and bright locations
• Integrated 22.2Wh battery powers monitor without external battery plates
• Lightweight 332 g body suits gimbals, handheld rigs, and compact cameras
• Touchscreen interface gives fast control of monitoring functions
• Supports custom 3D LUT loading for colour preview on set
• Built-in waveform, vectorscope and histogram for exposure monitoring
• 4K HDMI input supports signals up to 2160p30
• USB-C charging supports PD fast-charge power sources
• Screenshot and overlay function help match framing between shots
• 3.5 mm headphone output allows direct audio monitoring
• Mini hot shoe mount adapter allows quick angle adjustment on camera rigs
• Supplied sunhood improves visibility in strong outdoor light

Built-in battery design for lighter rigs

The P6XL is designed around a built-in 22.2 Wh battery, removing the need for NP-F plates or external packs on the back of the monitor. This keeps the overall weight down to 332g and avoids the usual front-heavy balance you get when mounting a monitor on a small camera or gimbal. The internal battery lasts around two hours at full brightness, which is enough for most short setups, and charging is handled through the USB-C port, so it can be powered from a mains charger or power bank without extra accessories.

Bright 6-inch screen for outdoor shooting

The 6-inch IPS panel uses a Full HD 1920x1080 resolution with a 1200-nit backlight, which makes a noticeable difference when working outside. You can check focus and exposure without constantly shading the screen, and the included sunhood helps when working in direct sunlight. Wide viewing angles also make it easier to see the image when the monitor is mounted high, low, or off to one side of the camera.

Touchscreen control with full monitoring tools

The touchscreen interface allows quick access to exposure and focus tools without having to dig through buttons. Waveform, vectorscope, histogram, peaking and audio meters are all built in, so you can monitor signal levels directly from the monitor instead of relying on the camera display. The P6XL also supports screenshot capture and image overlay, letting you store a frame to USB and place it over the live image to check framing or alignment, which is useful when matching shots or keeping composition consistent between takes.

LUT support and HDR preview

The P6XL can load custom 3D LUT files through USB, allowing you to preview a graded look while recording in log profiles. Up to 32 LUTs can be stored, and the monitor also includes built-in De-log and HLG HDR modes to help judge contrast and colour more accurately on set. With these features, the P6XL makes it easier to match cameras or check the final look before recording.

4K HDMI input with audio monitoring

The monitor accepts HDMI signals up to 4K 30p and works with DSLRs, mirrorless cameras and video rigs. A 3.5 mm headphone output allows direct audio monitoring from the incoming signal, which is useful when the camera is mounted out of reach. The standard 1/4-inch mount and supplied hot-shoe adapter make it easy to position the monitor on cages, gimbals or cold-shoe mounts.

What’s in the box?

• 1 x Feelworld P6XL 6 inch Field Monitor
• 1 x A-A HDMI Cable
• 1 x Micro HDMI Cable
• 1 x USB-A to USB-C Cable
• 1 x Mini Hot Shoe Mount+ Hex wrech
• 1 x USB-A to USB-C Adapter
• 1 x Sunshade + Frame
• 1 x Cable Management Tie
• 1 x Manual

FAQs:

Does the Feelworld P6XL need external batteries?

No. The monitor has a built-in 22.2Wh battery, so it can run without NP-F or V-mount batteries. This keeps the monitor lighter and makes it easier to use on small cameras or stabilisers. It can also be powered or charged via USB-C using a compatible 9 V charger or power bank.

Is the screen bright enough for outdoor filming?

The P6XL has a rated brightness of 1200 nits, which is high enough for most daylight shooting. In strong sunlight, the supplied sunhood helps reduce glare and improve contrast, making it easier to judge focus and exposure compared to a standard camera screen.

Can I load LUTs onto the P6XL?

The monitor supports custom 3D LUT files loaded from a USB drive via the USB-C port. You can store up to 32 LUTs, and the monitor also includes built-in De-log and HLG HDR presets for quick preview when shooting log or HDR footage.

Does the P6XL work with gimbals and small rigs?

Yes. The low weight and slim body make it well-suited to gimbal use, where heavier monitors can affect balance. Because the battery is built in, there is no extra weight hanging off the back, which helps keep stabilisers properly balanced.

Can the monitor display waveform and exposure tools simultaneously?

The monitor can display waveform, vectorscope, histogram and audio meters individually or together, allowing you to check exposure, colour, and audio levels directly on the monitor. The display can be useful when the camera’s own display offers limited monitoring options.
