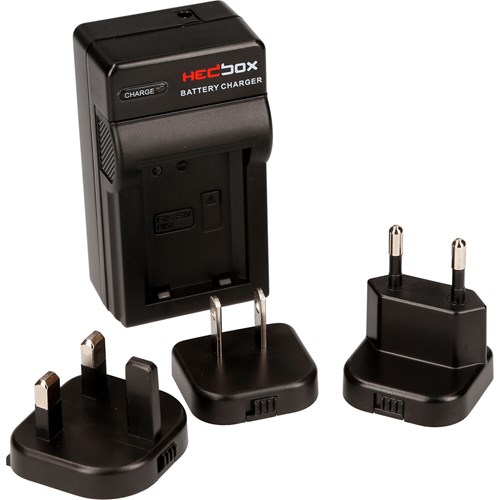

Hedbox RP-DC30 Traveller Battery Charger

The RP-DC30 digital compact traveler battery charger conveniently charges all kinds of batteries, drawing power from either an AC wall source or a 12V DC power source. Using easily interchangeable plates, the compact charger can be used for world-wide brand battery models.

Hedbox RP-DC30 Traveller Battery Charger Key Features:

• RP-DC30 Traveler Battery Charger
• AC Power In: AC 110 – 240V , 50/60Hz
• DC 3.6V – 8.4V. 800 mA (Max) (auto-change the voltage according to the installed optional charging plate)
• RP-DC30 use optional changing plates according to the Battery Pack Manufacturer and Model
• DC Power Input: DC 12V / 25W
• Dimensions (WxDxH): 90 x 50 x 35 mm
• Charging Type: Ni-CD , Ni-MH , Li-Ion

2-step LED Indicator Display

2 Colour LED display shows the charge status of the battery. Red indicates recharging while green indicates fully charged.

Exchangeable Power Plugs

With exchangeable international ( Eu-Euro, US-America, UK-United Kingdom) power plugs, the travel sized RP-DC30 can be used world-wide.

Just simply use the appropriate snap-in supplied power plug model, with respect to the AC power standard you are located in, and begin charging your batteries.

Charging Technology

Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precise control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage is used. The charging cycle is initiated with a low current. If there is no corresponding rise in the battery voltage, it indicates that there is possibly a short circuit in the battery (zero volt activation). Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries. When a lithium battery is nearly empty, we take constant current to charge it. Charger CPU automatically adjusts charging current to be lower than the max charging current that the battery can accept. With constant charging, the voltage of the battery rises slowly until it reaches a maximum voltage at which point the charger switches the charging method to “constant voltage” and reduces the charging current. When the battery is fully charged, this state is stopped.

In Car Use

With a 12V-24V DC power source (DC 12V car charger sold separately) you can use the charger in a car, plane, bus or any location with a 12V-24V DC power supply.

What’s in the box?

• 1 x RP-DC30 Battery Charger
• 1 x AC Power US Plug
• 1 x AC Power UK Plug
• 1 x AC Power EU Plug
• 1 x 12V DC Car Power Cable
• QR Code Card - User Manual
• 2 Year Limited Warranty
