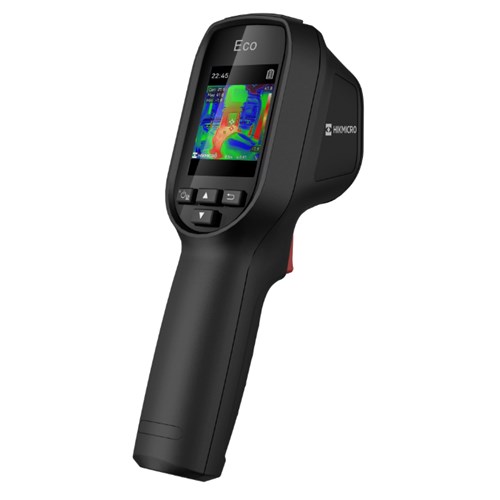

HIKMICRO ECO Thermal Imaging Camera

The HIKMICRO ECO is a compact handheld thermal imaging camera designed for efficient detection of insulation issues, leaks, and temperature anomalies. With a native 96 × 96 thermal resolution upscaled to 240 × 240 via SuperIR, and a wide 50° field of view, it delivers accurate spot temperature readings from -20°C to 550°C. Its durable build, 8-hour battery life, and 4GB memory make it ideal for all-day field use.

Key Features:

• 96 × 96 thermal resolution, upscaled to 240 × 240 with SuperIR
• Six colour palettes including White Hot, Ironbow, and Fusion
• 50° field of view and 0.1 m minimum focus distance
• Measures temperatures from -20°C to 550°C with ±2°C / ±2% accuracy
• Class II laser pointer highlights centre measurement spot
• Built-in 4GB memory stores up to 30,000 images
• 2.4" LCD screen with 240 × 320 resolution
• Full-screen radiometric image capture with centre/hot/cold spot analysis
• IP54 rated and drop tested to 2 m for durability
• Up to 8 hours continuous runtime with auto power-off modes

What’s in the box?

• 1 x HIKMICRO ECO Thermal Imaging Camera
• 1 x USB 2.0 A to USB Type-C Cable
• 1 x Quick Start Guide
• 1 x Calibration Certificate

FAQs

How accurate is the HIKMICRO ECO?

The ECO offers ±2°C or ±2% temperature accuracy across a -20°C to 550°C range. It supports full-screen measurement with automatic hot/cold/centre spot detection, and includes a Class II laser for marking centre points during scans.

Can I save and review images on the ECO?

Yes, it features 4GB of built-in memory capable of storing approximately 30,000 radiometric images. Captured images include full measurement data, and the 2.4" LCD makes it easy to review them on-site.

What makes SuperIR beneficial on this model?

SuperIR enhances the native 96 × 96 thermal resolution to 240 × 240 pixels, giving clearer, more detailed imagery without increasing file size. This allows for easier identification of subtle temperature differences and fault areas.

Is the HIKMICRO ECO suitable for field work?

Absolutely. The rechargeable battery lasts up to 8 hours, and the camera is drop tested to 2 m and IP54 rated, ensuring it can withstand demanding environments. Auto power-off modes help conserve battery during breaks.
