Product Code: 1710775

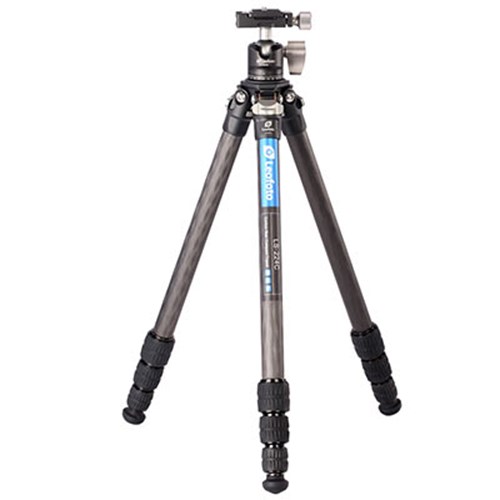

Leofoto Ranger LS-224C Tripod + LH-25 Ball Head

In Stock

10 Year Warranty
Register your product for 10 year warranty. Register
£199.99

1x Leofoto Ranger LS-224C Tripod + LH-25 Ball Head Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The Leofoto Ranger LS-224C Mini Tripod is the big bother of the LS-223C. It features a lightweight design and is easily transportable. The LS-224C Mini Tripod legs are longer and have a larger working height without being collapsed awkwardly. The tripod comes with the ultra-compact Leofoto LH-25 headset, a carrying case, multitool as well as a set of stable spikes.

Leofoto Ranger LS-224C Mini Tripod Key Features:

  • Includes a 1/4”-20 and 1/8”-16 thread mounting stud
  • Comes with extra installing options with a thread of 1/4”-20
  • The tripod design features a reinforced leg lock system
  • Maintenance-free and unique lock system
  • Large Diameter Teardrop Shaped Feet
  • 10x Layers carbon fibre tube for extra durability

Expanded Leofoto Ranger LS-224C Mini Tripod Key Features:

LH-25 Ball Head

The ball head features a panning base diameter of 36mm and a UNC3/8-inch-16 mounting hole. It also comes with a PU25 Plate. As with most Leofoto ball heads this one is also constructed from Aluminium for a robust, ultra-compact experience. In addition to this it is the lightest and smallest ball head in the Leofoto LH series. The LH-25 Ball Head has an Arca-Swiss compatible plate with a 3/8” tripod screw as well as a removable 1/4” adapter that allows the ball head to fit most tripods on the market.

Large Diameter Teardrop Shaped Feet

Tripod legs incorporate a large diameter teardrop shaped feet that keep the leg sidewalls from touching the ground. They help to make positive contact with the ground at virtually any angle. This is true even when the tripod is at its lowest setting.

What’s in the box?

  • 1 x Leofoto Ranger LS-224C Mini Tripod
  • 1 x LH-25 Ball Head
  • 1 x Carry Case
  • 1 x Strap
  • 1 x Set of Stable Spikes
  • 1 x Centre Colum
  • 1 x Toolkit

Additional Information

  • Weight: 91g
  • Closed Length: 470mm
  • Minimum Height: 130mm
  • Maximum Height (Inc. Column Retracted): 1485mm
  • Maximum Height (Ex. Column Retracted): 1170mm
  • Maximum Load: 6kg
  • Tube Size: 22/19/17/15
  • Leg Sections: 4
  • Leg Lock Type: Twist-Lock
  • Independent Leg Spread: Yes – 3 Stops
  • Foot Mount: UNC 3/8-16
  • Foot Type: Removable Rubber
  • Material: Carbon
Back to top

Product Specification

Closed Length 47
Colour Black and Grey
Leg sections 4
Max height 148.5
Max Load 6000
Min height 13
Primary material Carbon Fibre
Weight (g) 91
With Head LH-25 Ball Head
Back to top
Back to top
Back to top
Product Code: 1710775-wex Manufacturers Part Number: 1700 010.0
