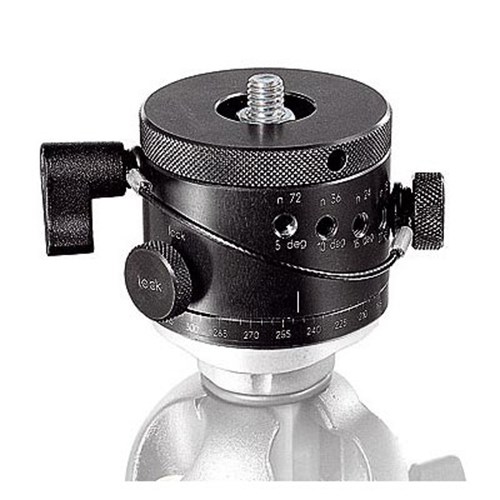

The 300N panoramic rotation unit allows the photographer to take sequential constant-angle shots around a single axis, an essential part of achieving accurate and easy-to-stitch panoramic compositions. The set positions of the 300N give ample choice of rotation angle and so of number of photos needed to complete a 360° pan and cover the most common requests of panoramic photographers depending on the camera/lens equipment used. To make angle selection easier, a "click-stop" selector screw is included and attached to a safety cable to prevent it from being separated from the head and getting lost. The 300N also comes complete with a secondary locking screw which stops unwanted or accidental rotation of the head when heavy or off-centre equipment makes it less balanced or when the head is used for non-horizontal rotation.
Upper dual graduated scale to set the angle of rotation to any of the following: 90°, 60°, 45°, 36°, 30°, 24°, 20°, 15°, 10°, 5° (respectively equivalent to 4, 6, 8, 10, 12, 15, 18, 24, 36 or 72 photos to achieve a full 360° rotation based on 35mm film frames or 24x36mm CCD).
Lower graduated scale from 0° to 360°.
3/8” female tripod fitting; 3/8” male screw head or plate fitting.
Back to top
Back to top
||3/8 inch female
|Maximum Load (grams)
