Osee Lilmon 5 4K HDMI Touchscreen On-Camera Monitor with Field Kit
Product Code: 3282840

Osee Lilmon 5 4K HDMI Touchscreen On-Camera Monitor with Field Kit

£208.00 Limited stock - selling fast
Check stock near me

Back to top

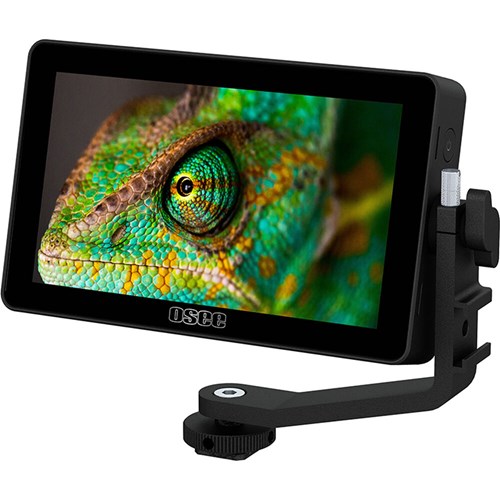

The Osee Lilmon 5 4K HDMI Touchscreen On-Camera Monitor is a compact, daylight-viewable display designed for modern video production. Its 5.5” 1000 cd/m² LCD panel with anti-fingerprint coating maintains clarity outdoors while supporting 10-bit colour and HDR preview. HDMI I/O, anamorphic de-squeeze, and 22-bit internal processing ensure accurate tone and colour reproduction. Lightweight yet reinforced, it’s built for reliable on-location use.

Osee Lilmon 5 4K HDMI Touchscreen On-Camera Monitor with Field Kit Key Features:

  • 5.5” 1920 × 1080 touchscreen panel with UHD 4K input support
  • 1000 cd/m² high-brightness LCD with anti-fingerprint coating
  • 10-bit colour display with 22-bit internal processing for precise tone mapping
  • Anamorphic de-squeeze and HDR/Log preview across multiple camera profiles
  • HDMI input/output with 4K30 passthrough and embedded audio
  • 1000:1 contrast ratio and 178° wide viewing angle for consistent framing
  • Lightweight 212g design with reinforced polycarbonate housing and aluminium frame
  • Tilt arm with torque adjustment for flexible camera mounting
  • Powered via L-series battery or D-Tap connection for extended field use
  • Includes a field kit with a cleaning cloth, hinge arm, and protective accessories

High-brightness display for outdoor shooting

The Lilmon 5’s 5.5” LCD panel delivers 1000 cd/m² brightness and a 1000:1 contrast ratio, providing clear visibility in direct sunlight. Its anti-fingerprint coating and low-reflection surface help maintain image accuracy during handheld or gimbal operation. The high-efficiency backlight panel achieves full brightness without a cooling fan, keeping operation silent during video recording.

Accurate colour and tone mapping

A 22-bit internal processing engine handles precise tone reproduction across HDR and Log signals. OSEE’s HDR/Log mapping supports most major camera profiles, preserving detail in highlights and shadows for consistent colour management on set. The 10-bit display outputs over one billion colours, producing smooth gradients that reveal subtle differences in skin tone and texture during grading.

Compact build with reinforced structure

Despite weighing only 212g, the Lilmon 5 features a rigid polycarbonate body supported by an internal aluminium skeleton for strength under pressure. Each 1/4"-20 mounting point includes an anti-rotation pin hole and metal reinforcement, ensuring stability even on lightweight rigs. The design withstands regular attachment to cages or arms without flex or distortion.

Flexible mounting and power options

The included torque-adjustable tilt arm provides quick repositioning on a hot shoe or side cage mount. Power comes via a standard L-series battery or through D-Tap when linked to larger Gold or V-mount systems. Its compact form and balanced centre of gravity make it particularly well suited to mirrorless cameras and stabilised gimbal setups, keeping rigs light and easy to handle.

Intuitive touchscreen control with Swift OS

Swift OS provides direct access to monitoring tools such as waveform, vectorscope, histogram, and image flip without interrupting the live view. The interface responds smoothly to touch adjustments, allowing users to make quick corrections on set. An SD card slot supports LUT import and firmware updates, giving users control over look creation and long-term compatibility.

What's in the box?

  • 1 × Osee Lilmon 5 4K HDMI Touchscreen On-Camera Monitor
  • 1 × Torque-adjustable Hinge Arm
  • 1 × Cleaning Cloth
  • 1 × Quick Start Guide
  • 1 × Service Card
  • 3 × Replacement O-type Rings
  • 2 × DC Port Covers

FAQs

Can the Osee Lilmon 5 display HDR or Log images from any camera?

OSEE’s HDR/Log mapping engine recognises HDR and Log profiles from most major camera brands, displaying them with accurate contrast and tonal balance without external conversion.

What battery types work with the Lilmon 5?

The monitor accepts standard Sony L-series batteries via the rear plate and can also draw power from professional systems using a DC-to-D-Tap cable connected to a Gold or V-mount battery.

Does the monitor include any monitoring tools?

The Lilmon 5 includes waveform, vectorscope, histogram, anamorphic de-squeeze, and image flip or rotate, providing comprehensive exposure and framing tools for field or studio use.

Is the display suitable for handheld and gimbal setups?

At just 212g with a slim 24.4 mm profile, the Lilmon 5 keeps rigs balanced and lightweight, offering stable mounting via the supplied tilt arm for flexible angles during handheld or gimbal operation.

Can I update LUTs or firmware on the Lilmon 5?

Yes. The integrated SD slot accepts cards up to 16 GB for importing user LUTs or applying firmware updates, ensuring compatibility with evolving camera systems and production workflows.

Back to top

Product Specification

Audio Monitoring 3.5 mm headphone output
Brightness 1000 cd/m² (nits)
Connections 1 × HDMI input 1 × HDMI output 1 × 3.5 mm headphone output 1 × 2.1 mm barrel power input 1 × 2.5 mm control input
Contrast Ratio 1000:1
Dimensions 144 × 88.5 × 24.4 mm
Display 5.5" 1920 × 1080 touchscreen LCD with 10-bit colour depth
LUT Support User LUT import via SD/SDHC card (up to 16 GB, LUT and firmware updates only)
Panel Type LCD
Power Consumption 8.1 W
Power Options 1 × Sony L-series battery mount DC input (6.2–16.8 VDC) via barrel or D-Tap connection
Recording Formats and Framerates UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p/480p/576i/480i
Resolution 1920 × 1080 (Full HD)
Screen Size 5.5"
Storage Media Single SD/SDHC slot (16 GB maximum, for LUT and firmware updates only)
Weight 212g
