Osee T5 Plus On-Camera Monitor Kit

High-brightness display for field monitoring

The T5 Plus delivers 1000 cd/m² brightness with a 1000:1 contrast ratio, providing clear visibility even in strong daylight. Its 5.5-inch 1920 × 1080 LCD panel reproduces over one billion colours through 8-bit + FRC processing, maintaining precise tonal separation for both video and log monitoring. The wide 160° viewing angle allows consistent assessment from multiple positions around the camera, essential during multi-operator shoots.

HDR and colour-accurate viewing

With HDR10 and Hybrid Log-Gamma compatibility, the T5 Plus displays extended dynamic range directly from the source signal. Its 100% coverage of both Rec. 709 and DCI-P3 gamuts ensures accurate preview of final-grade colour spaces, helping crews make confident exposure and lighting adjustments on location. HDR/Log viewing aids match tonal response across multiple cameras, ensuring uniformity from capture through post.

Intuitive MON OS control system

OSEE’s MON OS uses a page-based layout navigated by a five-direction joystick, allowing quick switching between custom tool sets. Users can create up to eight MySets, each containing eight selectable monitoring tools, and toggle between them in seconds. This system streamlines access to waveform, histogram, vectorscope, false colour, and focus aids, allowing technicians to check parameters efficiently while maintaining focus on the image.

Practical design and field-ready build

Weighing only 175 g, the T5 Plus combines aluminium reinforcement with a polycarbonate shell for a balance of strength and portability. The monitor mounts via anti-twist 1/4"-20 threads on the base and side, supporting flexible positioning on cages, rigs, or gimbals. A supplied tilt arm and removable sunshade improve usability outdoors, shielding the display from glare and allowing stable angle adjustment when framing handheld shots.

Versatile power and connectivity

Power options include Sony L-series and Canon LP-E6 batteries, 5–17 VDC USB-C input, or DC output for accessory power distribution. The single HDMI 1.4 input supports UHD 4K at 30 fps, passing embedded audio for simultaneous headphone monitoring through the 3.5 mm output. The SD/SDHC slot enables LUT and firmware uploads, keeping colour pipelines consistent and the monitor up to date with the latest OSEE features.

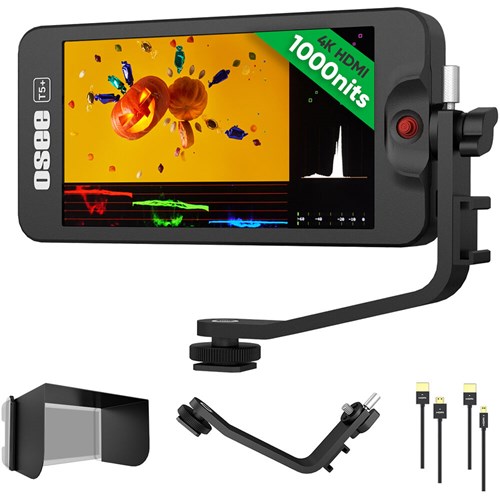

What's in the box?

• 1 × Osee T5 Plus 5.5" High-Bright UHD 4K HDMI On-Camera Monitor
• 1 × Torque-adjustable hinge arm
• 1 × Sunshade
• 1 × HDMI Type-A cable (30 cm)
• 1 × HDMI Micro cable (30 cm)
