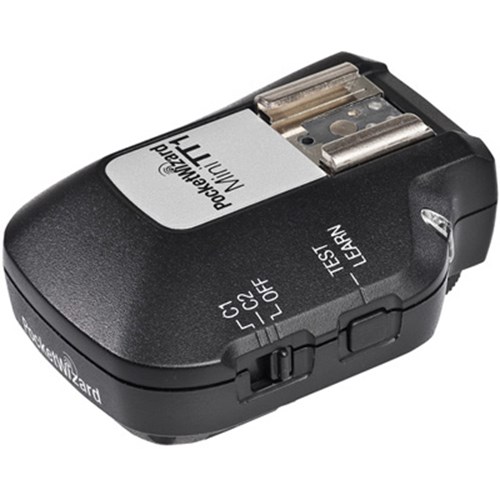

Introducing the smallest Pocket Wizard radio trigger ever, the MiniTT1 Transmitter for Canon locks onto the camera's hot shoe supporting an on-camera flash with its own hot shoe while working with remote PocketWizard units. Remotes can be one or more PocketWizard FlexTT5 Transceivers connected to Canon E-TTL II flashes or any PocketWizard Receiver for triggering flash or remote cameras. PLEASE NOTE: Not compatible with the Canon 1DX II.

The MiniTT1 Transmitter is easy to use; just slide in place and begin to shoot. The new PocketWizard ControlTL™ System interprets the complex E-TTL II data being sent through the camera's hot shoe and digitally transmits it in a reliable radio signal. Change the flash compensation dial on the camera, and those commands pass seamlessly through the system to your remote flash. Adjust your shutter speed, aperture or ISO and the system corrects for those changes. A ratio command set on the flash or command unit passes through the MiniTT1 to set the remotes. PocketWizard ControlTL radio communication allows you to shoot farther, faster, around corners, through walls even at high noon in bright daylight. Now you can deploy a wireless flash system wherever you want, without infrared limitations, in seconds.

Use the MiniTT1 for standard triggering with any PocketWizard Receiver including the FlexTT5, PlusII or MultiMAX. When used this way with a digital camera, you can take advantage of PocketWizard's HyperSync Technology that allows up to 1/500th of a second camera sync with many camera/strobe set-ups. HyperSync allows you to advance the timing of your flash trigger so that faster than X-sync speeds can be achieved. Need more speed? Push your ControlTL system beyond 1/500th and go into FP/High-Speed Sync mode automatically. No buttons to press or settings to change other than your shutter speed will give you flash sync all the way to 1/8000th.

A new PocketWizard Utility program is provided to support the MiniTT1 via a USB port. The Utility allows you to configure your channel settings, dial in your HyperSync timing, adjust your sleep-mode timers and update your product to the latest firmware.

Full Specifications

TTL Compatibility Canon E-TTL &  E-TTL II
Frequency: 433.42 - 434.42 MH, CE
Channels: 35 Channels over 5 Frequencies
Antenna: Internal
Transmit output power: Less than 0.001 watt (1/1000 of a watt or 1 milliwatt)
Range Performance: 30 to 800 feet (10 to 240 meters) for E-TTL II triggering depending on flash used, antenna orientation and other variables.
30 to 1200 feet (10 to 365 meters) for basic triggering depending on flash used, antenna orientation and other variables.
For more info, click here.
Mounting: Hot-shoe only
Maximum Shooting Rate:  Frames per Second (fps) 8 fps for E-TTL II & normal triggering
Power / Channel Switch: OFF - C.2 - C.1
Status Indicator: LED, Green, Amber, Red status indications
Voltage Present: 3.3 VDC (all pins) - safe for all cameras
Hot Shoe voltage protection Hot Shoe: up to 50V
USB: USB Compliant 2.0, Mini-B Connector
Operating Temperature: above -15C (5 F) and below 50 C (120 F)
Storage Temperature:
(without battery)
above -30 C (-22 F) and below 85 C (185 F)
Construction: High impact plastic, captive battery door
Hot shoe made of glass reinforced resin
Power: 3 V Lithium battery, CR2450 (included) or CR2354 Lithium coin cell type
Battery Life: Hundreds of hours of camera "awake time" depending on shooting habits
Dimensions: 2.8" (7.1 cm) long x 1.9" (4.9 cm) wide x 1.3" (3.3 cm) tall
Weight: 2.3 oz (65 grams), 2.0 oz (57 grams) without battery
Included in the box: MiniTT1 Transmitter, USB cable, CR2450 battery, Quick Guide
  Back to top

Product Specification

Connectivity Canon EOS Hotshoe
For Use With Canon
Maximum Working Distance [m] 240
Size 71 x 49 x 33 mm
Type Wireless Transmitter
Weight [g] 65.00
