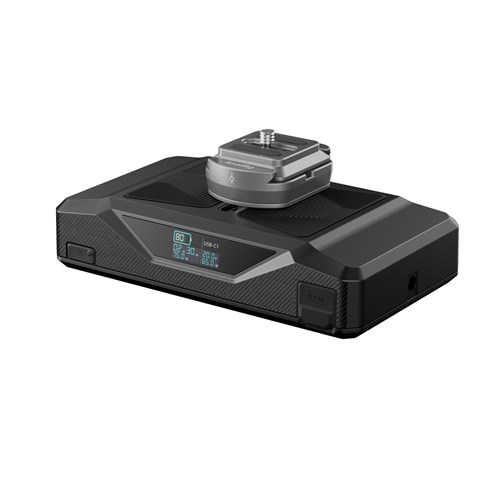

The SmallRig CB75 Camera Base Battery Kit 5248 delivers 73.8Wh of reliable power in a slim, tripod-ready unit with direct 1/4”-20 mounting and a HawkLock Arca-Swiss plate for camera connection. With dual 65W USB-C fast-charge ports, two D-Tap ports, and an 8V DC output, it supports simultaneous use of multiple devices. Equipped with Premium LG cells, a clear, HD OLED display, and PowerADC technology, it ensures stable, rapid power for professional setups.
SmallRig CB75 Camera Base Battery Kit 5248 Key Features:
- 20,000mAh (73.8Wh) high-capacity battery for extended shooting
- Dual USB-C ports supporting 65W input and output for fast charging
- Two D-Tap ports for versatile input and output power options
- Single DC5521 output port delivering 8V for additional devices
- Built-in 1/4”-20 threaded mounting points for direct camera or cage attachment
- Full recharge in just 2 hours for minimal downtime
- Includes “HawkLock” H38 Arca-Swiss plate for fast one-click mounting
- Premium LG battery cells for long-lasting and stable performance
- HD OLED screen for real-time battery monitoring and control
- Non-slip silicone padding to protect mounted devices
- Intelligent BMS chip with eight safety protections for circuit stability
- Aluminium alloy housing with advanced heat dissipation
- Slim, flat profile for easy storage and portability
- Optimised centre of gravity for stable handheld use
- Over 281 procedures and 1,500 safety tests for quality assurance
FAQs:
How compact and portable is the SmallRig CB75 Camera Base Battery Kit 5248 for travel or on-location shoots?
SmallRig’s CB75 Camera Base Battery Kit 5248 measures just 149 x 86 x 33mm and weighs approximately 613g, making it compact enough to fit into most camera bags without adding bulk. Its slim profile and flat design allow it to sit neatly under a camera or mount to a rig without disrupting balance. This makes it ideal for mobile filmmakers or those working in location-based shooting, where space and weight are a concern.
Is the SmallRig CB75 Camera Base Battery Kit 5248 compatible with all camera models?
Thanks to its built-in adjustable mounting and standard 1/4”-20 screw, the CB75 can be directly attached to a wide range of cameras and cages. It’s designed to fit securely under different camera models and supports quick changes using the included HawkLock H38 Arca-Swiss plate. The HawkLock plate can be attached to the camera for one-click attachment to the battery base whenever it is needed.
Can the SmallRig CB75 Camera Base Battery Kit 5248 charge non-camera devices such as smartphones or tablets?
Yes, you can use the USB-C ports on the CB75 Camera Battery Base to charge smartphones, tablets, and other USB-powered devices. With a 20,000mAh capacity, it can fully charge a high-end smartphone like the iPhone 16 Pro Max up to three times, making it a convenient backup power source on set.
How effective is the SmallRig CB75 Camera Base Battery Kit 5248?
The SmallRig CB75 Camera Base Battery Kit 5248 provides high-speed power delivery suitable for extended shooting times when used to charge various compatible cameras. For example, it can power a Canon R5 Mark II for up to 6 hours and 16 minutes when recording in 4K/50p, and a Sony a7 IV for up to 7 hours and 8 minutes under the same conditions. These figures highlight its ability to sustain various setups over long durations without needing battery swaps.
Product Specification
| Capacity | 20,000mAh |
| Colour | Black |
| Dimensions | 149.0 x 86.0 x 33.0mm / 5.9 x 3.4 x 1.3in |
| Included Accessories | “HawkLock” H38 Arca-Swiss Quick Release Mount Plate, 100W USB-C to USB-C PD Cable (30cm / 11.8in), 2 x Allen Wrench |
| Mount | 1/4"-20 screw |
| Type | Battery |
| Watt Hour | 73.8Wh |
| Weight [g] | 613.00 |
