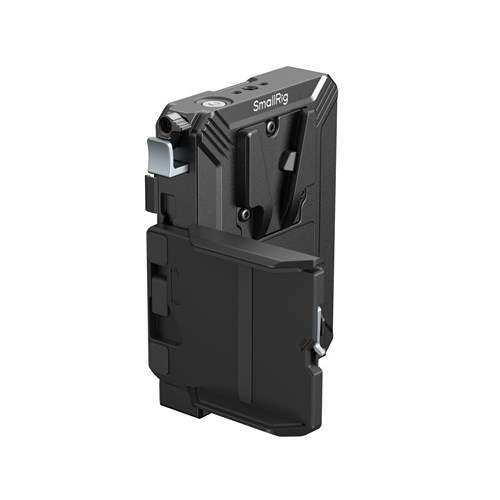

The SmallRig V-Mount Battery Mount Plate provides a reliable power interface for professional video rigs, delivering flexible connectivity for cameras and accessories. It features one D-Tap output (11.2 - 16.8V) and two USB-C ports that support up to 20V/65W. A modular LCD screen protector adjusts freely without tools to safeguard your camera’s flip-out screen, while the included cable clips and hook-and-loop straps keep wiring neatly managed during production.
SmallRig V-Mount Battery Mount Plate Key Features:
- V-Mount plate supports standard V-lock batteries for professional rigs
- Single D-Tap output (11.2–16.8V, 18A) for powering cameras and accessories
- Dual USB-C outputs up to 20V at 3.25A, delivering 65W combined power
- Adjustable modular LCD screen protector prevents screen obstruction or damage
- Supports V-mount batteries up to 3.1" wide, including compatible SmallRig models
- Integrated cable management clips and straps maintain an organised setup
- Aluminium and stainless steel construction balances strength and weight at 266 g
- Compatible with compact 15mm LWS baseplates for stable mounting
What's in the box?
- 1 x SmallRig V-Mount Battery Mount Plate
- 1 x LCD Screen Protector
FAQs
Does this kit fit all V-mount batteries?
The plate supports V-mount batteries up to 3.1" (7.9 cm) in width when used with the LCD screen protector. It is compatible with SmallRig V-mount models 3579B, 4871, 4872, 3580B, 4929, 4930, 4292, 4974, 4608, 4984, 3581B, and 4293. For stable mounting, SmallRig recommends pairing the plate with a compact 15mm LWS baseplate, such as models 1798, 1674, 3357, 1775, or 4002.
What power outputs are available?
It offers one D-Tap output (11.2–16.8V, 18A) and two USB-C outputs (5–20V, 3–3.25A, 65W), supporting cameras, monitors, transmitters, or lighting accessories simultaneously.
What is the function of the LCD screen protector?
The modular protector prevents the camera’s flip-out screen from hitting the battery and can be repositioned without tools for custom setups.
How should I power down the plate when not in use?
Remove the battery, or press and hold the power switch for 3 seconds to cut off power when storing or transporting your rig.
What materials is the plate made from?
It’s constructed from aluminium and stainless steel, ensuring durability and stability while keeping the weight low at 266g.
Back to topProduct Specification
| Colour | Black |
| Dimensions | 11.2 x 9.7 x 7.9 cm |
| For Use With | SmallRig V-mount batteries (3579B, 4871, 4872, 3580B, 4929, 4930, 4292, 4974, 4608, 4984, 3581B, 4293) |
| Included Accessories | LCD Screen Protector, Cable Management Clips, Hook-and-Loop Straps |
| Mount | V-Mount |
| Power Source | External Battery |
| Type | Battery Plate |
| Voltage | 11.2–16.8 V (D-Tap output) / 5–20 V (USB-C output) |
| Weight [g] | 266.00 |
