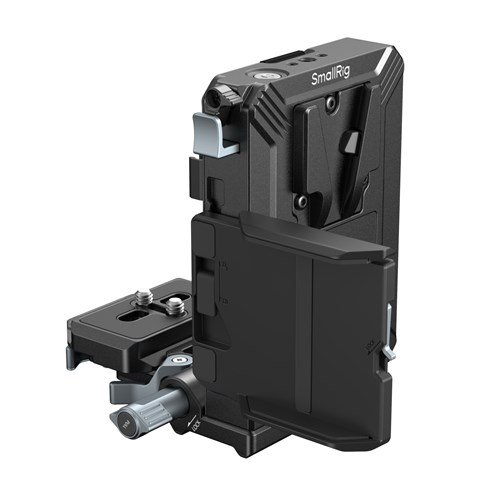

SmallRig V-Mount Battery Mount Plate Kit 5227
The SmallRig V-Mount Battery Mount Plate Kit 5227 delivers a compact, all-in-one power system with a rapid, quick-release locking mechanism for instant V-mount battery swaps. Its multi-port hub offers D-Tap and 65W USB-C outputs for powering multiple devices. A 180° rotatable design with a damping system ensures stable operation, while the modular, adjustable LCD protector and cable management accessories provide a safe and tidy shooting setup.
SmallRig V-Mount Battery Mount Plate Kit 5227 Key Features:
- V-mount battery plate kit for an all-in-one power supply solution
- Quick-release locking mechanism for instant V-mount battery installation
- Arca-Swiss compatible baseplate with adjustable locking lever
- Supports direct slide-in mounting for cages and L-shaped handles
- Multi-port power hub with D-Tap and 65W USB-C output
- USB-C port doubles as a V-mount battery charger
- 180° rotatable design for flexible LCD screen access
- Stainless steel gear-lock system for secure positioning
- Integrated damping system prevents battery drop during rotation
- Modular LCD screen protector with tool-free height and width adjustment
- Protects flip screens from impact during use and transport
- Multiple 1/4"-20 threaded and locating holes for accessory mounting
- Includes cable clips and an elastic Velcro strap for organised cable management
FAQs:
What type of V-mount batteries are compatible with the SmallRig 5227?
The SmallRig V-Mount Battery Mount Plate Kit 5227 supports standard V-mount batteries with a voltage range of 11.0V to 16.8V. For optimal performance, SmallRig recommends batteries with a capacity of between 3500mAh and 20000mAh at a nominal voltage of 14.8V. This ensures stable power delivery and longer operational time for professional camera setups.
Can the USB-C ports charge and power devices simultaneously?
Yes, both USB-C1 and USB-C2 ports support input and output with a maximum power of 65W each. They comply with PD3.0, QC3.0, and PPS protocols, allowing efficient charging of cameras, monitors, and accessories. The dual-port configuration means you can power multiple devices or charge the battery itself via USB-C.
What are the suitable operating and storage environments for the SmallRig V-Mount Battery Mount Plate Kit 5227?
Built with an aluminium alloy frame, stainless steel fittings, and silicone insulation, the SmallRig V-Mount Battery Mount Plate Kit 5227 operates reliably from -15°C to 60°C during discharge. It can be stored safely across a wide temperature range of -20°C to 60°C, depending on duration. These characteristics make it ideal for both studio and outdoor production work.
Product Specification
| Colour | Black |
| Dimensions | 121.5 x 103.5 x 98.0mm |
| Included Accessories | Arca-Swiss Plate, LCD Screen Protector, Allen Wrench, Operating Instruction, User Manual |
| Mount | V-Mount |
| Power Source | 11.0V–16.8V External Battery |
| Type | Mount Plate Kit |
| Weight [g] | 452.80 |
