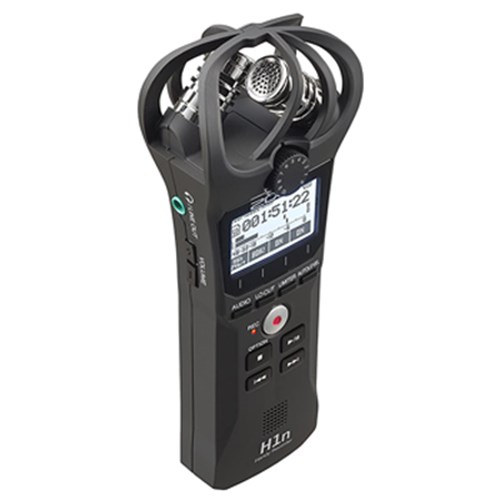

Zoom H1n Handy Recorder

Zoom's original H1 Handy Recorder was one of the most popular portable audio recorders among amateur audio and video creators. The updated H1n builds on the successes of its predecessor with improved audio sampling (up to 24-bit) at rates of up to 96kHz in WAV and high-quality MP3 formats. Zoom have also redesigned the user interface, making it easier to use on-screen, and on the device.

Key Features: Zoom H1n Handy Recorder

• Built in 90° X/Y stereo mic
• Records directly to microSD and microSDHC cards up to 32GB
• 1.23" monochrome LCD display
• One-touch button controls
• Includes slate tone generator for DSLR video
• Records up to 24-bit/96kHz audio in BWF-compliant WAV
• USB microphone function for PC, Mac or iOS device
• Designed to handle up to 120 dB SPL

Specifications:

• Simultaneous playback tracks: 2
• Simultaneous recording tracks: 2
• Functions:Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
• Recording formats: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
• A/D conversion: 24-bit, 128x oversampling
• D/A conversion: 24-bit, 128x oversampling
• Signal processing: 32-bit
• Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32 GB
• Display: 1.25" monochrome LCD (96 x 64)
• Built-in stereo mic: Unidirectional condenser, 90° XY stereo format, Gain: -8 dB to +39 dB, Maximum sound pressure level: 120 dB SPL
• Inputs:
  • 1/8" stereo phone jack
  • Rated input level: -8 dB to -39 dBm
  • Input impedance: 2 kO
  • Plug-in power supported (2.5 V)
• Built-in speaker:Built-in 500 mW mono speaker, Output impedance: 8 O
• Outputs:
  • 1/8" stereo phone jack (combined line/headphones)
  • Rated output level: 20 mW + 20 mW into 32O load
  • Output impedance: 10 kO or more
• USB:
  • Micro USB port
  • Mass storage class operation: USB 2.0 high speed
  • Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
  • Transfer method: asynchronous
• Power requirements:
  • 2 AAA batteries (alkaline, nickel-metal hydride rechargeable,or lithium)
  • AC adapter (ZOOM AD-17): DC 5V/1A
  • USB bus power
• Battery life (alkaline batteries): Approximately 10 hours (continuous recording time using built-in mic, 44.1 kHz/16-bit)
• Dimensions: 50 mm (W) x 137.5 mm (D) x 32 mm (H)
• Weight: 60g (without batteries)
