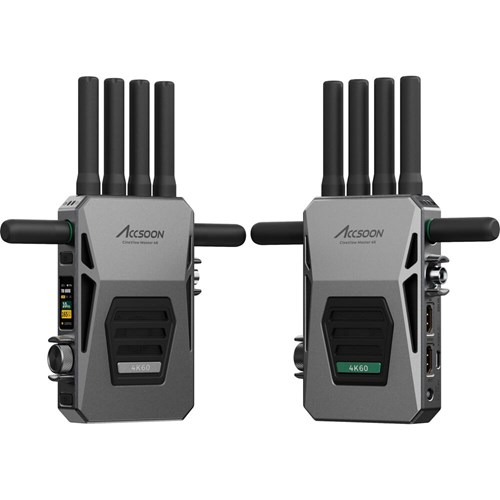

The Accsoon CineView Master 4K is a tri-band SDI/HDMI wireless video system built for crews who need stable 4K60 monitoring at range. In practice, it feels quick and confident, handing off its 4K feed across the 2.4, 5, and 6 GHz bands with around 35 ms latency while keeping loop-out, SDI, and USB-C wired options open. On set, it gives you the mix of reach, responsiveness and connection flexibility that keeps a team moving.
Accsoon CineView Master 4K Key Features:
- Tri-band 2.4/5/6 GHz system designed for long-range 4K60 monitoring
- RTMS 4.0 protocol increases connection stability and reduces latency
- 4K60 input, loop out and decode across HDMI and SDI
- USB-C output powers and feeds iOS devices for wired monitoring
- Sends to up to four wireless receivers or mobile devices
- New 8K-capable processor increases A/V processing speed fourfold
- Improved SEE app interface provides precise control and LUT handling
- Selectable fan modes manage heat and noise during production
- Runs from L-series batteries or DC input with V-mount adapter option
FAQs
How many devices can the CineView Master 4K feed at once?
A single transmitter can send to up to four wireless receivers or mobile devices simultaneously. You can also attach an iPad or iPhone to the transmitter via USB-C as a fifth monitoring point. Each receiver can be set to output 4K or HD, depending on the monitor you’re using.
Does the system handle mixed wired and wireless outputs at different resolutions?
Yes. You can run 4K60 into the transmitter and choose whether each receiver outputs 4K or HD. The wired USB-C feed to iOS can also be set independently, which helps when mixing 4K displays with older HD monitors on the same job.
How usable is the system in congested wireless environments?
The tri-band design gives it room to manoeuvre when the 5 GHz band is crowded. The 6 GHz channels, in particular, tend to stay cleaner on busy sets, and the system shifts between all three bands automatically to keep the link steady.
Can I use the CineView Master 4K for direct live streaming?
Yes. When paired with the SEE app on an iPad or iPhone, you can stream directly from the wired feed. The app supports LUTs, vertical formats and Frame.io uploads, which shortens the path from capture to delivery.
What power options are available for longer shoots?
Both transmitter and receiver accept L-series batteries or DC barrel input. For extended days, you can mount a V-lock battery using the optional adapter, which keeps the system running alongside the rest of a cine rig.
Product Specification
| Dimensions | 130 × 95 × 32 mm (TX/RX, excluding antennas) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz tri-band (RTMS 4.0) 2412–2472 MHz 5180–5580 MHz 5660–5825 MHz |
| Image Resolution | Up to UHD 4K60 (input, loop-out, transmission, and output) |
| Included Accessories | 1 × CineView Master 4K Transmitter 1 × CineView Master 4K Receiver 2 × Cold shoe mount adapters 8 × 2.4/5 GHz antennas 4 × 6 GHz antennas 1 × USB-C to USB-C cable 1 × USB-C to Lightning cable 1 × Allen key 1 × User manual |
| Input | Output | Transmitter: • 1 × HDMI 2.0 input • 1 × HDMI 2.0 loop output • 1 × 3G-SDI input • 1 × USB-C video output Receiver: • 1 × HDMI 2.0 output • 1 × 3G-SDI output |
| Mounting | 1/4"-20 thread (TX & RX bottom) |
| Power Input | 7.4–16.8 VDC (barrel input) NP-F (L-series) battery support Optional V-mount adapter |
| Supported Video | HDMI: • UHD 4K: 60/50/30/25/24 • 1080p: 60/50/30/25/24 • 1080i: 60/59.94/50 SDI: • 1080p: 60/50/30/25/24 • 1080i: 60/59.94/50 |
| Transmission | Tri-band wireless (2.4/5/6 GHz) using RTMS 4.0 <35 ms latency Up to 20 wireless channels Wi-Fi 6 (802.11ax) Supports up to four simultaneous receivers + one wired iOS device |
| Weight | Transmitter: 322 g (excluding antennas) Receiver: 320 g (excluding antennas) |
