The amaran Pano 120c Kit (Charcoal) is a 120W full-colour RGBWW panel for creators needing maximum light output in a highly portable device. Delivering up to 13,490 lux at 1 m (6500 K), it packs studio-level performance into a body comparable to a 15” laptop. With USB-C PD power support, amaran Ace E-Lock compatibility, and a complete set of light-shaping accessories, it provides a compact, travel-ready lighting system for any creative setup.
Amaran Pano 120c Kit (Charcoal) Key Features:
- 120W RGBWW full-colour panel light delivering up to 13,490 lux at 1m (6500K)
- Ultra-slim, laptop-sized form factor weighing only 1.6kg for easy transportation
- Wide 2300 – 10,000K CCT range, extendable to 1800 – 20,000K in CCT+ Mode
- Accurate light output with CRI 96, TLCI 97, TM-30 Rf 93, Rg 101, SSI (Tungsten) 84, SSI (D56) 74
- Supports USB-C PD 3.0 and above for reliable portable power options
- Compatible with the amaran Ace E-Lock and Peak1 power bank for wireless operation
- Stepless 0 – 100% brightness control and Quick Operation Mode for instant adjustment
- Simplified interface with colour screen, Custom Shortcuts, and intuitive control dial
- 12 built-in lighting effects, including Fireworks, TV, Fire, Paparazzi, and Cop Car
- Adjustable Silent or Smart fan mode with low 28dBA maximum noise level
- Wireless Bluetooth control up to 80m via the amaran app for Android and iOS
- Green-magenta correction for precise skin tone accuracy in all lighting conditions
- Lensed optical design ensures maximum brightness and consistent diffusion
- Includes Softbox, Light Control Grid, Diffuser, Power Adapter, and Carrying Case
- Mounts easily with a 1/4"-20 screw or included Ace Lock to Light Stand Adapter
Compact Power and Portability
At just 1.6 kg and comparable in size to a 15-inch laptop, the Amaran Pano 120c packs a 120 W engine into an ultra-slim body for unmatched portability. Producing up to 13,490 lux at 1m and a 2300 - 10,000 K CCT range, its precision optics and green-magenta adjustment deliver accurate skin tones and consistent colour reproduction across stills and video. The low-profile design fits seamlessly into tight spaces and mobile rigs without sacrificing output.
Power Anywhere with USB-C PD
The Pano 120c is the first panel light to support USB-C PD power, allowing creators to operate from PD power banks or chargers without bulky batteries. It can also be powered via the included 150 W DC locking adapter for studio use. For cable-free shooting, pair it with the amaran Ace E-Lock and Peak1 power bank for reliable, full-power performance on location with no voltage drop or interruption.
Intuitive Control and Colour Precision
The Pano 120c features a user-friendly colour screen and control dial for immediate adjustments to brightness and CCT without menu diving. Its Quick Operation Mode and Custom Shortcuts streamline use in fast-paced environments, while Bluetooth control via the amaran app enables remote adjustments from up to 80 m away. With CRI 96 and TLCI 97 ratings, lighting accuracy meets broadcast standards for both studio and mobile production.
Comprehensive Creator Kit
This kit includes everything needed for professional lighting. The Softbox, Light Control Grid, and Diffuser offer precise light modification, while the Ace Lock to Light Stand Adapter and 150 W DC Power Adapter simplify setup. All components fit securely into the included protective carrying case, ensuring safe and organised transportation between shoots.

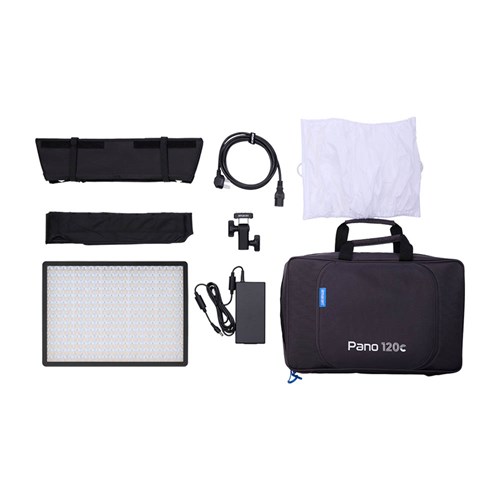

What’s in the box?
- 1 x Amaran Pano 120c (Charcoal)
- 1 x Amaran Pano 120c Softbox
- 1 x Amaran Pano 120c Light Control Grid
- 1 x Amaran Pano 120c Diffuser
- 1 x Amaran Ace Lock to Light Stand Adapter
- 1 x Amaran 150 W DC Locking Power Adapter
- 1 x Amaran AC Power Cable
- 1 x Amaran Pano 120c Kit Carrying Case
FAQs
Can the Pano 120c run entirely from a USB-C PD power source?
Yes. It is the first panel to support USB-C PD 3.0 and above for full output operation. Creators can connect PD power banks or chargers for mobile use, or use the included 150 W DC adapter for continuous studio power.
Is wireless control supported on the Pano 120c?
Yes. You can control colour, intensity, and effects wirelessly through Bluetooth using the amaran app for Android and iOS. It has a wireless range of up to 80 m, making it ideal for multi-light setups and hard-to-reach mounting positions.
What special effects does the Pano 120c include?
The panel offers 12 lighting effects, including Fireworks, Lightning, Paparazzi, Welding, and TV. Each effect can be customised for intensity and colour, allowing cinematic lighting moods without external software or hardware.
How quiet is the fan during operation?
The Pano 120c features Smart and Silent fan modes for controlled cooling. At maximum output, noise remains below 28 dBA, ensuring audio-safe operation for video production and interview environments.
Back to topProduct Specification
| AC Input Power | 110–220V AC, 50/60Hz |
| Beam Angle | 45° |
| Colour Accuracy Standard: CRI | 96 |
| Colour Accuracy Standard: TLCI | 97 |
| Colour Temperature [k] | 2300–10,000 (expandable to 1800–20,000 in CCT+ Mode) |
| Cooling System | Active fan (Silent/Smart modes, max 28dBA) |
| Dimming | 0–100% continuous |
| Equiv Output[W] | 120.0 |
| Fixture Mount | 1/4"-20 male screw and amaran Ace Lock to Light Stand Adapter |
| Included Accessories | Softbox, Light Control Grid, Diffuser, Ace Lock to Light Stand Adapter, 150W DC Locking Power Adapter, AC Power Cable, Carrying Case |
| Photometrics: Lux @ 1M | 13,490 (at 6500K) |
| Power Source | AC power or USB-C PD power bank/charger |
| Remote Control Type | Bluetooth (amaran app for Android & iOS) |
| Size [cm] | 35.6 × 25.4 × 3.6 |
| Type | LED Panel |
| Weight [g] | 1600.00 |
