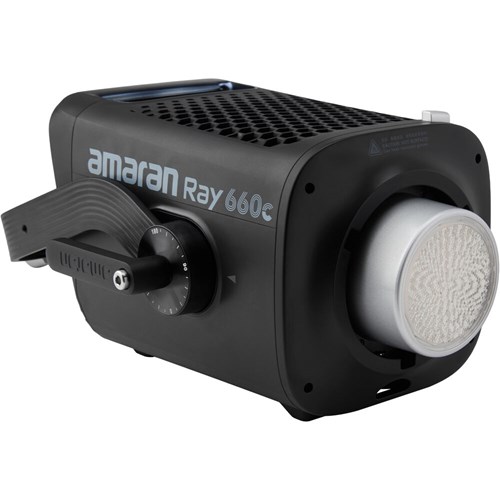

The amaran Ray 660c is a 660W full-colour COB LED monolight built for high-output studio lighting where scale and consistency matter. Its all-in-one design integrates power and cooling into the head, keeping setups tidy despite the output on tap. With full RGB control, an extended CCT+ range and solid mounting hardware, it suits film, broadcast and large studio spaces where consistent, high-output light is required.
amaran Ray 660c Key Features:
- 660W full-colour COB light for large studio output
- OmniColor engine delivers accurate RGB and white light
- Extended 1800–20,000K CCT+ range with green-magenta shift
- Full-size Bowens mount supports reflectors, Fresnels and softboxes
- Integrated power supply keeps studio setups uncluttered
- IP54-rated body resists dust and water splashes
- FlowTurn knob, screen and NFC provide fast local and app control
- Optional USB-C DMX support for console-based lighting systems
What's in the box?
- 1 x amaran Ray 660c RGB LED Monolight
- 1 x Reflector
- 1 x AC Power Cable
- 1 x Blue Bowens Mount Protection Cover
- 1 x Carry Bag
FAQs
How much output does the Ray 660c deliver on set?
The Ray 660c produces very high light levels, reaching over 38,000 lux at 1 metre in bare form. With the included reflector fitted, output increases significantly, making it suitable for lighting large subjects, wide sets or pushing light through heavy diffusion. This headroom is valuable when working at lower ISOs or higher frame rates.
Is the Ray 660c suitable for colour-critical production?
Yes. The light maintains strong colour accuracy with CRI and TLCI ratings of 95, alongside solid TM-30 and SSI performance. Skin tones remain natural, and colour stays consistent across CCT and RGB modes. This reliability is essential for broadcast, commercial and narrative work.
How is the Ray 660c controlled during a shoot?
Onboard control is handled through the FlowTurn knob and the rear display, making fine adjustments straightforward. NFC enables quick pairing with the amaran app for wireless control over brightness, colour and effects. For larger productions, optional USB-C DMX support allows integration into lighting consoles and software.
Does the fan noise affect audio recording?
Despite the output level, the active cooling system remains quiet, measuring around 28 dBA at full power. Silent and smart fan modes help manage noise during dialogue recording. In most studio environments, the fan remains unobtrusive.
How does the Ray 660c mount in a studio environment?
The fixture uses a sturdy yoke with both junior and baby pin receivers, making it compatible with a wide range of professional stands. The full-size Bowens mount accepts standard modifiers, while the built-in safety chain point adds reassurance when rigging overhead.
Back to topProduct Specification
| AC Input Power | 100–240V AC |
| Accessory Mount | Bowens S |
| Beam Angle | 70° (45° With Reflector) |
| Colour Accuracy Standard: CRI | 95 |
| Colour Accuracy Standard: TLCI | 95 |
| Colour Temperature [k] | 1800–20,000 |
| Cooling System | Fan |
| Dimming | 0–100% |
| DMX Connection | USB-C (Adapter Required) |
| Equiv Output[W] | 660.0 |
| Included Accessories | Reflector, Power Cable, Bag |
| Photometrics: Lumens | 45,904 lm |
| Photometrics: Lux @ 1M | 37,900 lux (Bare) |
| Power Source | AC |
| Remote Control Type | Bluetooth |
| Size [cm] | 30.0 × 18.6 × 17.9 |
| Type | RGB COB LED Monolight |
| Weight [g] | 5700.00 |
