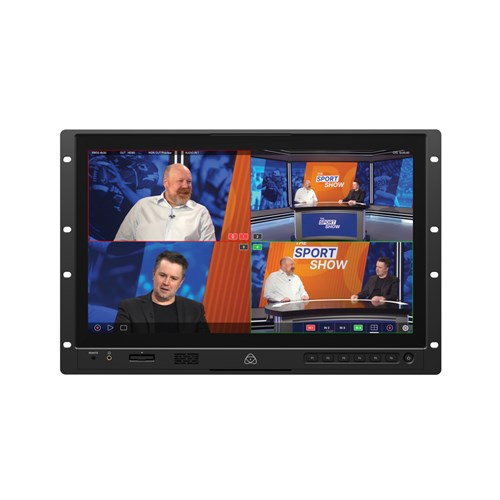

The Shogun AV-19 is a 19-inch 4K HDR DCI-P3 rack-mount monitor-recorder-switcher built for studio and outside broadcast work. Designed around a bright, colour-accurate display, it lets crews monitor, switch and record up to four camera feeds in ProRes, ProRes RAW, or Avid DNx with ISO capture and a live program output. SDI, HDMI, and NDI HX3 connectivity make it suitable for modern multi-camera racks.
Atomos Shogun AV-19 Production Monitor Key Features:
- 19-inch 4K HDR DCI-P3 monitor designed for 7RU rack systems
- Combines monitoring, recording and live switching in one rack unit
- 1200-nit display remains readable under studio and OB lighting
- Quad-split and full-screen views simplify multi-camera oversight
- Records four ISO feeds plus program to ProRes, ProRes RAW or DNx
- CFexpress Type B and USB-C external media recording support
- SDI and HDMI connectivity suits broadcast and studio camera chains
- Transmit and receive NDI HX3 over standard Gigabit Ethernet
- EL Zone false colour, waveform and focus tools aid exposure control
- Log to LUT viewing supports 3D and .cube files
- User-assignable buttons give quick access to common functions
- Backup recording adds redundancy for live production
What’s in the box?
- 1 x Atomos Shogun AV-19 Production Monitor
- 1 x 4-Pin XLR Power Supply
- 5 x International IEC Power Cables
- 10 x Rack Nuts and Bolts
- 1 x Screen Cloth
- 1 x Quick Start Guide
FAQs:
Can the Shogun AV-19 record all cameras separately during a live switch?
Yes. The unit can record up to four isolated camera feeds simultaneously, along with a fifth switched program output, enabling live delivery while keeping clean ISO recordings for post. The ISO files retain timecode and metadata for straightforward editing later.
Does it work as both a studio monitor and a recorder?
The 19-inch 1200-nit 4K HDR display handles technical monitoring, while internal recording captures ProRes, ProRes RAW, or Avid DNx directly. This makes it practical as a central rack display without adding a separate recorder.
What connectivity does it offer for broadcast setups?
The Shogun AV-19 includes 12G-SDI and 3G-SDI inputs, SDI and HDMI outputs, XLR audio, and Gigabit Ethernet. It also supports NDI HX3 over Ethernet, which suits IP-based workflows alongside traditional SDI routing.
Can the display be calibrated for colour-critical work?
Yes. The monitor supports calibration using compatible third-party probes on Mac or PC. Once calibrated, it maintains accurate Rec.709 and DCI-P3 coverage for grading decisions and on-set colour confidence.
Is there a backup recording for long or critical recordings?
The Shogun AV-19 supports backup recording, allowing crews to maintain a safety copy during live production. Combined with continuous power support, this helps reduce risk during extended broadcasts or events.
What monitoring tools are available on the Shogun AV-19?
The Shogun AV-19 includes a full set of technical monitoring tools for live production and broadcast work. These include waveform, RGB parade, vectorscope, zebra, focus peaking, zoom, frame guides and false colour, with support for Atomos False Color, ARRI False Color, and EL Zone. Tools can be layered as needed and toggled using the touchscreen or assignable buttons, making it easy to check exposure, focus, and framing.
Back to topProduct Specification
| Aspect Ratio | 16:9 |
| Brightness | 1200 cdm2 / Nits |
| Connections | Input: 1 x HDMI (2.0) up to 4K60P, 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G-SDI. Output: 1 x HDMI (2.0) up to 4K60P, 1 x 12G-SDI, 2 x USB-C 2.0/3.0, 1 x RJ45, 2 x 3-pin XLR (female), 2 x 3-pin XLR (male) |
| Cooling System | Actively controlled fan and heat sink |
| Dimensions | 482mm x 310mm x 60mm |
| Display | 19-inch |
| Operating Temperature | Up to 40 degrees Celsius |
| Resolution | 3840 x 2160 4K UHD |
| Storage Media | CFexpress |
| Timecode | HDMI & SDI |
| Weight | 5.22 Kg |
