Atomos Shogun Inferno
We no longer sell this product and will not be receiving any new stock. Check below for availability of second-hand units.
| Condition | Availability |
|---|---|
| New | Discontinued - we can no longer source new stock of this product |
| Loading Alternatives | |
| Used: {{condition.ConditionCode}} | {{condition.Quantity}} x In Stock - from {{condition.LowestPrice | currency:"£"}} View {{condition.ConditionCode}} versions of the Atomos Shogun Inferno » |
| View all used versions of the Atomos Shogun Inferno currently available » | |

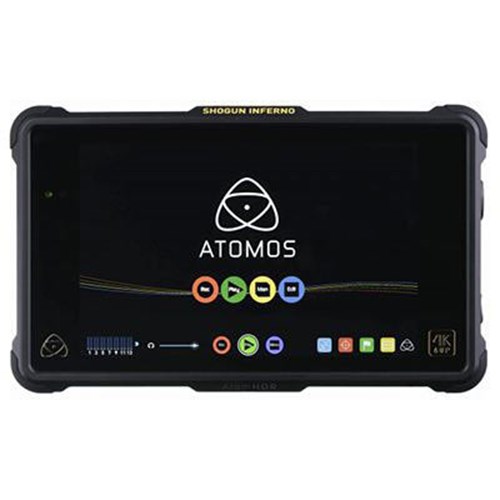

The Shogun Inferno is a 7" 10-bit 1500nit Field Monitor with the AtomHDR engine with the latest recording capability – 4Kp60 over Quad-SDI, along with playback & editing functionality that encourages on set collaboration. This ultra-bright advanced monitor and recorder can record 4K Raw cDNG support up to 30P, 4K Pro Res/Avid DNX from both Video and Raw signals up to 60P, and up to 240FPS in HD.
The Shogun Inferno is a 7" 10-bit 1500nit Field Monitor with the AtomHDR engine with the latest recording capability – 4Kp60 over Quad-SDI, along with playback & editing functionality that encourages on set collaboration. This ultra-bright advanced monitor and recorder can record 4K Raw cDNG support up to 30P, 4K Pro Res/Avid DNX from both Video and Raw signals up to 60P, and up to 240FPS in HD.Key Features: Atomos Shogun Inferno
Sony FS5 RAW Firmware Upgrade with the Atomos Inferno - 4K DCI in 12-Bit CinemaDNG
Record ProRes RAW
Unlock the true potential of your RAW cinema camera with the Shogun Inferno. Preserve your sensor’s pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Inferno is compatible with Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/Varicam LT.
10-bit ProRes/DNxHR up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera’s capability. The depth and quality of the image is preserved with data rates of up to 1.8Gbs, 220MB/s.
Bright, vibrant HDR images anywhere
The 7” 1920x1200 1500nit high bright HDR display allows you to see your images with unparalleled accuracy. Nail focus and exposure, even outside in daylight. The AtomHDR panel shows 10+ stops of HDR resolved in real time from RAW/Log/PQ/HLG sources.
Balanced XLR monitor & record
Eliminate the need for a separate audio recorder. Add 48V stereo mics via the balanced XLR breakout cable. Select Mic or Line input levels, record up to 12 channels of digital audio from HDMI or SDI. Monitor selected stereo via the 3.5mm headphone jack. There are dedicated meters, gain controls and adjustments for frame delay.
Professional monitoring tool
Shogun Inferno has extensive monitoring tools, including custom 3D LUTs, false color, peaking, movable 1-1 and 2-1 pixel magnification, waveform, RGB parade, vectorscope. You can even calibrate for color accuracy.
Portable Playback Deck
The ultimate battery-powered playback deck, review and playout footage anywhere - scrub through, jog frame-by-frame and even watch back in slow motion. Metadata tag footage as you go to mark favorites, rejects and more. Bring your footage into your timeline and immediately filter your tags.
Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink SDI in almost any combination and eliminate the need for specialist converters.
Edit HDR in the field
After shooting, immediately feed HDR into your Shogun directly from your Final Cut Pro X timeline using an I/O box for mobile HDR grading. We support any NLE or Grading suite that support our file formats - basically all of them!
Back to topProduct Specification
| Audio Monitoring | Yes |
| Connectivity | 1 x HDMI (2.0), Quad link 4 x 3G SDI or up to 12G single link SDI, 2ch balanced XLR analog in/out |
| Dimensions | 214 x 127 x 45mm, 8.4 x 5 x 1.8” |
| Display | 7.1 Inch, 1920 x 1200, 1500NITS / cdm2, with AtomHDR Engine |
| LUT Support | Supported Log Formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, |
| Power Options | 2 x NPF Slots: 5200mAh - up to 1.5hrs (monitor & record 4K), 7800mAh - up to 2.2hrs (monitor & record 4K) |
| recordingformatsandframerates | Codecs Cinema DNG for supported cameras (Sony FS5/FS7/ FS700, Canon C300MKII, C500, Panasonic Varicam RAW*) Frame rates 4K DCI / 4K UHD; 24/25/30p 2K / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120p. Raw to Video: Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB, Frame rates 4K DCI / 4K UHD; 24/25/30/50/60p, 2K*** / 1080p; 24/SF24/25/SF25/30SF30/50/60/100/120/200/240p. Video: Apple ProRes HQ, 422, LT, AVID DNxHR HQX. HQ, SQ, LB, Frame rates 4K DCI / 4K UHD; 24/25/30/50/60p, 2K*** / 1080p; 24/S |
| Storage Media | 2.5inch SSD |
| Weight (g) | Without batteries & media 709g / 25.0oz, With batteries & media 1153g / 40.7oz |
