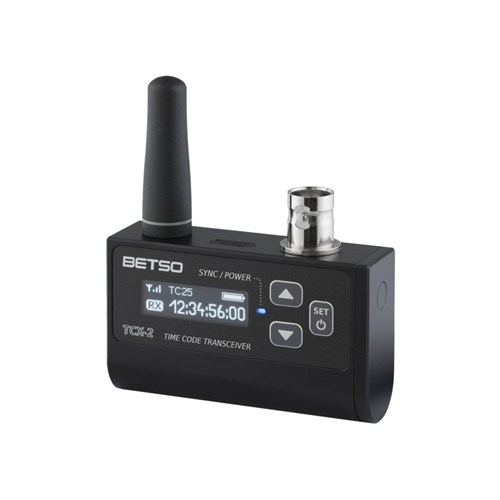

Betso TCX-2+ Ultra Compact Timecode Transceiver & Generator

The BETSO TCX-2+ is an ultra-compact, highly accurate timecode transceiver. It is based on our very easy-to-use " plug-and-play" philosophy, which is guaranteed by a wide OLED display and an easily replaced single AA battery. New RF transmission brings wireless continuous jamming of time code with 0 ppm error and clear status information of all connected devices to the network with just one click of a button.

Betso TCX-2+ Ultra Compact Timecode Transceiver & Generator Key Features:

• RF transmission: RF transmission of time code and device status information
• Jamming calibration: Jamming calibration feature to copy master's TCXO precision
• Auto ON: Automatic power ON function after active time code detection
• Advanced power saving features: Various different actions after 10s without any button activity including OLED display dim and turn off
• Display orientation: Allows to set 180° display rotation for upside down TCX-2+ mounting position
• TC offset: Time code offset adjustment from -10.0 to 10.0 frames with 0.1 frame step
• UB settings: Variable user bits settings including preset value, jammed user bits and live external timecode insertion
• USB ready: USB connector available for future firmware upgrades

Expanded Betso TCX-2+ Ultra Compact Timecode Transceiver & Generator Key Features:

RF transmission

Our whole new concept of wireless transmission of time code and status information is ideal for simple on stage workflow control. Each device connected to the network will be continuously jammed from transmitter and on each device you can observe status information of all other devices in the network. The operating range is up to 500m within the line of sight. The RF protocol incorporates a frequency-hopping spread spectrum technology approach, which ensures robust functionality even in environments with high RF noise. When unit set as receiver is out of the RF range, it keeps generating synced timecode.

All Time Code Formats

The TCX-2+ can receive or transmit signal with all existing SMPTE time code formats. With FW upgrade (can be bought separately) can precisely jam or start to generate new time codes of all existing SMPTE time code formats.

Top Build Quality

Thanks to precise CNC milling manufacturing technology, anodized aluminium alloy material and original high-quality connectors and components, the TCX-2 is very durable but still a very versatile time code unit.

Ultra Highly Accurate TCXO

Embedded high precision temperature compensated crystal oscillator TCXO with frequency accuracy off 0.2 ppm is the fundamental piece of hardware for stable and accurate time code and word clock generator. The superior quality of TCXO is best suited for changing environmental conditions where temperatures vary a lot during the day. Even in extreme weather conditions, the TCX-2+ will keep time codes in sync.

TCXO Calibration

Thanks to our sophisticated software methods, the ultra-highly accurate TCXO can be further calibrated to achieve much better than 0.2 ppm accuracy. These methods can be applied during jamming, when TCXO is calibrated to obtain exactly the same time base as the source of the time code.

What's in the box?

• 1 x Betso TCX-2+ Ultra Compact Timecode Transceiver & Generator
