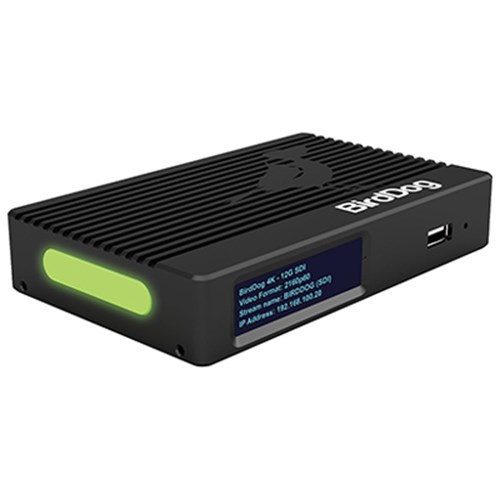

BirdDog 4K SDI - 12G SDI, 4Kp60 NDI Encoder/Decoder

The BirdDog 4K 12G-SDI NDI Encoder/Decoder is capable of supporting up to UHD 4K/60 video input for uncompromised distribution over NDI networks in full-bandwidth I-frame compression. Based around BirdDog's industry-leading custom NDI silicon chip, this compact device further features a 12G-SDI input, as well as 12G-SDI and HDMI 2.0 individual outputs. The in-built cross converter then allows the SDI input to be looped out via the accessible HDMI output. By utilising the SFP+ expansion slot, this Encoder system is capable of supporting SFP+ modules for full fibre connectivity and Ethernet protocols from 1-10GbE. Additional features include an intuitive tally system, user-selectable tally borders on loop out, a 3.5mm audio input/output, 4-line OLED display, and a user-friendly USB 3.0 interface. To power your BirdDog 4K 12G-SDI NDI Encoder/Decoder, you can either adopt a standard power supply or PoE+.

BirdDog 4K SDI - 12G SDI, 4Kp60 NDI Encoder/Decoder Key Features:

• Based around the BirdDog custom NDI silicon chip
• Supports up to UHD 4K/60 video input
• Capable of full-bandwidth I-frame compression
• Features a 12G-SDI input, and 12G-SDI and HDMI 2.0 individual outputs
• In-built 3.5mm audio input/output
• Incorporates a key built-in cross converter and PoE+ support
• Intuitive tally system with a large bicolour tally light to indicate live camera
• SFP+ expansion slot enables fibre-connectivity and Ethernet protocols from 1-10GbE
• Comes with Windows-compatible Comms Lite to establish a pro-level workflow
• Compatible with BirdDog Central software (optional) - decoding NDI back to HDMI/SDI
• Full PTZ camera control supports NDI, NDI|HX, or Visca over IP
• Intuitive 4-line OLED display
• Housed within an aircraft-grade aluminium case
• Compact, stylish, and multi-functional Encoder/Decoder system

What's in the box?

• 1 x BirdDog 4K SDI - 12G SDI, 4Kp60 NDI Encoder/Decoder
• 1 x Power Supply
• 1 x Limited 1-Year Warranty

FAQs:

What are the available network connectivity options with this BirdDog Encoder/Decoder?

You are given the option of three key network connections, which include Ethernet RJ45 1000baseT with integrated PoE, open SFP+ Cage (10GB SFP+ adapters available separately), and via an embedded web configuration panel.

Are additional cables required for external interface support?

This BirdDog Encoder/Decoder does require additional cables to support USB to RJ45 for additional network in device support, USB to RJ45 for VISCA over IP PTZ control, USB to Serial PTZ control (RS-232), and USB ISO recording.

How does Comms Lite software enhance an expansive PTZ system?

The included Comms Lite software is compatible with Windows 10 and above. It allows you to group up to four BirdDog devices together within four live-view windows, granting access to a vast range of key PTZ functions. This includes Director Push to Talk, Director to All, BirdDog to Director, and Mute Camera Operator commands. You can also monitor camera audio, auto-detect NDI sources, and tinker with the volume sidebar to suit the production.
