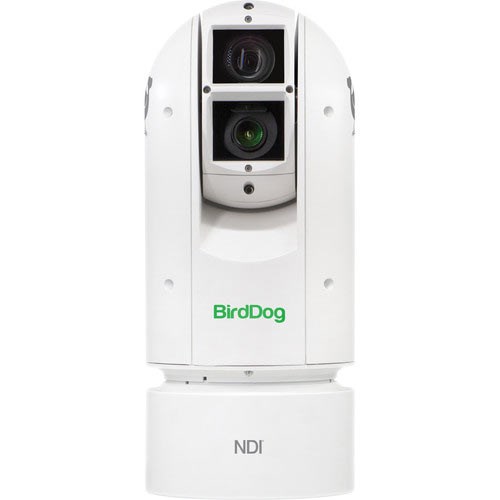

BirdDog Eyes A300 IP67 Extreme Weatherproof Full NDI PTZ Camera w/Sony Sensor & SDI (White)

The BirdDog Eyes A300 is a seriously extreme piece of kit. It is an IP67 weatherproof NDI 1080p PTZ camera that has wind-load durability of 134mph and can even withstand a category 4 hurricane (when secured properly). The A300 is tailor-made to deal with any and all weather conditions and suited to the majority of outdoor applications. You are afforded a lightning-fast 30x optical zoom and autofocus, powerful Sony 1/2.8" CMOS backlit 2.13MP image sensor, BirdDog's own custom NDI silicon chip, and an in-built infrared laser (500m range) for focusing in low-light conditions. The A300 guarantees broadcast-quality imagery, secured within a corrosion-resistant and nitrogen-filled exterior housing with a built-in rain wiper. What really sets BirdDog PTZ systems apart is their visually lossless full NDI variable bit-rate iFrame codec - reaching up to 140 Mb/s at 1080p60. The A300 does, however, require external power (see below).

BirdDog Eyes A300 IP67 Extreme Weatherproof Full NDI PTZ Camera w/Sony Sensor & SDI (White) (PSU sold seperately) Key Features:

• High-end IP67 extreme weatherproof full NDI 1080p PTZ camera
• Weatherproof, corrosion-resistant, and fog-proof housing (with rain wiper)
• In-built infrared laser (500m range) for low-light focusing
• Can withstand 134mph wind and category 4 hurricanes
• Capable of operating in -40 to 60°C temperatures
• RS-422 and RS-485 control stands as an alternative to NDI
• Lightning-quick 30x optical zoom and autofocus
• Efficient same-time SDI and IP output
• Benefits from NDI variable bit-rate iFrame codec - 140 Mb/s at 1080p60
• High-end Sony 1/2.8" CMOS backlit 2.13MP image sensor
• Intuitive 120° tilt and 360° pan - with 150°/s preset movement speed
• Ability to encode/decode Full YUV 4:2:2 NDI
• Impressive 120 dB true WDR - 3D positioning
• Optional power via 24 VAC BirdDog BD-A-P24-5 adapter (sold separately)
• PoE via the BirdDog PoE Injector (sold separately)

Expanded BirdDog Eyes A300 IP67 Extreme Weatherproof Full NDI PTZ Camera w/Sony Sensor & SDI (White) (PSU sold separately) Key Features:

Broadcast-Quality Visuals as Standard

The A300 excels in such a range of image-making environments due to its impressive broadcast-quality visuals. The combination of the Sony 1/2.8" CMOS backlit 2.13MP image sensor and the BirdDog custom NDI chip, are further backed up by lightning-fast autofocus and quick-action 30x optical zoom. Therefore, this PTZ system can still capture bright, dynamic, and clear images in even the worst weather conditions. To assist with accurate focusing, the A300 incorporates an intuitive infrared laser with a 500m range to be used in low-light conditions. The NDI chip is capable of 140 Mb/s at 1080p60 - allowing for the BirdDog PTZ system to guarantee high-end imagery whatever the occasion. As well as this, you are granted full access to 360° continuous pan rotation, 120° tilt, and an efficient 150°/s preset movement speed.

NDI Explained

NDI (Network Device Interface) is a variable bit rate iFrame codec, capable of 140 Mb/s at 1080p60. It is also a visually lossless connection, which is quite rare for PTZ camera systems as they stereotypically take from security cameras with NDI|HX - a compressed, long-GOP, H.264 variant reaching 12Mb/s at 1080p60. To simplify, this means that you are provided with broadcast-quality visuals from this high-end IP67 Extreme Weatherproof PTZ system. The A300 is further capable of simultaneous NDI and SDI outputs for live recording within a full NDI workflow. This makes the A300 a truly futureproof PTZ camera, as you can still utilise an SDI workflow controlled via RS422 or RS485 - before converting to NDI when you are ready. The A200 is also compatible with PELCO-D and VISCA protocols, as well as having the ability to encode and decode Full YUV 4:2:2 NDI.

Ready for the Elements

When securely properly, this PTZ camera system can withstand a category 4 hurricane, 134mph wind-speeds, and -40°C temperatures. As one of the most extreme, hard-wearing, and durable PTZ cameras within BirdDog's extended range, the A300 promises to produce high-quality imagery whatever the weather. This is because of its IP67 weatherproof, corrosion-resistant, and nitrogen-filled (fog-proof) exterior housing. With an in-built rain wiper, you can rely on your BirdDog PTZ system to follow fast-paced sporting events, for permanent instillation outside, and the A300 even has the ability to work in pretty much any environment on the planet - constructed for inverted mounting via compatible mounts (see below). You can easily and efficiently mount your A300 PTZ system in areas where it would not be viable for a camera operator to stand (especially in extreme weather) - gaining a wider view of the action. By doing so, it means that you can record and even live-stream games, events, and more at a professional level as seen on TV.

BirdDog Comms Lite

The A300 comes equipped with BirdDog Comms Lite audio intercom software. This supports up to four BirdDog devices, and is a Windows-compatible application that offers key features to include auto-detect NDI sources, mute camera operator, director push to talk, monitor camera audio, and shortcut to Web console. If you require a more advanced/complete version of Comms Lite, an upgrade is available (optional). Further to this, you are granted full access to BirdDog Central software, which aids you in decoding NDI back to HDMI or SDI.

World-Class Pairing with the PTZ Keyboard

The BirdDog PTZ Keyboard controller pairs perfectly with the A300. You are granted full control of your camera's functions remotely, with the controller having the capacity to control up to 255 PTZ cameras on a single network. That's right, 225. It can even scale to match the most complex installations, controlling the P200 over either NDI or by RS422 / RS232 when utilising SDI mode.

What's in the box?

• 1 x BirdDog Eyes A300 IP67 Extreme Weatherproof Full NDI PTZ
• 1 x Set of screws
• 1 x Limited 1-Year Warranty

BirdDog Eyes A300 IP67 Extreme Weatherproof Full NDI PTZ Product Video:

FAQs:

What is a PTZ camera?

PTZ (Pan, Tilt, Zoom) cameras are great for monitoring/capturing large areas where it would not be viable for someone to be operating the camera. This includes remote studio set-ups, reality TV, concerts, places of worship, sporting events, and theatre productions.

Is the BirdDog Eyes A300 capable of optical flipping?

This device has been constructed to suit being mounted upside down, with the image being vertically flipped by the A300.

Does the A300 have two optical lenses?

It may seem like this PTZ camera has two lenses, but the second is actually a high-powered infrared laser with a 500m range. This is used to guarantee accurate focusing in low-light conditions.

Are additional purchases required to power the A300 PTZ camera system?

PSU stands for Power Supply Unit, which is sold separately. The two key options available are the BirdDog Power adaptor 24VAC 5A for A200 / A300 and the BirdDog 97W PoE Power Injector for A200 / A300.

Is this compatible with the BirdDog PTZ Keyboard controller?

The A300 is compatible with the intuitiveBirdDog PTZ Keyboard controller.

Which of the available mounts are compatible with the BirdDog Eyes A300?

The following mounts are supported by the A300 PTZ camera system:

• BirdDog A300 Wall Mounting Kit
• BirdDog A300 Ceiling Mounting Kit
• BirdDog Pole Mount Adapter for A200 / A300
• BirdDog Corner Mount Adapter for A200 / A300
