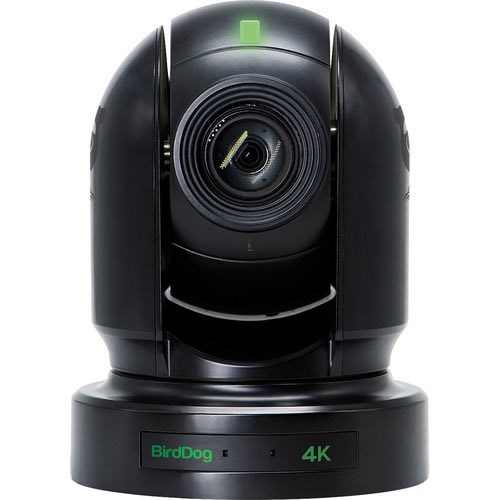

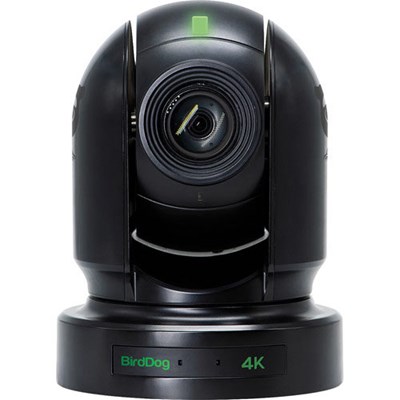

BirdDog P400 Black 4K 10-Bit Full NDI PTZ

The BirdDog P400 is a wholly versatile PTZ camera that can provide up to 4K30/1080p60 NDI/IP video thanks to its 1/2.5" 8.5MP Sony CMOS Backlit Sensor. This powerful imaging sensor would be nothing without the P400's flexible optical system which is equipped with 20x optical, 12x digital zoom and a further 30x superzoom in 4K and 40x superzoom in 1080p. The versatile doesn't stop there - the P400 is rich with connectivity options including simultaneous NDI, 6G-SDI port and HDMI active output. Additionally, you're afforded intuitive remote control of your PTZ via IR, RS-232/422485, VISCA or IP Control. As with any BirdDog PTZ, you're able to make smooth and precise movements thanks to advanced robotics. These robotics will further help you to capture professional-level video that is suitable for a wide range of applications.

BirdDog P400 4K 10-Bit Full NDI PTZ Key Features:

• Offers crisp and smooth 4K NDI Video in 4:2:0 or 4:2:2
• Image capture via 1/2.5" 8.5MP Sony CMOS Backlit Sensor
• Video options offer up to 4K30/1080p60 NDI/IP Video
• Super-versatile simultaneous HDMI, 6G-SDI & NDI Output
• Flexible 20x optical & 12x digital zoom with f/2 to 3.8 aperture
• A further 30x superzoom in 4K and 40x superzoom in 1080p
• Intuitive IR, RS-232/422485, VISCA & IP Control of your PTZ
• Offers the option to alter Black Levels/Colour Matrix/WDR
• Super-useful Image Stabilisation provides stable footage
• Genlock allows you to control multiple PTZs at once
• A Tally Light will let your crew know the camera is live
• Precise and smooth robotic control of PTZ
• Power options include either 12 VDC or PoE
• Available in either Black or White

Expanded BirdDog P400 4K 10-Bit Full NDI PTZ Key Features:

It's What's Inside That Counts

The BirdDog P400 is able to provide consistently high-quality and professional video footage thanks to its 1/2.5" 8.5MP Sony CMOS Backlit Sensor. It's this sensor and accompanying technology that offers crisp and smooth video capture up to 4K30/1080p60 NDI/IP Video. The fact that the P400 is a Full NDI camera means that it benefits from variable bit rates and an I-Frame codec that offers 140Mbits at 1080p60, as well as supporting each and every standard frame rate including 29.97.

In addition to the impressive video are the P400's optical structure and capabilities. The lens itself features a flexible 20x optical which is accompanied by a 12x digital zoom. You then have access to a further 30x SRZ (Super Resolution Zoom) in 4K and 40x SRZ in 1080p HD. Together, this provides you with a huge range for any production where you need to get closer to your subject without sacrificing image quality. As well as this, The P400 is equipped with a powerful image stabiliser which further increases the overall video quality.

Complete Control

The P400 is afforded a range of remote control options including NDI, VISCA over IP, RS-422/RS-232 options in SDI, and an included IR controller. There's also the option to use the separately-sold BirdDog PTZ Keyboard controller which you can use to control up to 255 cameras on a single network. The setup of the P400 is easy too; catering to almost any workflow, the P400 wide range of connectivity options including simultaneous NDI, 6G-SDI port and HDMI active output.

When it comes to camera movement, like all BirdDog PTZ cameras, the P400 features precision and super-sensitive robotics that make for smooth and fluid movements. The advanced robotics allows you to effortlessly pan and tilt for dramatic panning shots. As important as fluid movement is, the P400 offers important colour and gamma settings. You have enhanced control over colour with user-selectable gamma settings and black gamma adjustment.

Free BirdDog Software Tools

BirdDog offer a range of free BirdDog software that is designed to help you optimise the operation of your PTZ. BirdDog Central Pro is used for centralised NDI distribution, Comms Pro allows you to use NDI for instant comms systems, Multi-View for custom NDI multiview, and the Cloud for running your NDI production direct over the internet. These software tools are free to use and should be utilised for enhanced productivity and operation.

What's in the box?

• 1 x BirdDog P400 4K 10-Bit Full NDI PTZ
• 1 x IR Remote Controller
• 1 x Power Adapter with Power Cord
• 1 x Bag of Screws
• 1 x RJ45 to RS-232 Extension Cable
• 1 x RJ45 to RS-422 Extension Cable
• 1 x Limited 1-Year Warranty

FAQs:

What's the difference between this and the BirdDog P4K?

Amongst a range of minor differences, the main differences between the BirdDog P4K and the P400 are the the zoom capabilities. Whilst the P4K offers a 12x optical zoom, 18x digital zoon in 4K and 24x in FHD, the P400 offers a 20x optical zoom, 12x digital zoom, 30x SPZ in 4K and 40x SPZ in 1080p HD.

Is it worth using this with the BirdDog PTZ Keyboard?

BirdDog PTZ Keyboard controller pairs perfectly with the P400 granting you full control of your camera's functions remotely, with the controller having the capacity to control up to 255 PTZ cameras on a single network. That's right, 225. It can even scale to match the most complex installations, controlling the P400 over either NDI or by RS422 / RS232 when utilising SDI mode.

What is a PTZ camera?

PTZ cameras are cameras that are mounted to a surface and offer pan-tilt-zoom options. They're capable of remote directional and zoom control meaning you have enhanced control of the view range that the specific camera offers.

Who are PTZ cameras aimed at? What are they suitable for?

PTZ systems are usually used in Outside Broadcast, remote Studio set-ups, reality TV, House of Worship set-ups, Concerts and Theatre. Basically anywhere where multiple angles are needed but aren't practical to have an operator at each camera.
