Product Code: 3242150

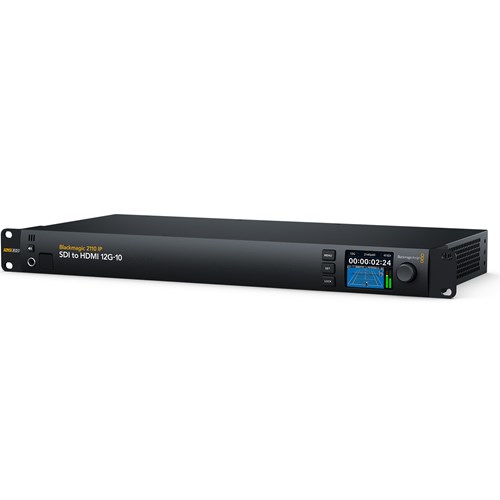

The Blackmagic 2110 IP SDI to HDMI 12G-10 converter allows the conversion of 2110 IP or 12G-SDI video to HDMI across SD, HD, and Ultra HD standards. It supports 3D LUTs for precise colour calibration and offers 10 XLR analogue audio outputs, ideal for surround sound setups. With adjustable volume, delay, and AV sync, it's perfect for critical colour grading and high-end audio visual applications.
Blackmagic 2110 IP SDI to HDMI 12G-10 Key Features:
- Converts 2110 IP or 12G-SDI video to HDMI in SD, HD, and Ultra HD standards
- Supports 3D LUTs for accurate colour calibration of HDMI displays
- Includes 10 XLR analogue audio outputs for surround sound setups
- Adjustable audio levels for all XLR outputs
- Customisable audio delay for perfect AV sync
- Features front panel LCD for status monitoring
- Equipped with speaker and headphone sockets for audio monitoring
- Supports variable gain and delay for precise AV sync
- Can be rack-mounted for space-saving installation
- Designed for integration into SMPTE-2110 IP broadcast systems
- Compatible with live production switchers, disk recorders, and streaming processors
- Provides a reference output that can lock to an external PTP clock
- Ideal for use in grading suites and high-end monitoring environments
- Integrates SDI equipment into 2110 IP workflows with minimal cost
- Supports both stereo and surround sound audio monitoring
What’s in the box?
- 1 x Blackmagic 2110 IP SDI to HDMI 12G-10
FAQs:
What is the difference between the Blackmagic 2110 IP SDI to HDMI 12G and the 2110 IP SDI to HDMI 12G-10?
The main difference between the Blackmagic 2110 IP SDI to HDMI 12G and the 2110 IP SDI to HDMI 12G-10 is the number of XLR analogue audio outputs. The 2110 IP SDI to HDMI 12G model offers two channels, while the 12G-10 model provides 10 channels, ideal for surround sound setups. The 12G-10 also includes more advanced audio controls, such as remote volume adjustment and customisable delays for audio sync across multiple speakers.
Is the Blackmagic 2110 IP SDI to HDMI 12G-10 suitable for large-scale installations?
The Blackmagic 2110 IP SDI to HDMI 12G-10 is ideal for larger installations, such as theatres, grading suites, and broadcast facilities. With its 10 XLR analogue outputs, it supports full surround sound setups, and its ability to integrate into IP broadcast systems makes it a reliable solution for high-end, multi-channel audio-visual systems.
Can you adjust the audio levels independently for each XLR output on the Blackmagic 2110 IP SDI to HDMI 12G-10?
The Blackmagic 2110 IP SDI to HDMI 12G-10 allows you to adjust the audio levels for each of the 10 XLR analogue outputs. This feature ensures fine control over the sound mix in multi-speaker setups, with the added benefit of remote volume control for convenience in large installations.
Back to topProduct Specification
| Dimensions | 482 x 227 x 44.2 mm |
| Inputs | 1 x SDI Input, 1 x 10G Ethernet, SMPTE ST 2110 IP Audio: 16 channels embedded input, SDI Audio Inputs: 16 channels embedded audio, HDMI Audio Inputs: 8 channels embedded audio |
| Operating Temperature | 0° C to 40° C (32° - 104°F) |
| Outputs | 1 x SDI Loop Output, 2 x SDI Outputs, 1 x HDMI 2.0 Video Output, SMPTE 2110 Output: 1 x 10G Ethernet, SMPTE ST 2110 IP Audio Outputs: 16 channels embedded, SDI Audio Outputs: 16 channels embedded audio, HDMI Audio Outputs: 8 channels embedded audio, 10 channels of professional balanced analog audio with 3‑pin XLR connectors, 1 x 6.35 mm headphone jack, 1 x USB-C up to 1080p60 |
| Power Input | 1 x IEC C14 socket for AC power, 1 x 4‑pin XLR for +12V DC input for external power supply or battery use |
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Type | Converter |
