Product Code: 1642261

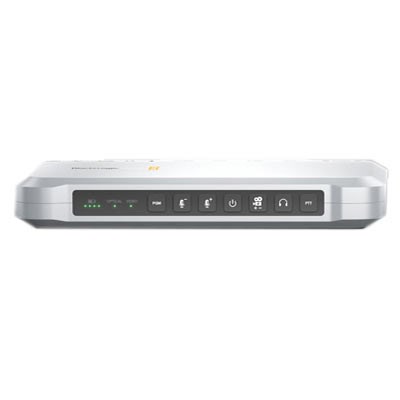

Blackmagic ATEM Camera Converter
Spread cost over 12, 24 or 36 months
>
Pay in 3 interest free payments
>
Blackmagic's ATEM Camera Converter is the ideal live production converter. Convert a camera's HDMI or SDI signal to optical fibre for a faster signal output over distances up to 28 miles, while also sending an optical fibre signal to a switching desk for camera monitoring. The ATEM Camera Converter is powered by an internal battery and features talkback, mic, and tally functionality.
Specifications: Blackmagic ATEM Camera Converter
- Connections:
- SDI Video Input: 1 x 10 bit SD/HD switchable
- SDI Video Output: 1 x 10 bit SD/HD switchable
- HDMI Video Input: 1 x HDMI type A connecter
- HDMI Video Output: 1 x HDMI type A connecter
- Talkback Audio: 1 x 3.5mm stereo connecter for talkback microphone. 1 x 3.5mm stereo connecter for stereo headphones, compatible with iPhone headsets
- Analogue Audio: 2 x balanced 1/4" TRS connecters (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In
- Optical Fibre Video Input: 1 x single mode SD/HD switchable with LC connecter
- Optical Fibre Video Output: 1 x single mode SD/HD switchable with LC connecter
- Optical Fibre Audio Input: 1 x single mode camera audio inputs with LC connecter. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio
- Optical Fibre Audio Output: 1 x single mode camera audio outputs with LC connecter. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio
- Computer Interface: 1 x mini-B type USB 2.0 connecter for initial setup, firmware updates and Converter Utility software control
- Standards:
- SDI Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 2K Format Support: 1 2K DCI 24p, 2K DCI 25p
- HDMI Format Support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 59.94, 60
- SDI Compliance: SMPTE 259M, SMPTE 292M
- Audio Sampling: Television standard sample rate of 48Khz, 24 bit A/D conversion
- Video Sampling: 4:2:2
- Colour Precision: 10-bit
REC 601, REC 709 - Multiple Rate support: SDI and HDMI are switchable between standard definition and high definition
- Software included: Converter Utility
- Operating systems: Mac OS X 10.11 El Capitan, Mac OS Sierra or later, Windows 8.1, Windows 10
- Power supply: 12V power supply included with international socket adapters for all countries
- Dimensions: 203 x 121 x 44mm
- Weight: 754g
Product Specification
| Type | Camera Converter |
